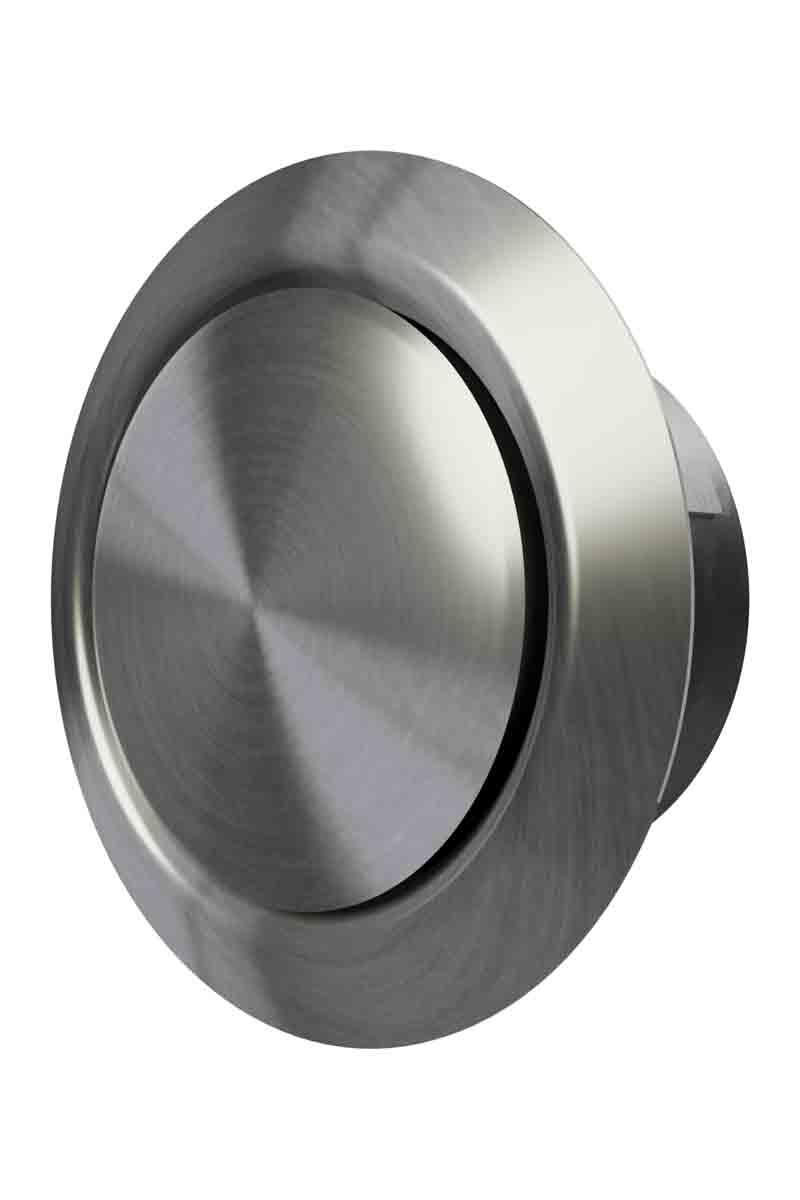

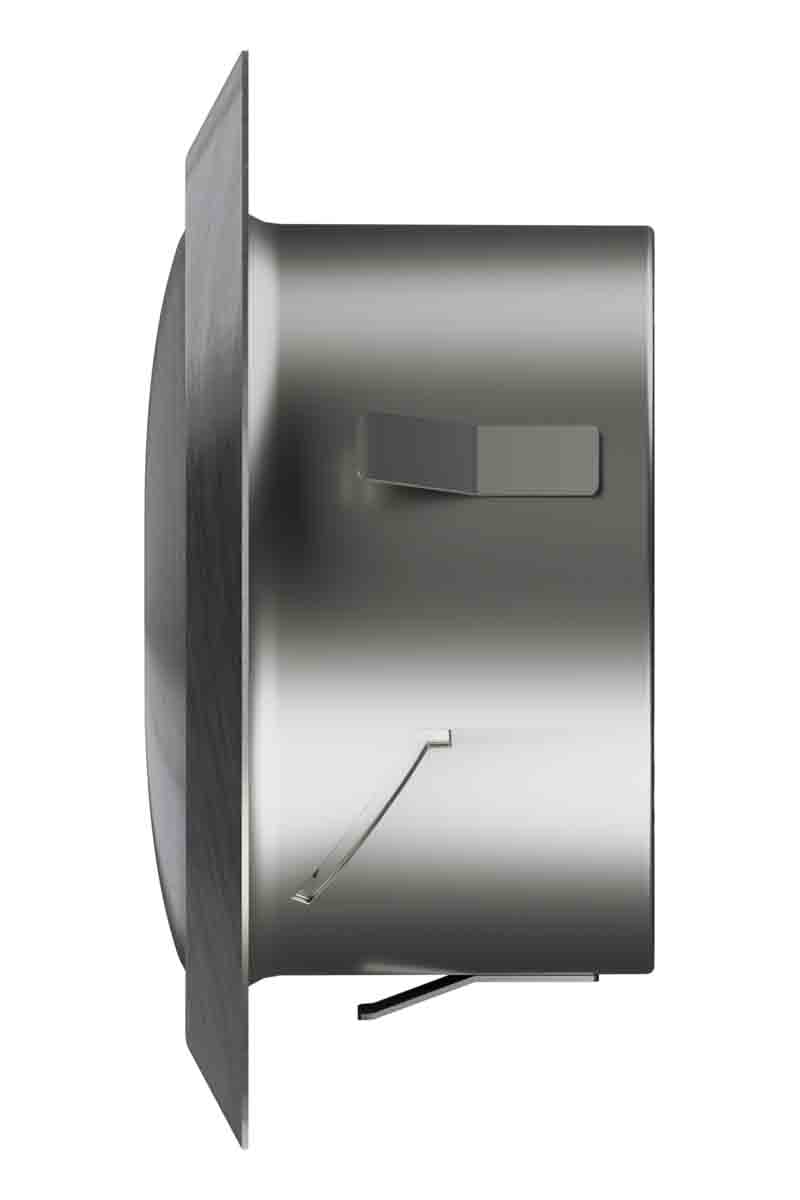

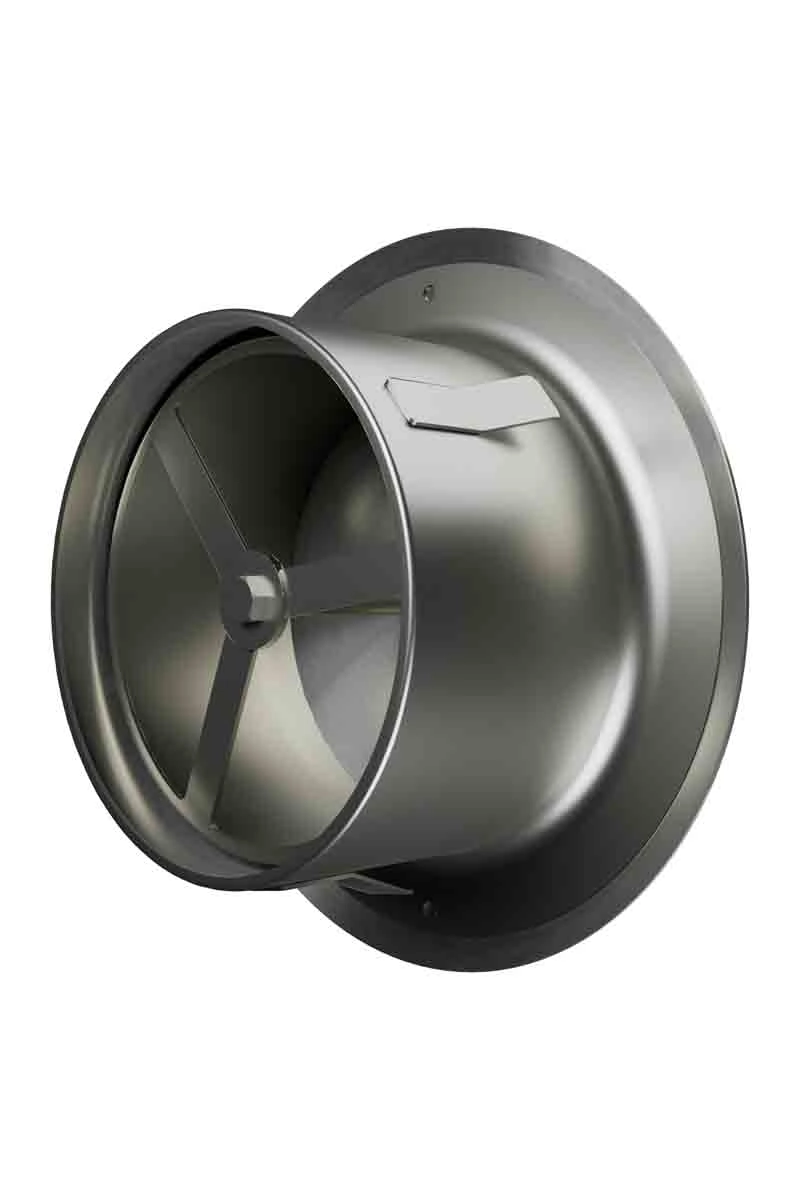

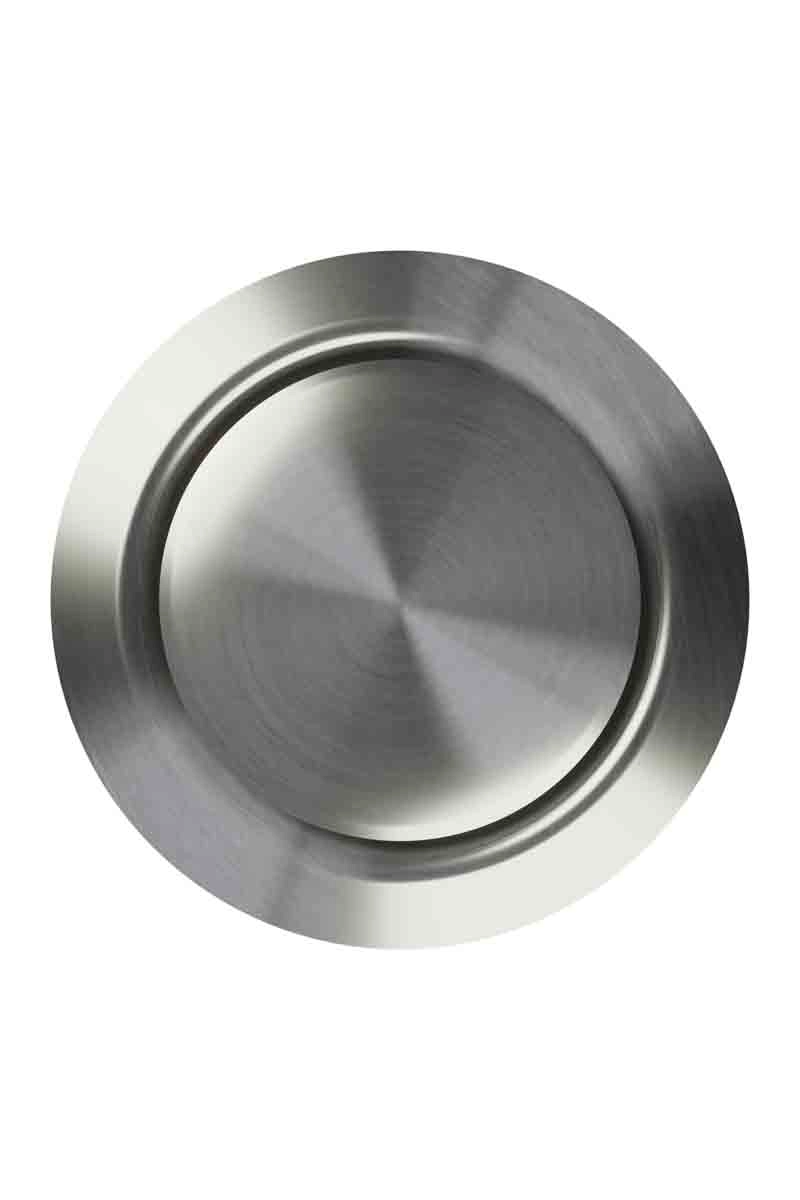

Article: 15DSV

Design features
Stainless steel
Air-flow control
Mounting with screws
Mounting with glue
Mounting with flange
2-year warranty
For supply and exhaust ventilation systems

DSV Anemostat delivers equal effectiveness in both supply and exhaust ventilation systems, maintaining optimal climate control in residential buildings, office complexes, industrial facilities, warehouse spaces.
The well-engineered design ensures reliable, long-term operation of the DSV for years to come.
Construction Advantages:

• Corrosion-proof & durable – Specially engineered material withstands mechanical stress and high-temperature environments (up to 120°C continuous exposure)
• Stainless steel housing – Maintains structural integrity and aesthetic appearance even under heavy-duty operation (AISI 304/316 grade options)
• Precision airflow control – Continuously adjustable ventilation volume for customized room-specific performance
• Tool-free maintenance – Split-body design enables quick cleaning without system disassembly (field-serviceable in <2 mins)
• Fine-tuned regulation – Rotate the center diffuser to achieve exact airflow settings (20°-90° angular adjustment range)
Easy and Convenient Installation:

·        Secure duct connection – Flange-mounted clamping tabs ensure airtight sealing with ventilation ducts

·        Primary fastening – Screw-mounted through pre-drilled flange holes (included M4 stainless steel screws)

  • Article 15DSV
  • Trade mark ERA
  • Material Stainless steel
  • Color Silver
  • Color (decorative) Silver
  • Quantity in transport package 24 pcs

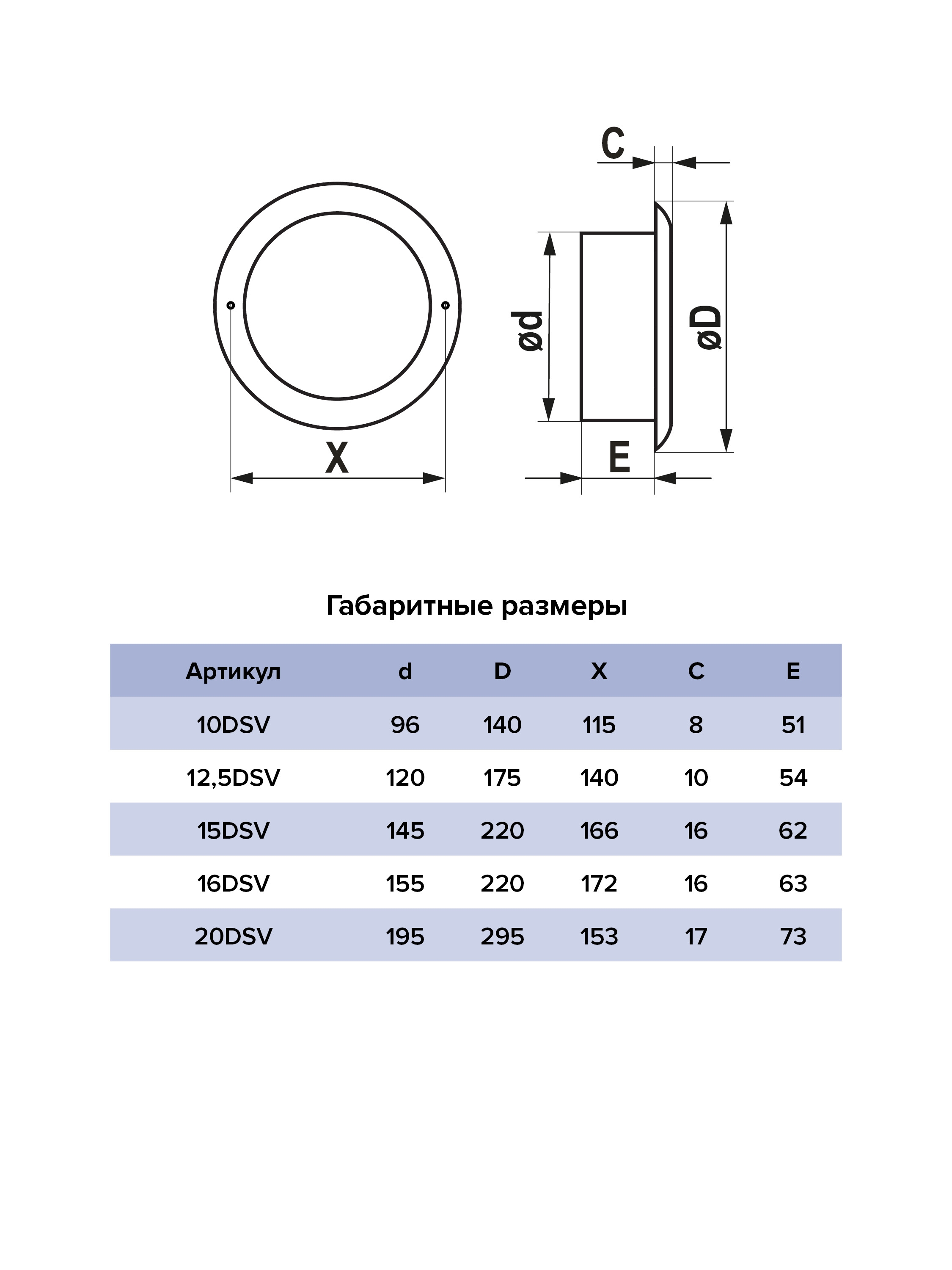

  • Height, mm 220
  • Width, mm 220
  • General depth, mm 78
  • Installation diameter, mm 145
  • Location Wall-ground
  • Principle of ventilation Supply and exhaust
  • Country of origin China
  • Gross weight, kg 0.583
  • Net weight, kg 0.563
  • Flange depth 62
  • Warranty 2 years
