ERA SGR Ceramo concealed mounting ventilation grille 300x200 for tile

Article: 3020SGR Ceramo

Design features
Magnetic front panel
Galvanized steel
Mounting with screws
2-year warranty
Can be decorated with glass, tile or porcelain tile
For supply and exhaust ventilation systems
Concealed mounting

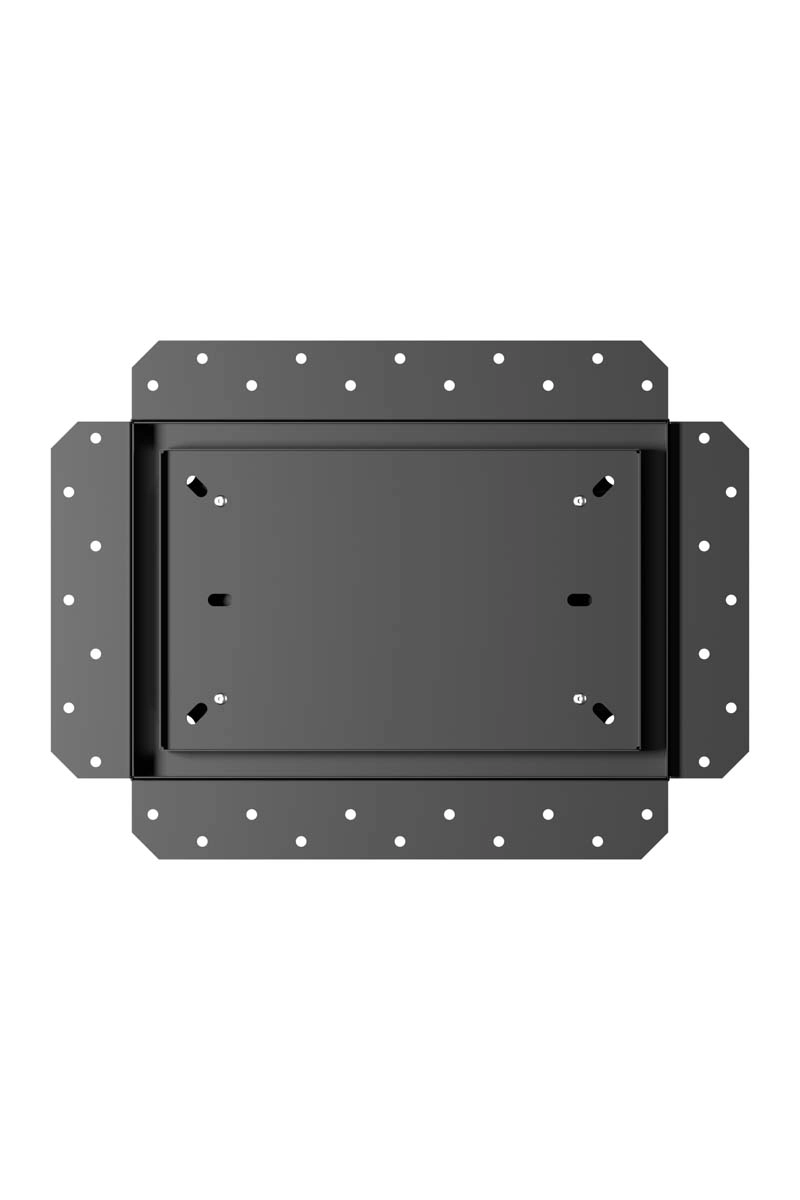

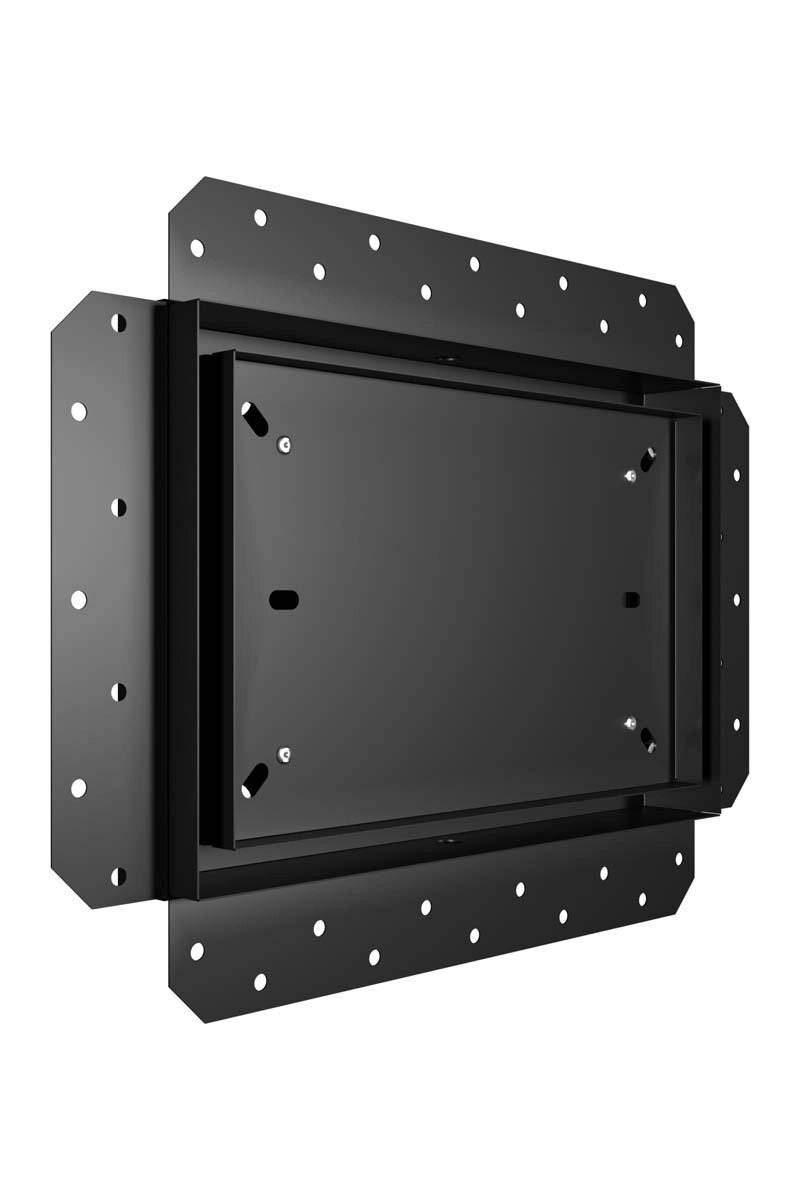

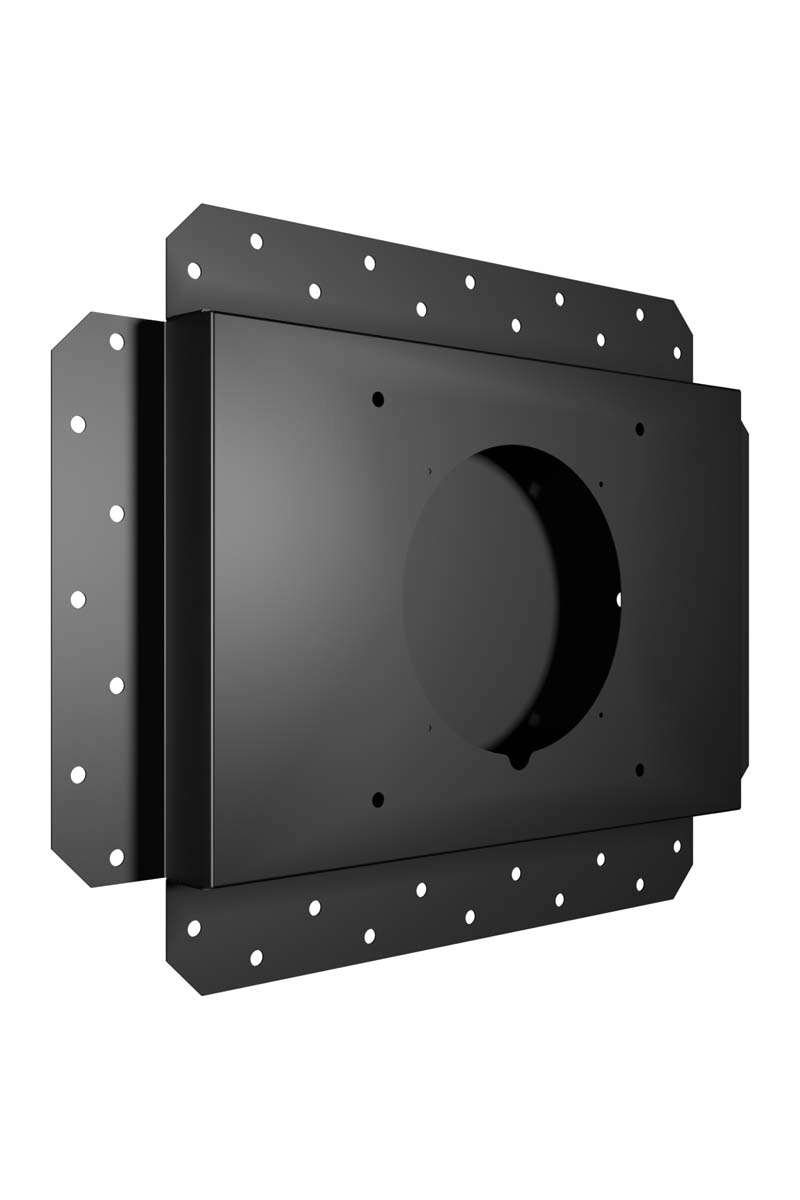

SGR Ceramo concealed ventilation grille is a modern solution for interiors where neat appearance, functionality, and ventilation reliability are important.
The SGR Ceramo design allows the ventilation grille to be integrated directly into the finish layer. The face panel is finished with the same material as the wall (tiles, porcelain stoneware, mosaic, or plasterboard), creating a neat and minimalist appearance.

After final finishing, only a 15 mm perimeter gap remains on the surface, ensuring consistent airflow and efficient ventilation system operation.

The grille is equipped with powerful individually adjustable magnets. Since each magnet is adjusted separately, the grille can be perfectly tuned to align the panel with the wall surface. The mounting claws with magnets allow the panel to be positioned exactly in the center.

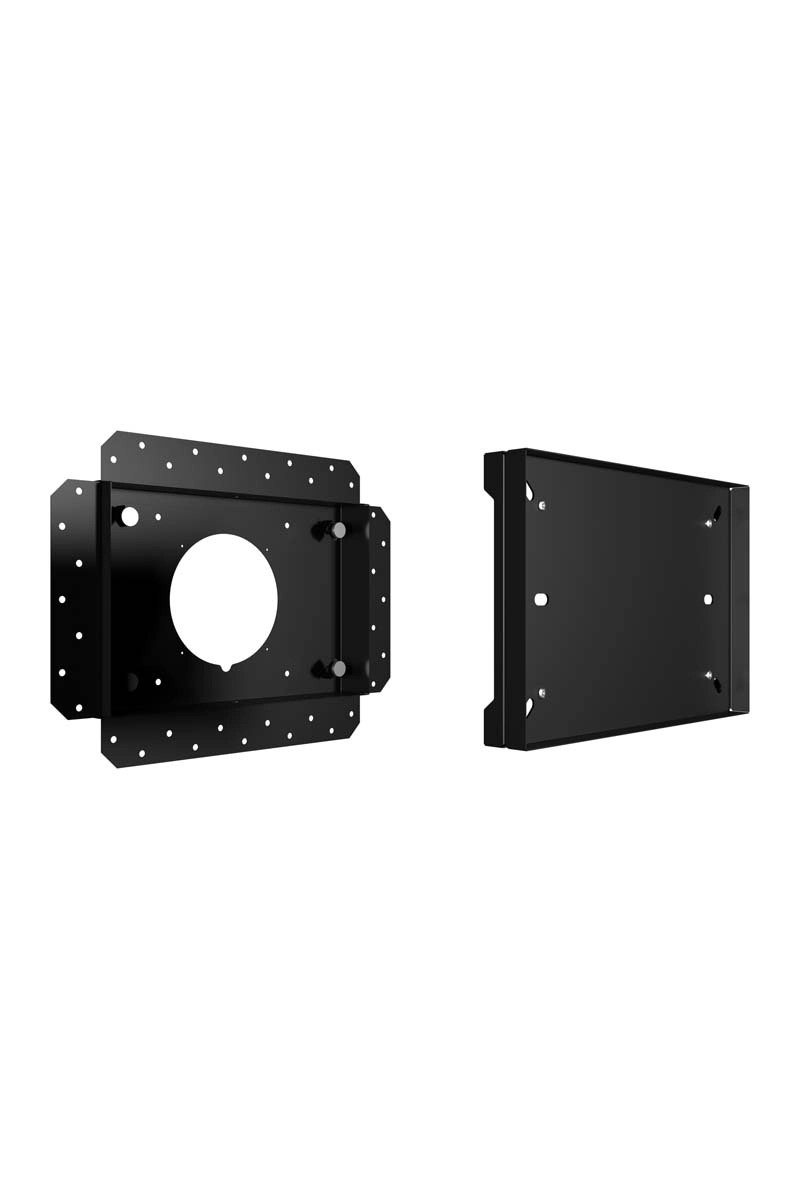

SGR Ceramo features a detachable design that provides quick and convenient access to the ventilation duct for maintenance and cleaning. The panel is easily removed and reinstalled without additional tools.
The housing of the SGR Ceramo ventilation grille is made of galvanized steel, resistant to corrosion and moisture. This guarantees durable and stable operation even in humid rooms.

  • Article 3020SGR Ceramo
  • Trade mark ERA
  • Material Galvanized steel
  • Color Black
  • Color (decorative) Matt black
  • Quantity in transport package 8 pcs

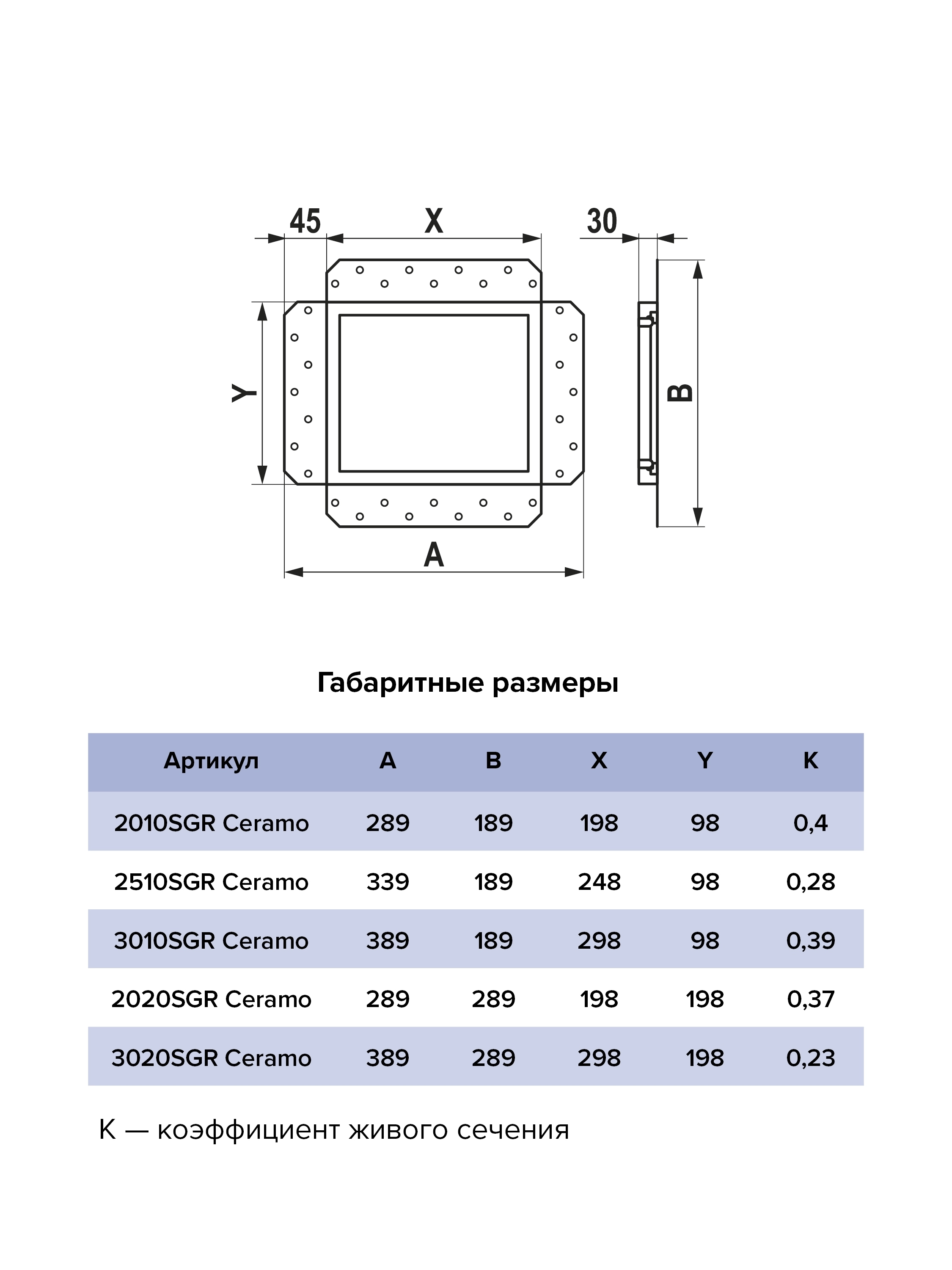

  • Height, mm 289
  • Width, mm 389
  • General depth, mm 45
  • Altitude mounting, mm 200
  • Mounting width, mm 300
  • Rectangular installation section 300x200
  • Location Wall-ground
  • Principle of ventilation Supply and exhaust
  • Detachable design Yes
  • Country of origin Russia
  • Gross weight, kg 1.4
  • Net weight, kg 1.4
  • Warranty 2 years
