Concealed ventilation grille 3020SGR ERA

Article: 3020SGR

Design features
Steel
Mounting with screws
2-year warranty
For supply and exhaust ventilation systems
Concealed mounting

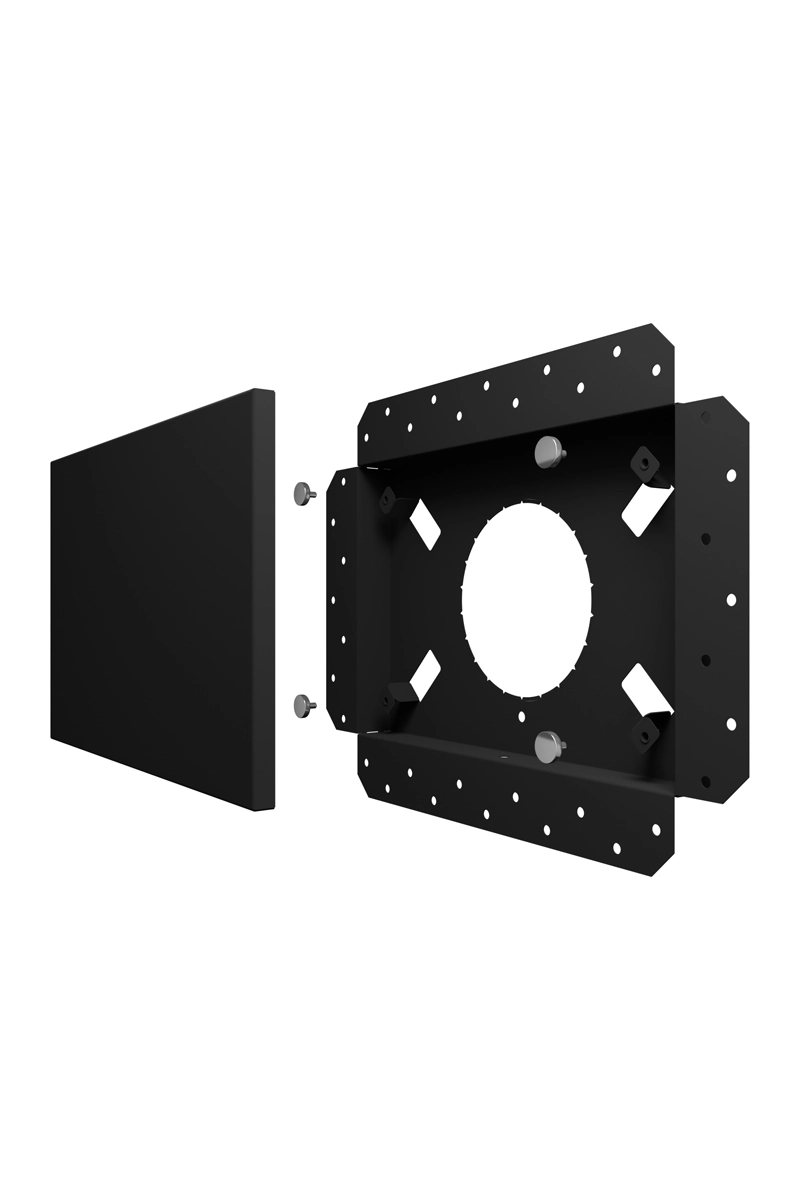

The SGR concealed shadow grille is designed for use in supply and exhaust ventilation systems. It is mounted on ducts and ensures even distribution of airflow. The SGR is suitable for installation in both walls and ceilings. The concealed shadow grille is installed during the rough stage of renovation and seamlessly integrates into the interior, as it can be painted, plastered, wallpapered, or finished with decorative. After finishing, only the visible frame with a thickness of 15 mm remains on the surface, through which ventilation occurs. The removable front panel of the grille is attached to the base using magnets, making access to the ventilation duct easier and simplifying maintenance. Each of the four magnets is adjustable for precise positioning of the front panel. The convenient placement of the mounting feet with magnets allows for easy installation of the panel exactly in the center, ensuring an even gap between the front panel and the base of the grille. Its small depth of 30 mm facilitates installation. The grille is easily installed in limited spaces, such as a non-standard-sized ventilation duct or drywall ceilings. 2-year warranty.
  • Article 3020SGR
  • Trade mark ERA
  • Material Steel
  • Color Black
  • Color (decorative) Matt black
  • Quantity in transport package 25 pcs
  • Height, mm 290
  • Width, mm 390
  • General depth, mm 30
  • Altitude mounting, mm 300
  • Mounting width, mm 200
  • Rectangular installation section 300x200
  • Location Wall-ground
  • Principle of ventilation Supply and exhaust
  • Detachable design Yes
  • Country of origin Russia
  • Gross weight, kg 1.164
  • Net weight, kg 0.972
  • Warranty 2 years
