Ventilation grille SH 55х110 split on magnets D100 ERA

Article: 511SH10

Design features
Polystyrene
Steel
Insect net
Air-flow control
2-year warranty
For supply and exhaust ventilation systems
Safety rope
Сoncealed shadow grill SH used in supply and extract ventilation systems. It is mounted in a stretch ceiling, which makes the grille mounting invisible.
The SH grille can be used for ventilation in bathrooms, toilets, kitchens and other living and office spaces.

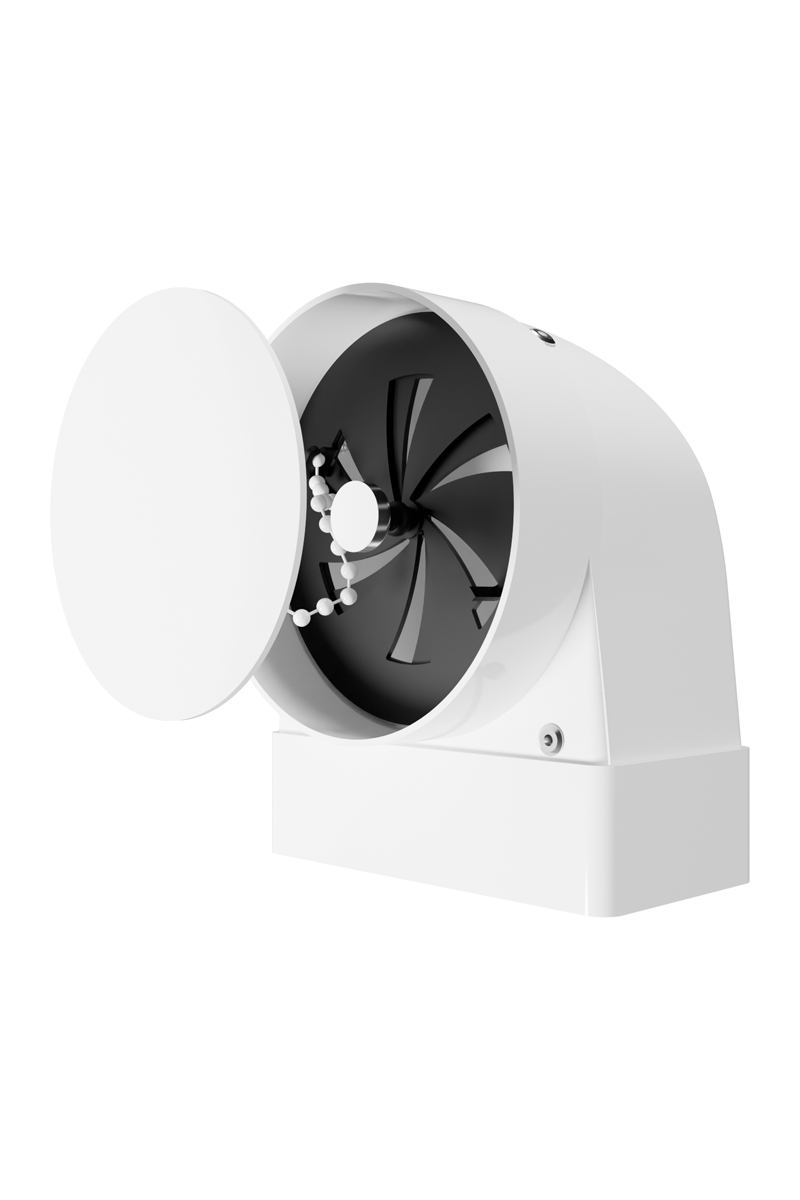

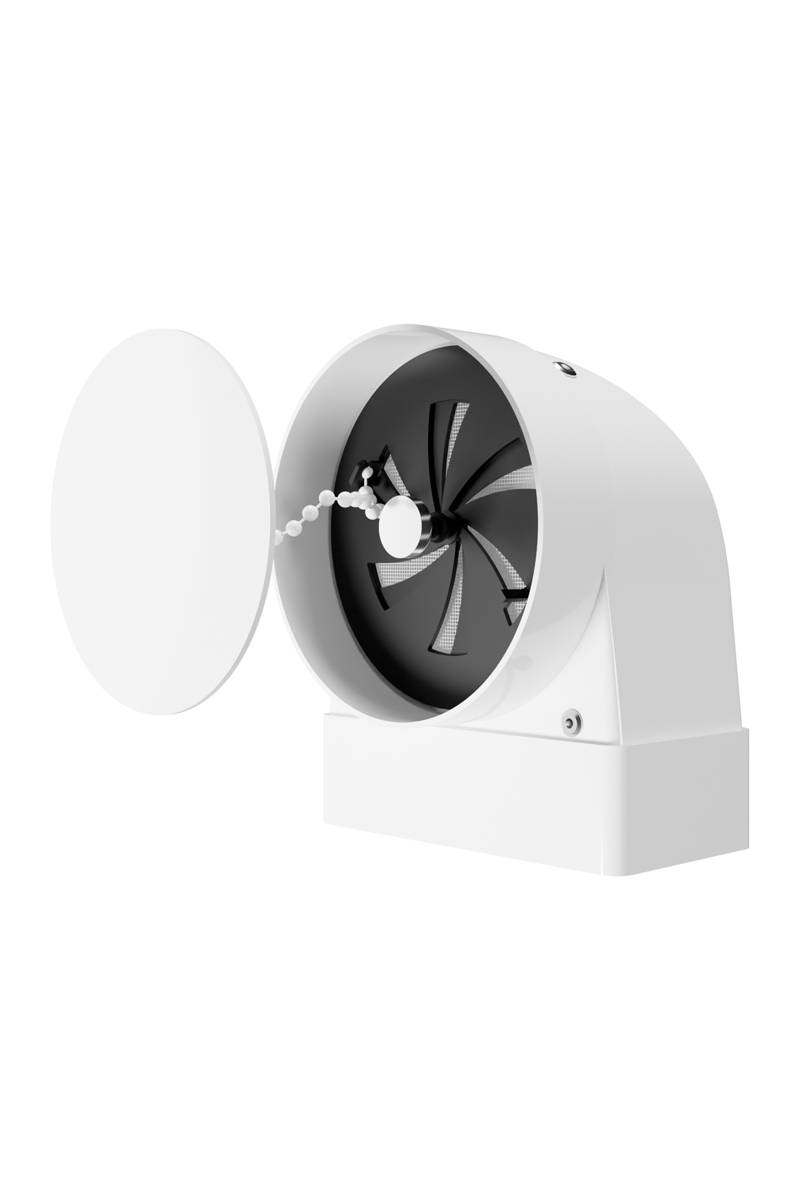

The removable face panel is securely fastened to the enclosure with powerful magnets and additionally secured with a safety cable, which provides a secure design and easy access to the ventilation duct for maintenance.
The grille is made of 1.5 mm thick galvanized steel, which guarantees a sturdy construction and a long service life. The decorative part of the grille is painted with white powder paint with moire silk texture. Due to this, the decorative part of the grille harmonizes with the white matte stretch ceiling fabric, creating a single stylish image.
The metal damper allows you to adjust the air volume, including completely shutting off the airflow. The mosquito net protects the room from insects and dirt from the ventilation duct.

There are 2 types of concealed shadow grill for installation with round (grille models: 10SH, 12,5SH) and rectangular ducts (grille models: 511SH10, 612SH10, 620SH10, 620SH12,5, 620SH16).
SH is completely ready for installation: the kit includes a fixing kit (self-tapping screws).
2-year warranty

  • Article 511SH10
  • Trade mark ERA
  • Material Galvanized steel
  • Color White
  • Color (decorative) White
  • Quantity in transport package 40 pieces
  • Height, mm 135
  • Width, mm 113
  • General depth, mm 80
  • Installation diameter, mm 100
  • Diameter external, mm 100
  • Rectangular installation section 110х55
  • Location Ceiling
  • Principle of ventilation Supply and exhaust
  • Detachable design Yes
  • Country of origin Russia
  • Gross weight, kg 0.301
  • Net weight, kg 0.3
  • Case material Polystyrene
  • Warranty 2 years
