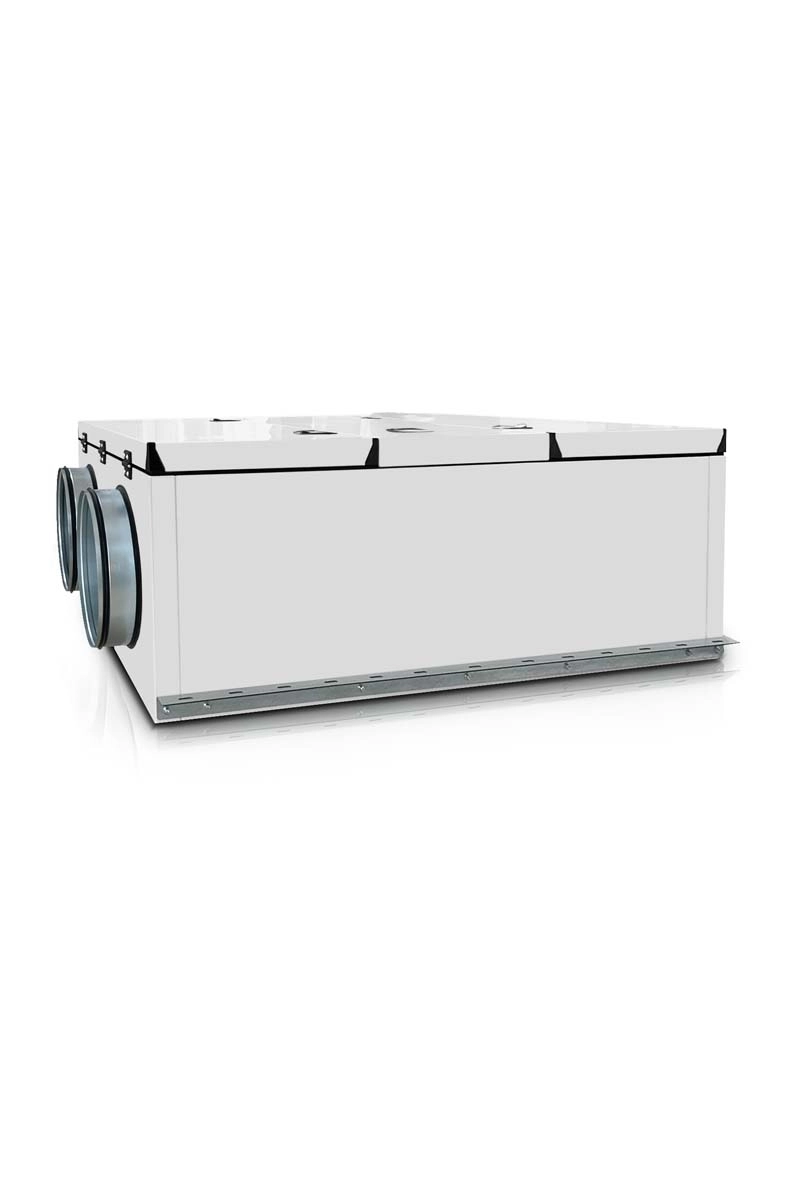

ARIA-R-700-F-R Suspended ERA PRO supply and exhaust unit

Article: ARIA-R-700-F-R

Design features
Galvanized steel
1-year warranty
Two F5 class air filters
Two devices for effective heat recovery
The electric air heater
50 mm wall thickness of the unit
CAV mode

The ARIA supply and exhaust unit provides efficient and balanced air exchange, independent of window opening. Smart units include air purification, heating, and an automatic control system.



Advantages of ARIA units:



— Robust construction

High-quality housing: panel thickness – 50 mm. High-quality housing joint. Enhanced lock design: a non-dropout bracket system allows for easy lock replacement at any time.



— Easy installation

A concealed mounting rail allows for easy unit fixation to the mounting surface. Compact design and a built-in automation system enable quick installation.



— Energy efficiency

High-performance electronically commutated EC motor enables precise and efficient fan control. Delivers high efficiency and optimizes energy consumption.



— High level of thermal and sound insulation

The unit uses high-quality materials with excellent noise absorption properties.

— Built-in automation system

The ventilation unit's automatic control unit is compact and allows for connection and management of additional options.

— Flexible control system

Includes a remote control with a touch LCD display. Connection of up to 10 remote controls is possible, enabling control of all functions of a single system from multiple rooms. Integration with "smart home" systems is available.

— Rotary hear recovery units

Effectively saves heat in winter, reducing heating costs. Protected against frost formation; no preheating is required, and the unit can operate continuously.

— High level of air purification

Each unit has two built-in filters: on the supply and exhaust sides, ensuring the cleanliness of both airflows.

Features of the suspended ARIA-R-F models:

— Suspended models are designed for floor or ceiling mounting.

— Automatic fan speed adjustment mode to maintain constant airflow.

— The unit is equipped with rotary heat recovery units: one in the ARIA-R-300-F model, and two in other models (starting from ARIA-R-500-F).

— Fitted with two F5 filters.

  • Article ARIA-R-700-F-R
  • Trade mark ERA PRO
  • Color White
  • Color (decorative) White
  • Quantity in transport package 1 pcs

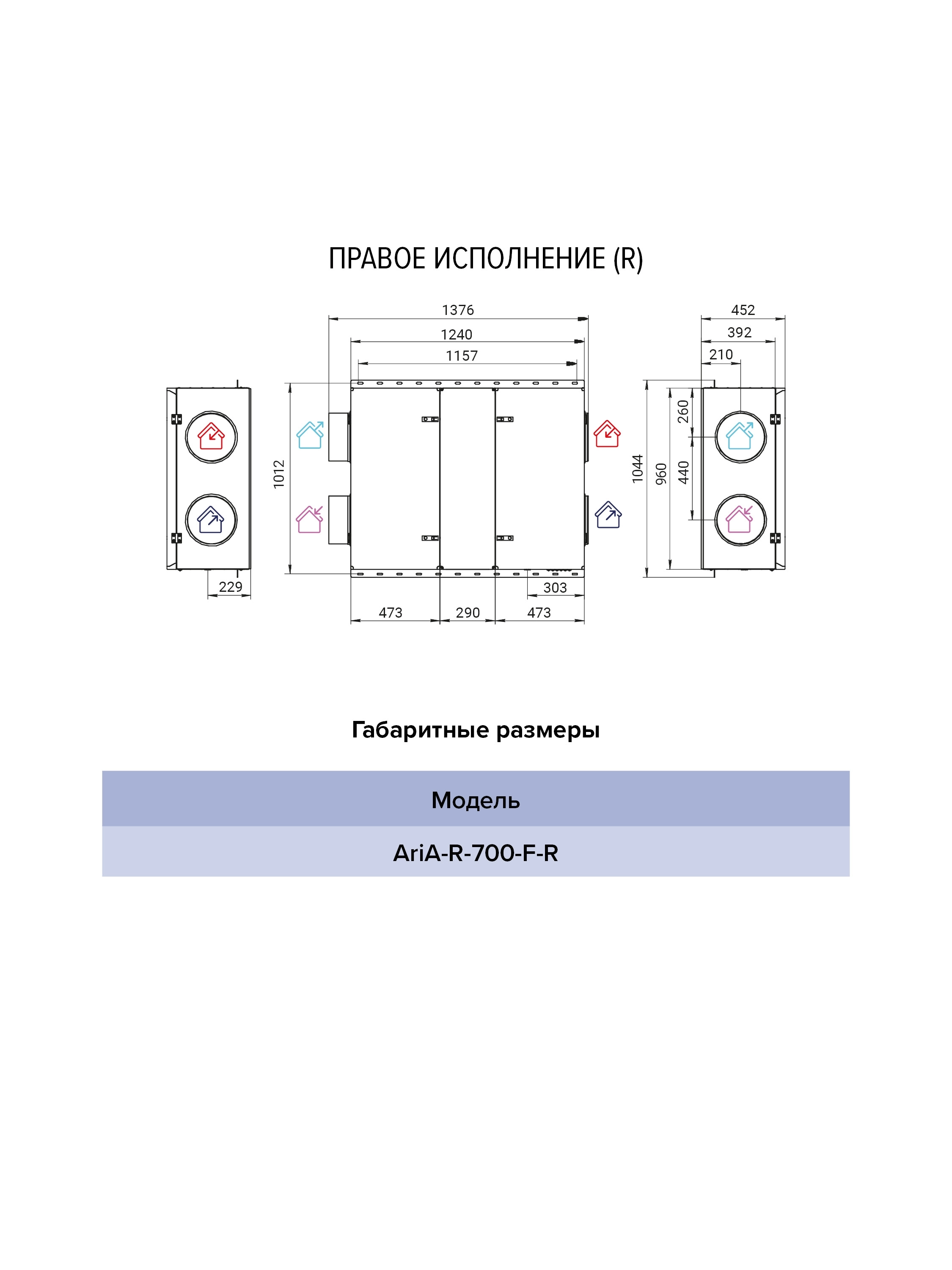

  • Height, mm 1012
  • Width, mm 1376
  • General depth, mm 452

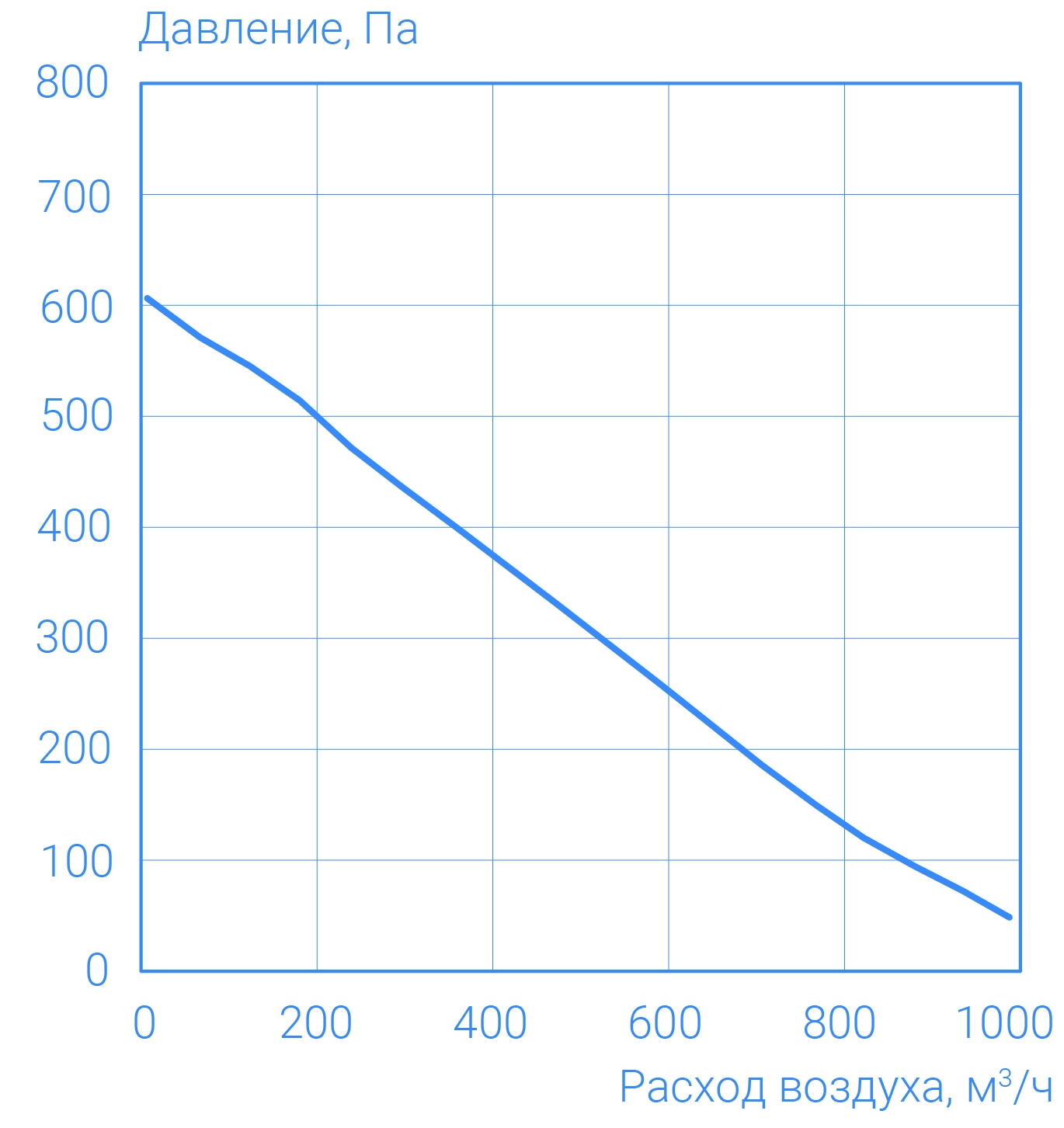

  • Performance, M3 / H 700
  • Noise level, DB (A) 45
  • Power consumption, w 2.34
  • Connection diameter, mm 250
  • Мощность электронагревателя, kW 2
  • Тип установки Горизонтальная
  • Principle of ventilation Supply and exhaust
  • Control Automatic, Mechanical
  • Detachable design No
  • Country of origin Russia
  • Gross weight, kg 116
  • Net weight, kg 116
  • Case material Galvanized steel
  • Warranty 1 year
