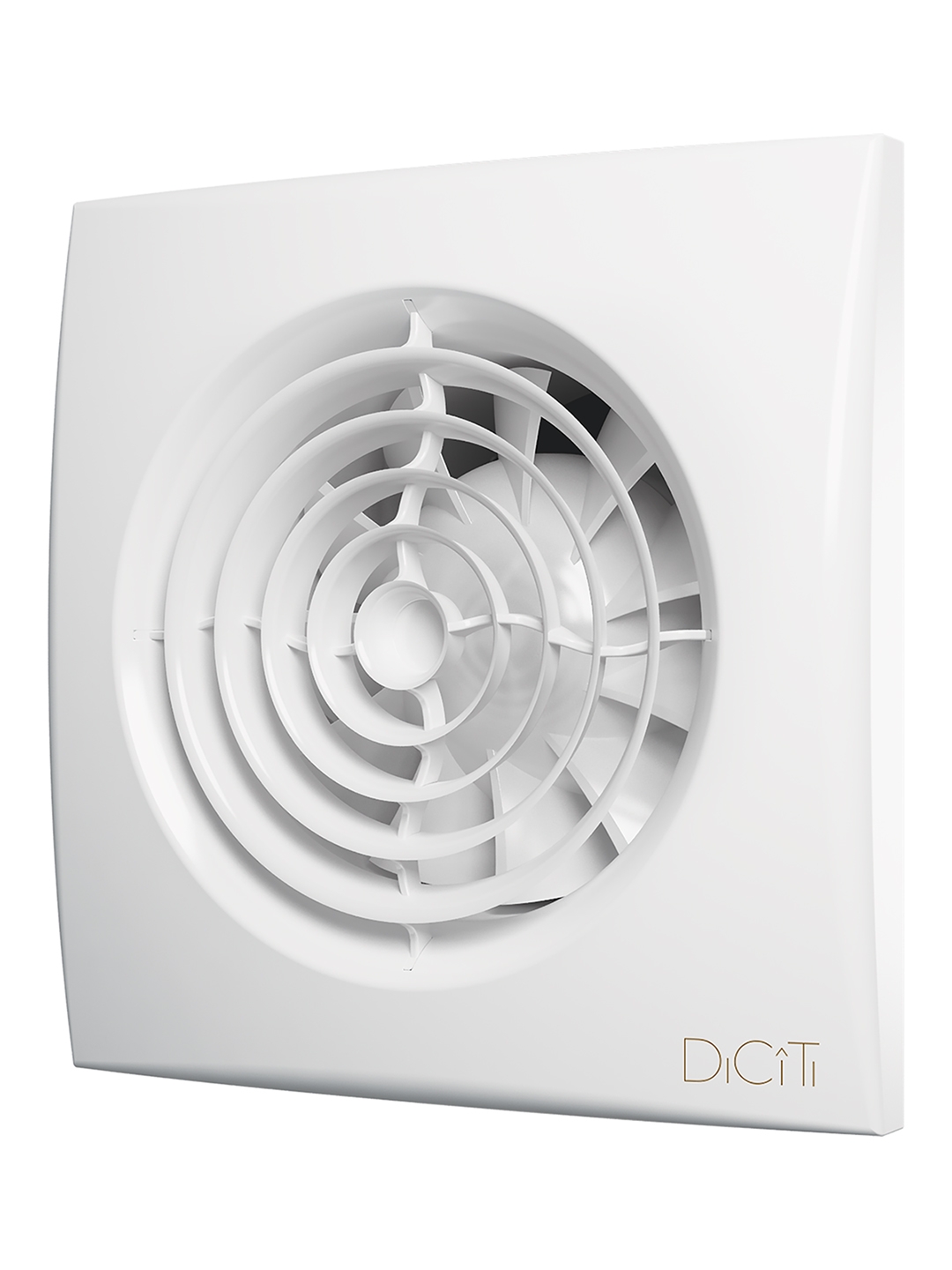

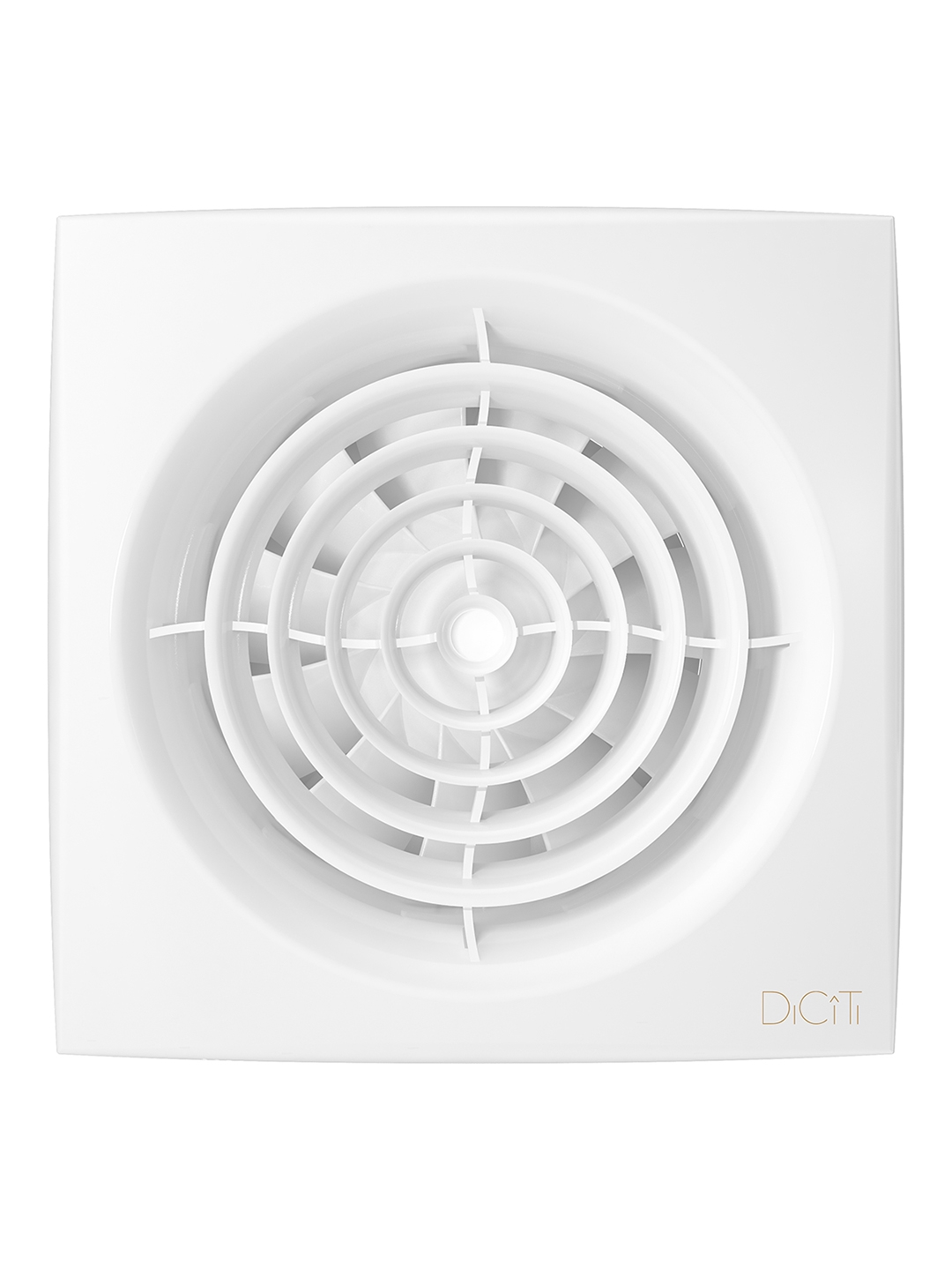

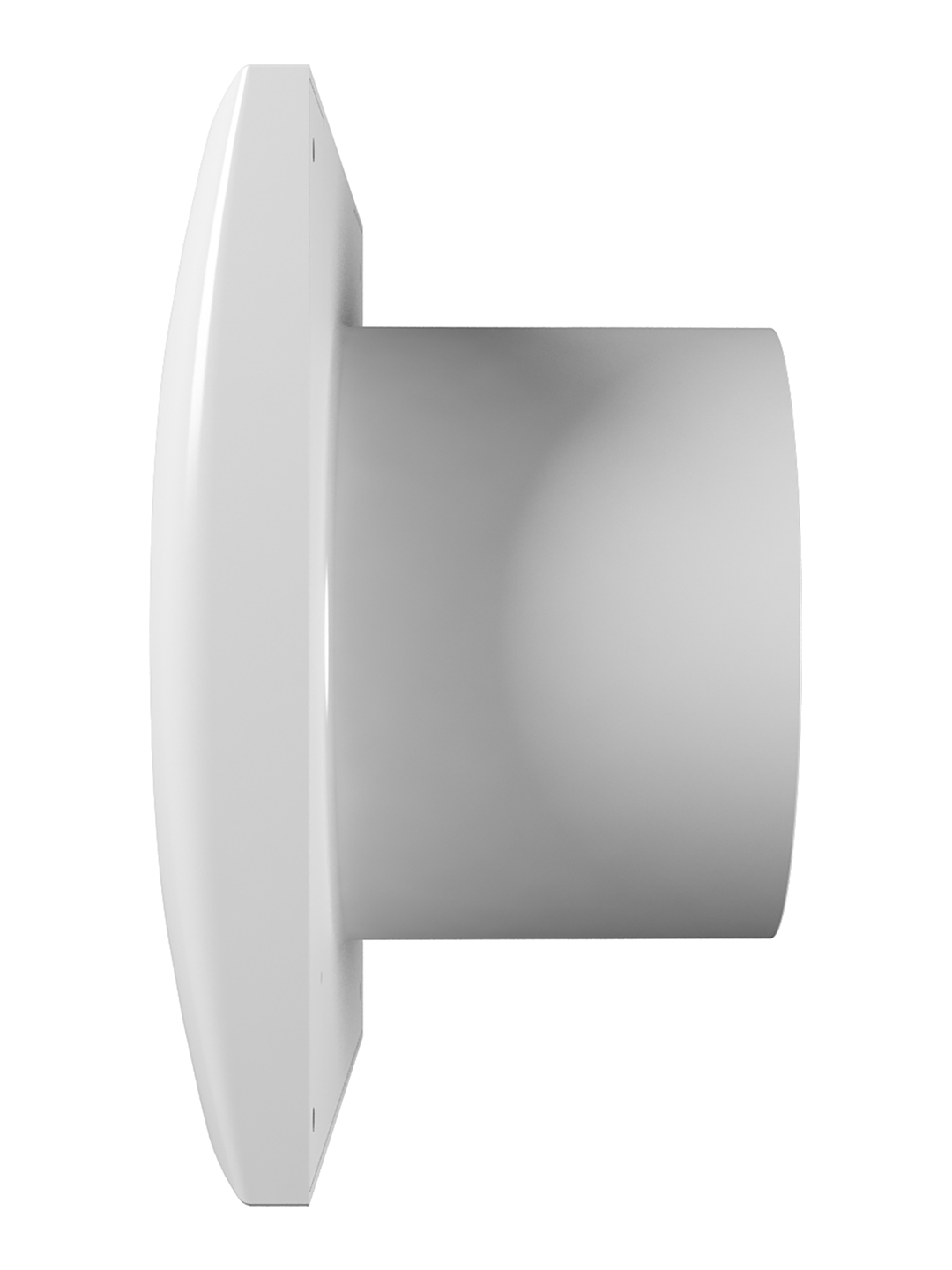

AURA 4C is used for arranging continuous or periodic ventilation in bathrooms, showers, kitchens and other domestic premises.

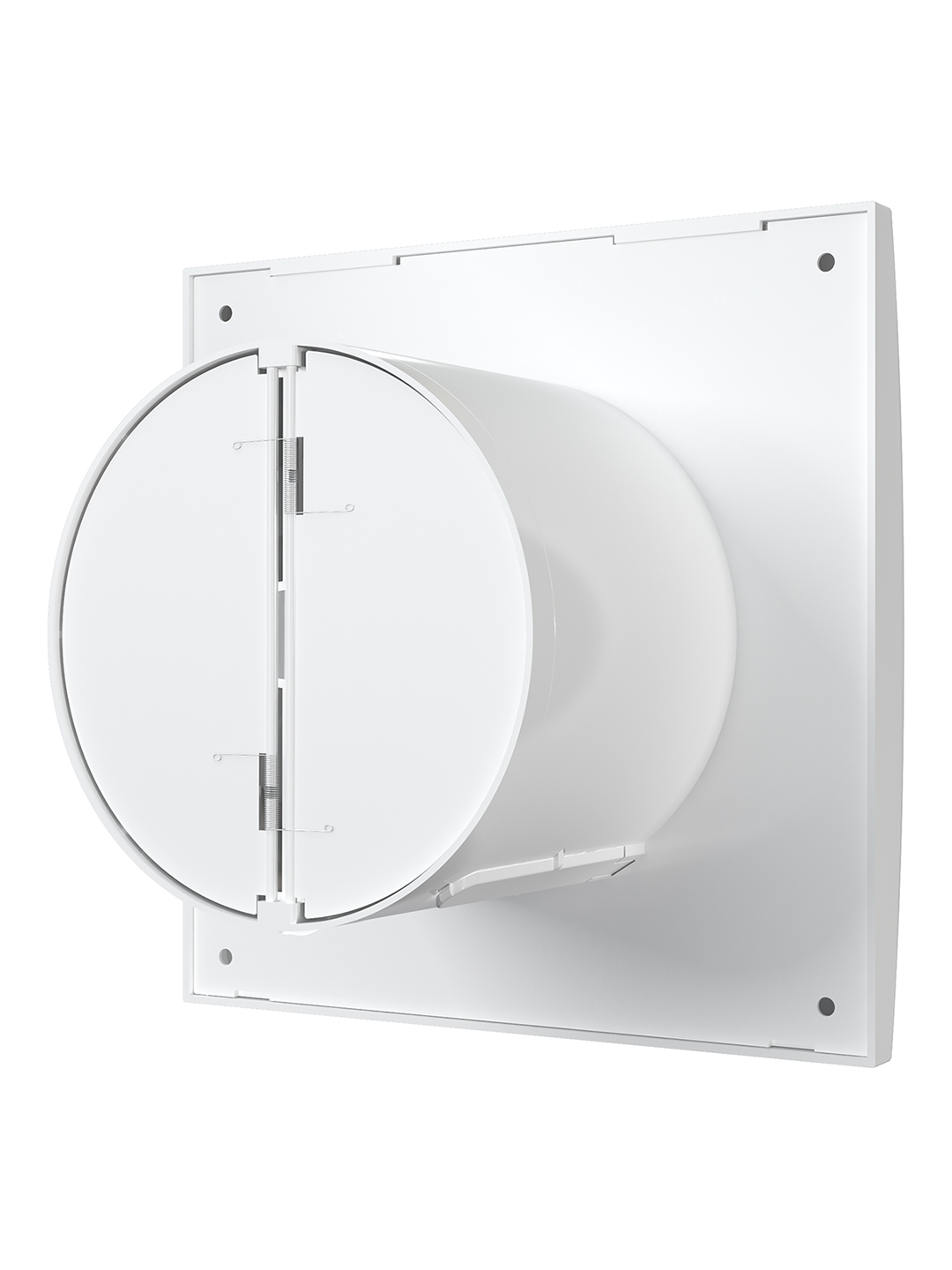

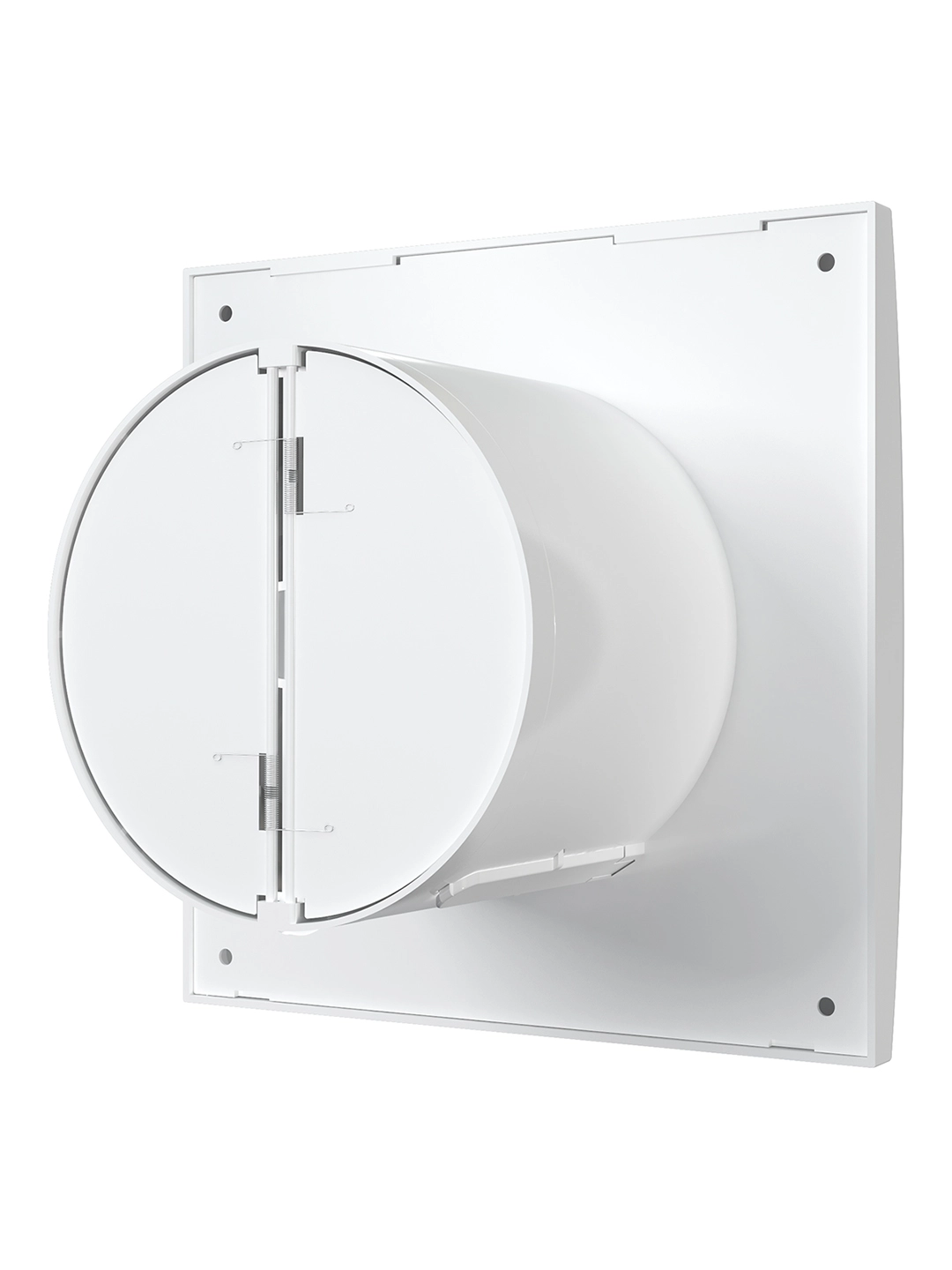

Equipped with a back-draught shutter for blocking the smells and odours from the shaft. The face panel is equipped with a blue LED-indicator lighting up at the fan's actuation. Due to a special design, the device shows better performance along with the low noise level rates. An electric motor with reduced power consumption characteristics and an aerodynamic impeller provide the long service life of the fan model. A ball-bearing motor does not require any extra maintenance and allows to install the fan both vertically and horizontally (after withdrawing the back-draught shutter).
Mounting with screws (included into the kit).
ArticleAURA 4C
Trade markDICITI
MaterialABS plastic
ColorWhite
Color (decorative)White
Protection classIP 24
Quantity in transport package16 pieces

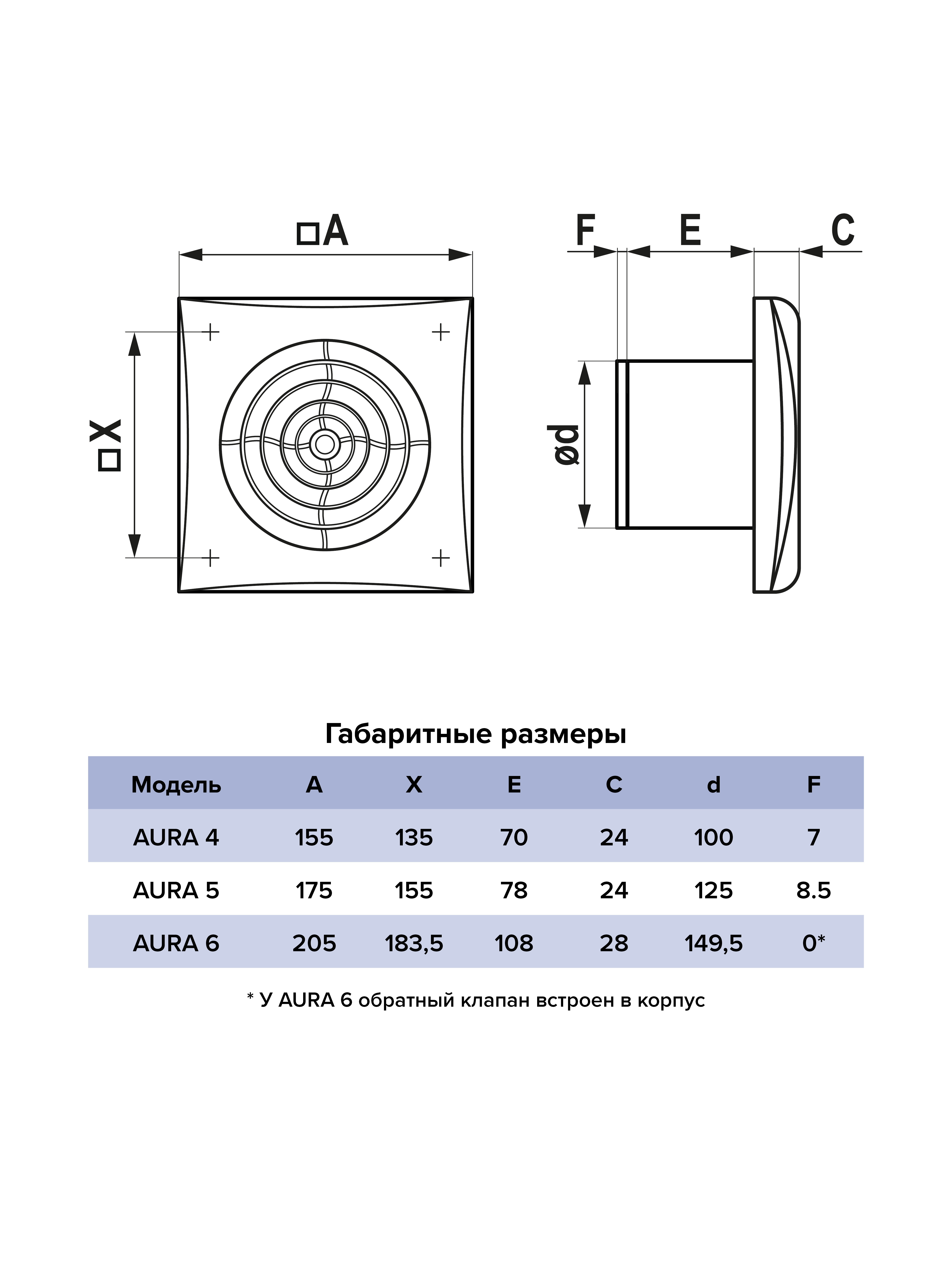

Height, mm155
Width, mm155
General depth, mm101
Altitude mounting, mm135
Mounting width, mm135
Installation diameter, mm100
Diameter external, mm100

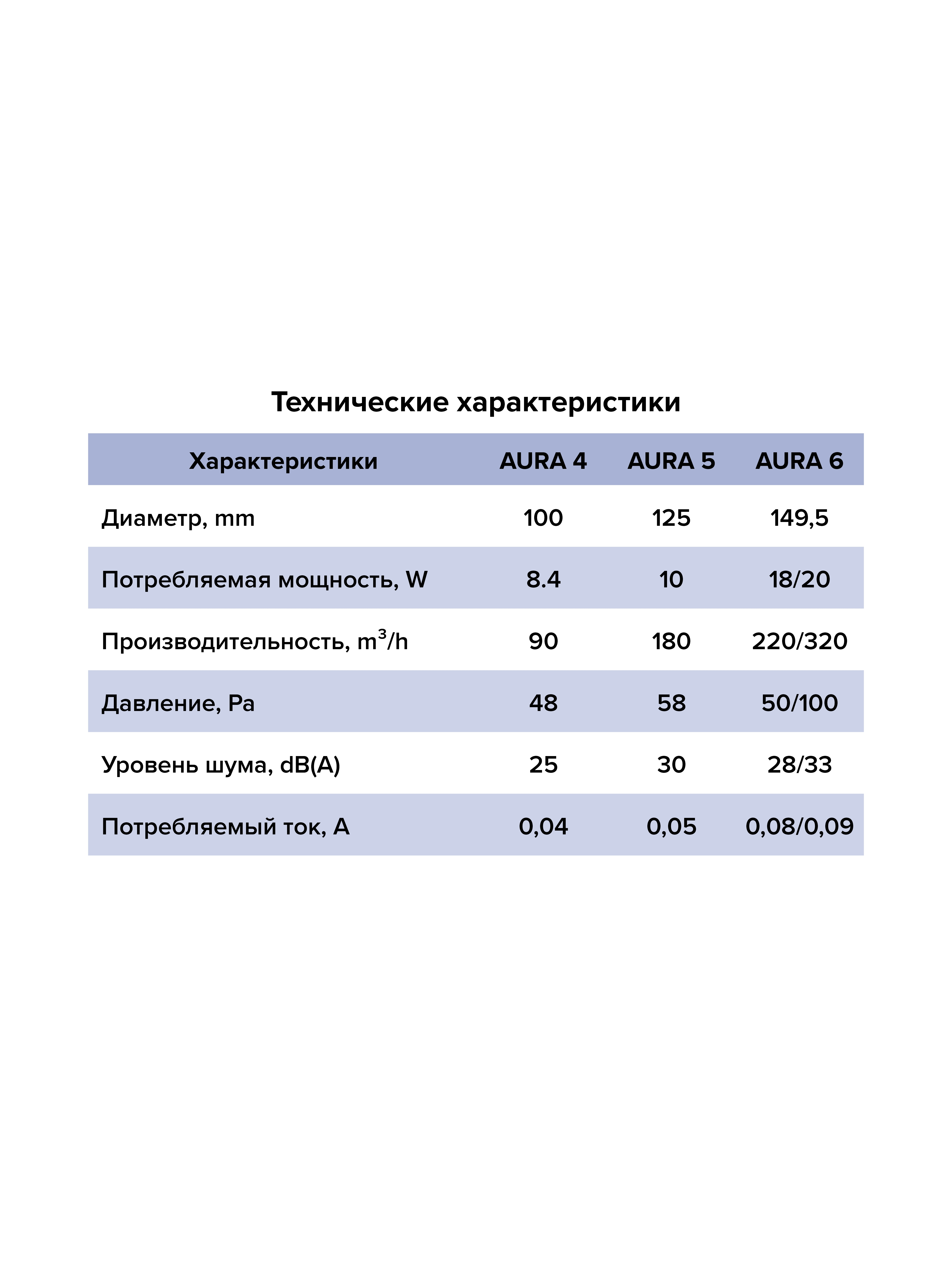

Performance, M3 / H90
Noise level, DB (A)25
Power consumption, w8.4
Pressure, PA48
Voltage, V.220
LocationWall
Working mechanismAxial
Principle of ventilationExhaust
ControlMechanical
Country of originRussia
Gross weight, kg0.6
Net weight, kg0.5
Bezel thickness24
Flange depth70
Check valve depth when closed7
Warranty5 years
CB Test certificate GB 8425 Z Built_In_Partition_Axial fan
