Exhaust fans for wall and ceiling application.
For mounting into ventilation shafts or junction with air ducts.
100, 125 and 150 mm flange diameter.
Low noise ball-bearing motor with an extended service life (up to 40 000 hours of continuous operation).
Reduced power consumption.
Fits for ceiling mounting (back-draught shutter must be removed).
Two-speed fan (AURA 6)
The best performance characteristics among analogues wall and ceiling applied fans by ERA Group (AURA 6)
IP24 Ingress protection rating for electrical equipment.
ArticleAURA 4C Dark gray metal
Trade markDICITI
MaterialABS plastic
ColorDark gray
Color (decorative)Dark gray metal
Protection classIP 24
Quantity in transport package16 pieces

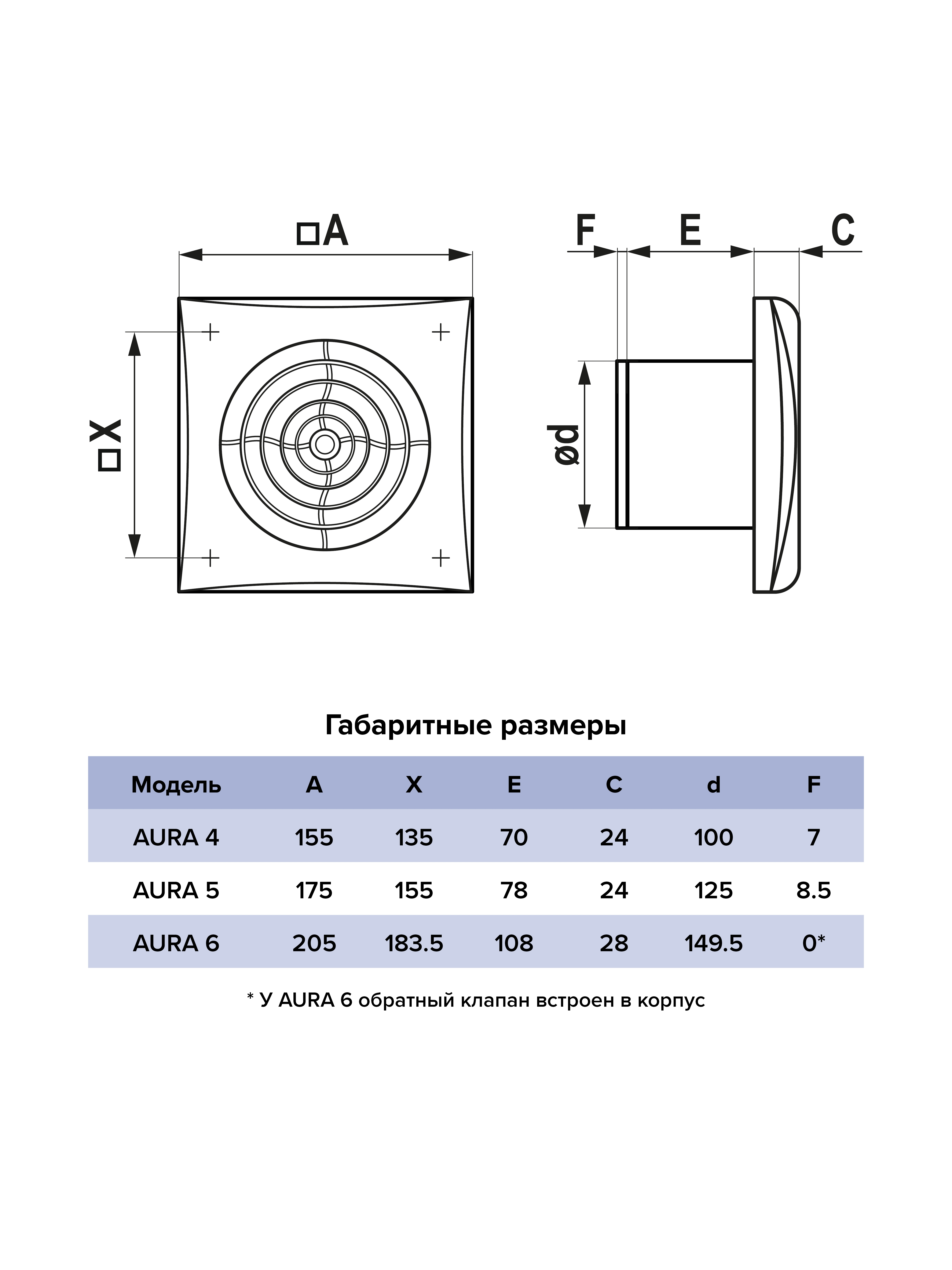

Height, mm155
Width, mm155
General depth, mm101
Altitude mounting, mm135
Mounting width, mm135
Installation diameter, mm100
Diameter external, mm100

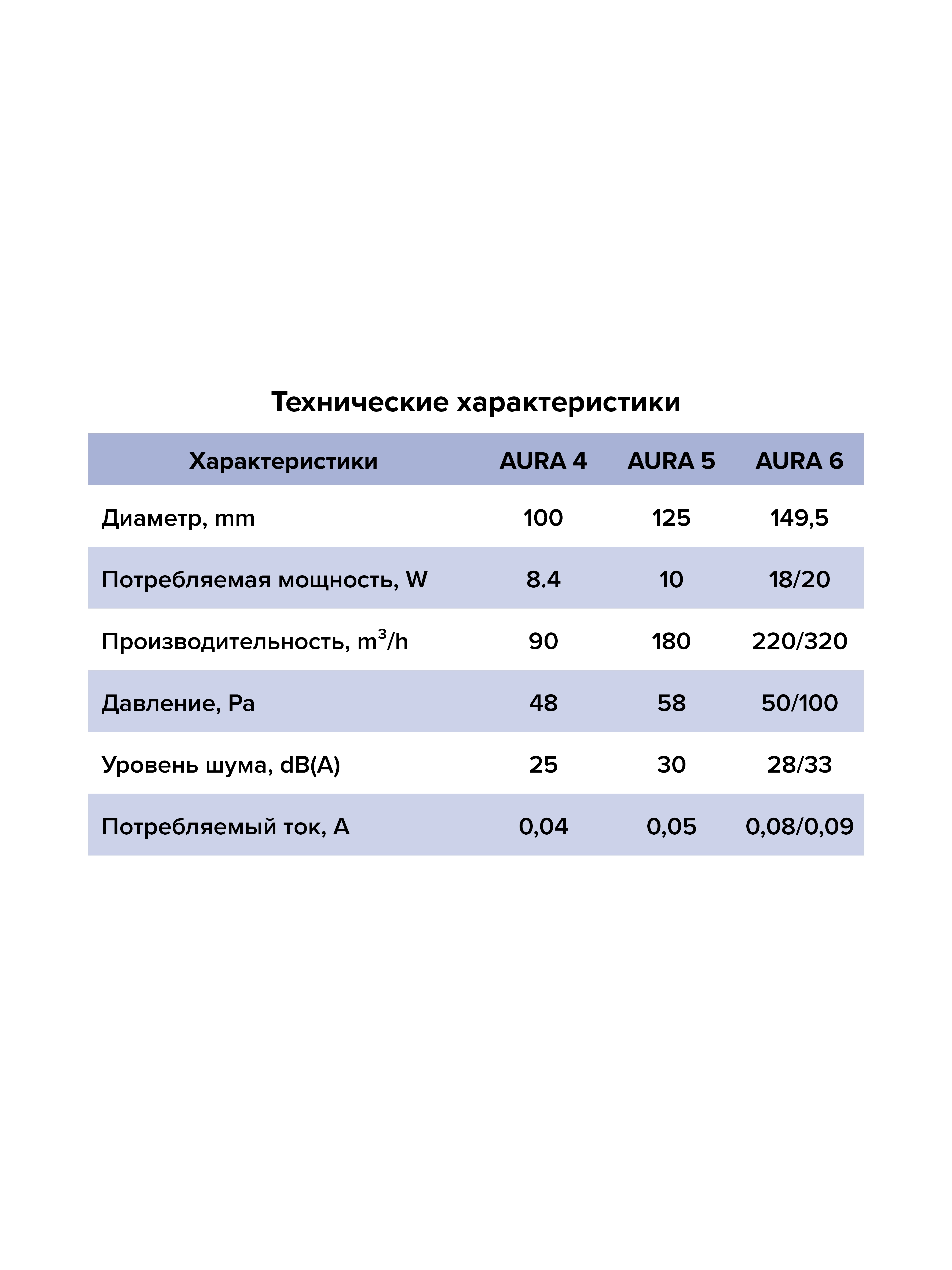

Performance, M3 / H90
Noise level, DB (A)25
Power consumption, w8.4
Pressure, PA48
Voltage, V.220
LocationWall
Working mechanismAxial
Principle of ventilationExhaust
ControlMechanical
Country of originRussia
Gross weight, kg0.6
Net weight, kg0.5
Bezel thickness24
Flange depth70
Check valve depth when closed7
Warranty5 years
CB Test certificate GB 8425 Z Built_In_Partition_Axial fan
