Domestic fan AURA 4C Champagne DICITI

Article: AURA 4C Сhampagne

Design features
Ball-bearing motor
ABS-plastic
Back-draught shutter with plastic wings
Device operation is indicated with LED
Reduced power consumption
Low noise level
Mounting with screws
Cutout overheating protection
5-year warranty
Ingress protection rating for electrical equipment
Additional options
Design Series
The AURA fan is used for continuous or periodic exhaust ventilation of bathrooms, showers, kitchens and other utility rooms. Features of the AURA fan: — radial blinds, — front impeller location, as a result of which the fan creates high pressure and is suitable for use in particularly polluted shafts, — a wide range of colors: basic white (AURA 4C, AURA 4C MRH), Ivory (AURA 4C Ivory), Gray metal (AURA 4C Gray metal), Dark Gray metal (AURA 4C Dark Gray metal). The model is equipped with a check valve that prevents the penetration of unpleasant odors from the shaft. A blue LED under the front panel lights up when the fan is turned on. Due to its design, the fan has high performance, while having a low noise level: 25 dB (A) for models with a flange diameter of 100 mm. The long-lasting, low-energy ball bearing motor does not require additional maintenance, guarantees up to 40,000 hours of continuous operation, is equipped with an aerodynamic impeller, as well as a fuse that will turn off the fan when the winding heats up to +130 °C. The AURA fan can be mounted both in the wall and in the ceiling (when removing the check valve). The body and panel are made of high-quality and durable ABS plastic, which will reliably serve the entire service life and will not turn yellow. Installation is carried out using self-tapping screws, which are included in the kit. IP24 Ingress protection rating for electrical equipment. Warranty period is 5 years.
  • Article AURA 4C Сhampagne
  • Trade mark DICITI
  • Material ABS plastic
  • Color Golden
  • Color (decorative) Champagne
  • Protection class IP 24
  • Quantity in transport package 16 pieces

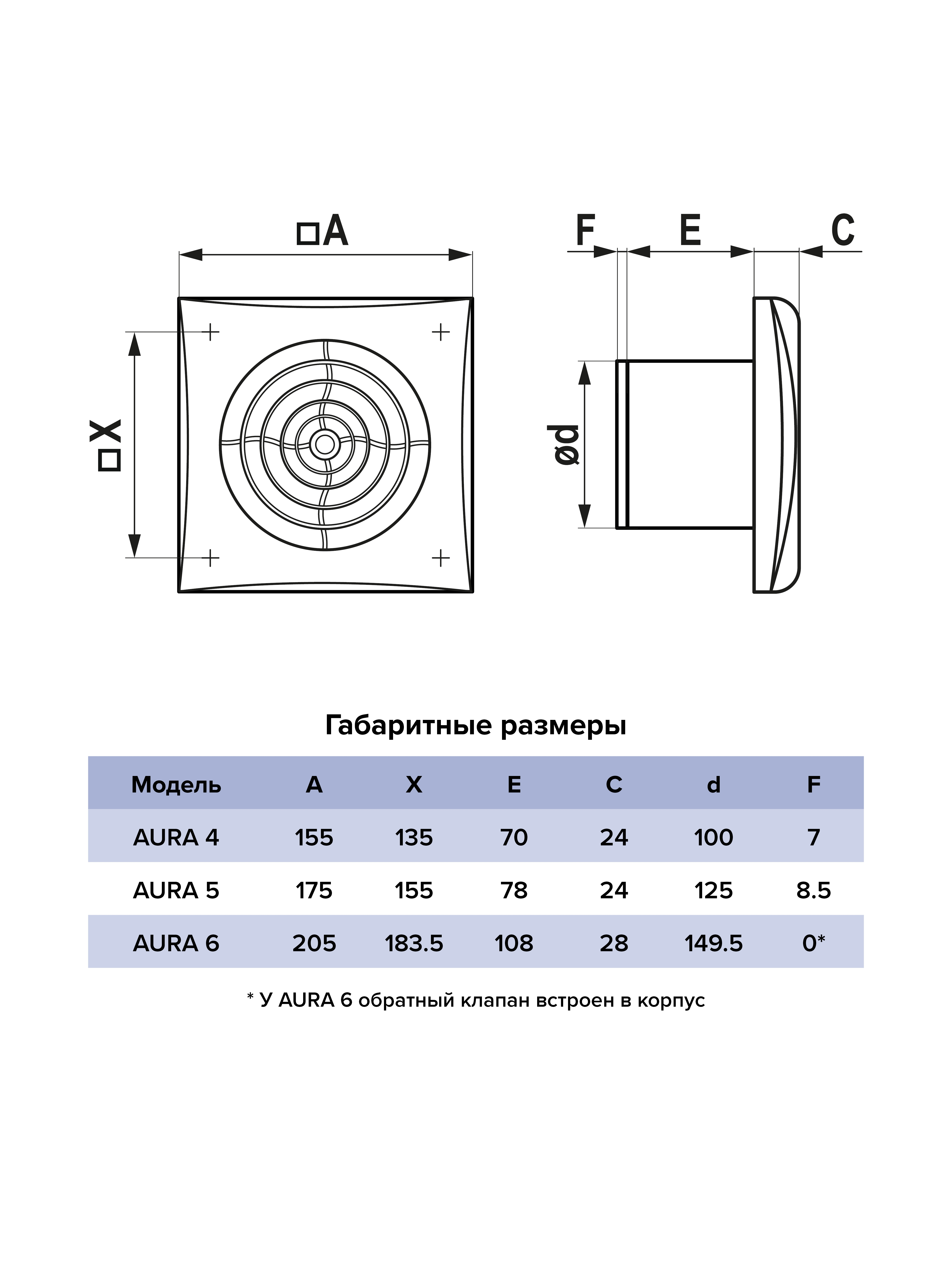

  • Height, mm 155
  • Width, mm 155
  • General depth, mm 101
  • Altitude mounting, mm 135
  • Mounting width, mm 135
  • Installation diameter, mm 100
  • Diameter external, mm 100

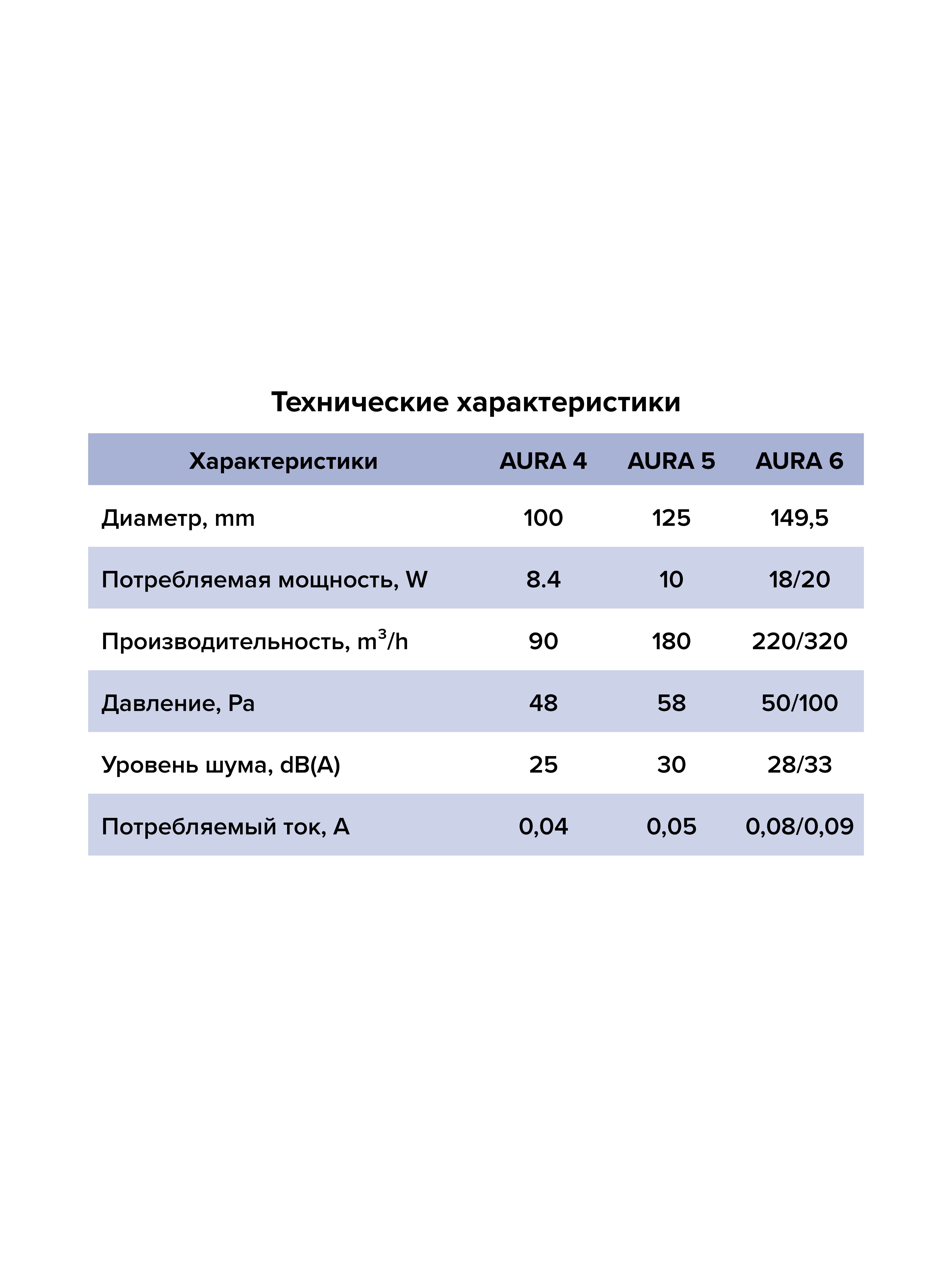

  • Performance, M3 / H 90
  • Noise level, DB (A) 25
  • Power consumption, w 8.4
  • Pressure, PA 48
  • Voltage, V. 220
  • Location Wall
  • Working mechanism Axial
  • Principle of ventilation Exhaust
  • Control Mechanical
  • Country of origin Russia
  • Gross weight, kg 0.6
  • Net weight, kg 0.5
  • Bezel thickness 24
  • Flange depth 70
  • Check valve depth when closed 7
  • Warranty 5 years
Passport DICITI
CB Test certificate GB 8425 Z Built_In_Partition_Axial fan
GULF Type Certificate TM DICITI
