AURA 5C is used for arranging continuous or periodic ventilation in bathrooms, showers, kitchens and other domestic premises.
Equipped with a back-draught shutter for blocking the smells and odours from the shaft. The face panel is equipped with a blue LED-indicator lighting up at the fan's actuation. Due to a special design, the device shows better performance along with the low noise level rates. An electric motor with reduced power consumption characteristics and an aerodynamic impeller provide the long service life of the fan model. A ball-bearing motor does not require any extra maintenance and allows to install the fan both vertically and horizontally (after withdrawing the back-draught shutter).
Mounting with screws (included into the kit).
ArticleAURA 5C
Trade markDICITI
MaterialABS plastic
ColorWhite
Color (decorative)White
Protection classIP 24
Quantity in transport package16 pieces

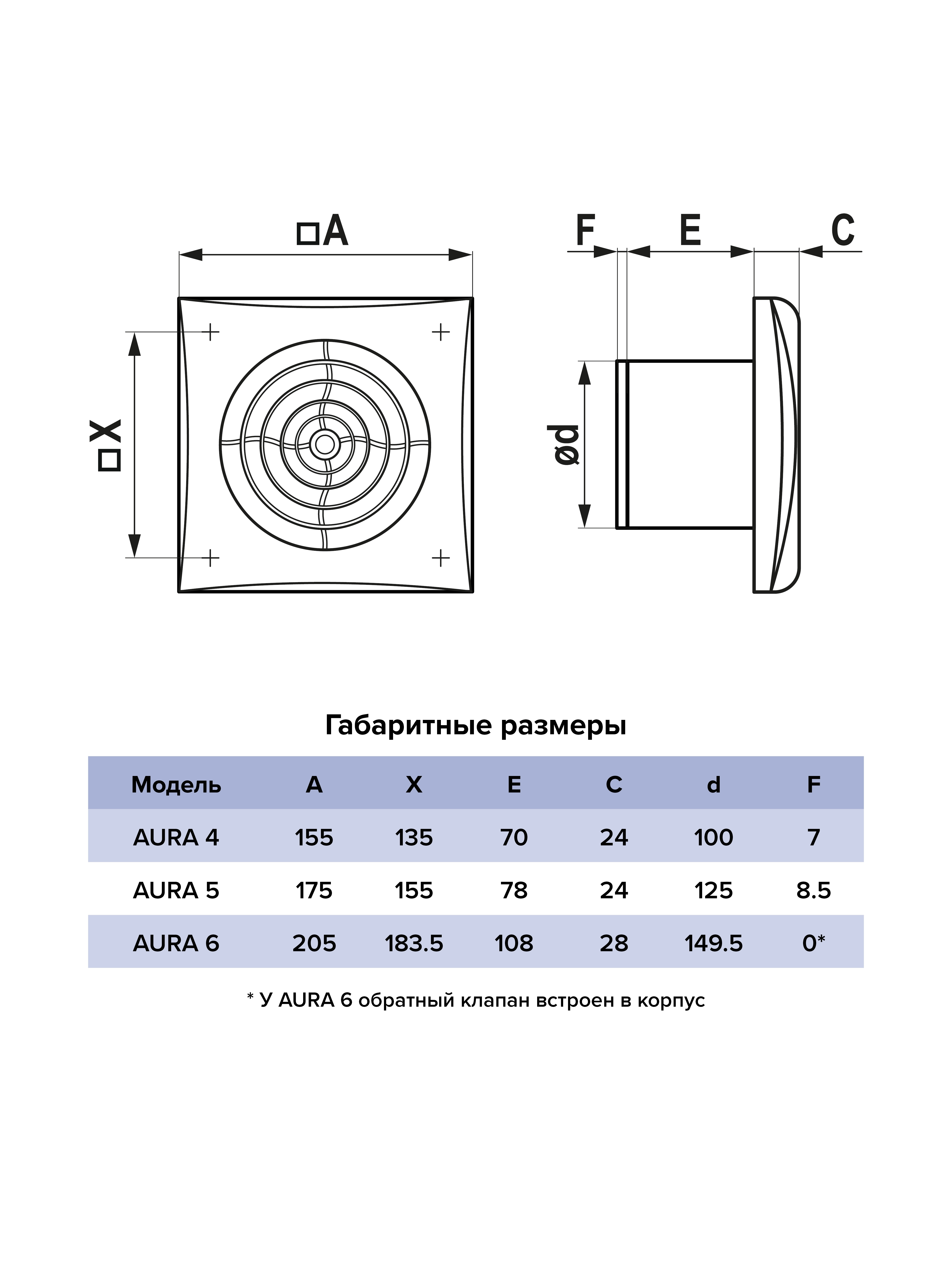

Height, mm175
Width, mm175
General depth, mm110.5
Altitude mounting, mm155
Mounting width, mm155
Installation diameter, mm125
Diameter external, mm125

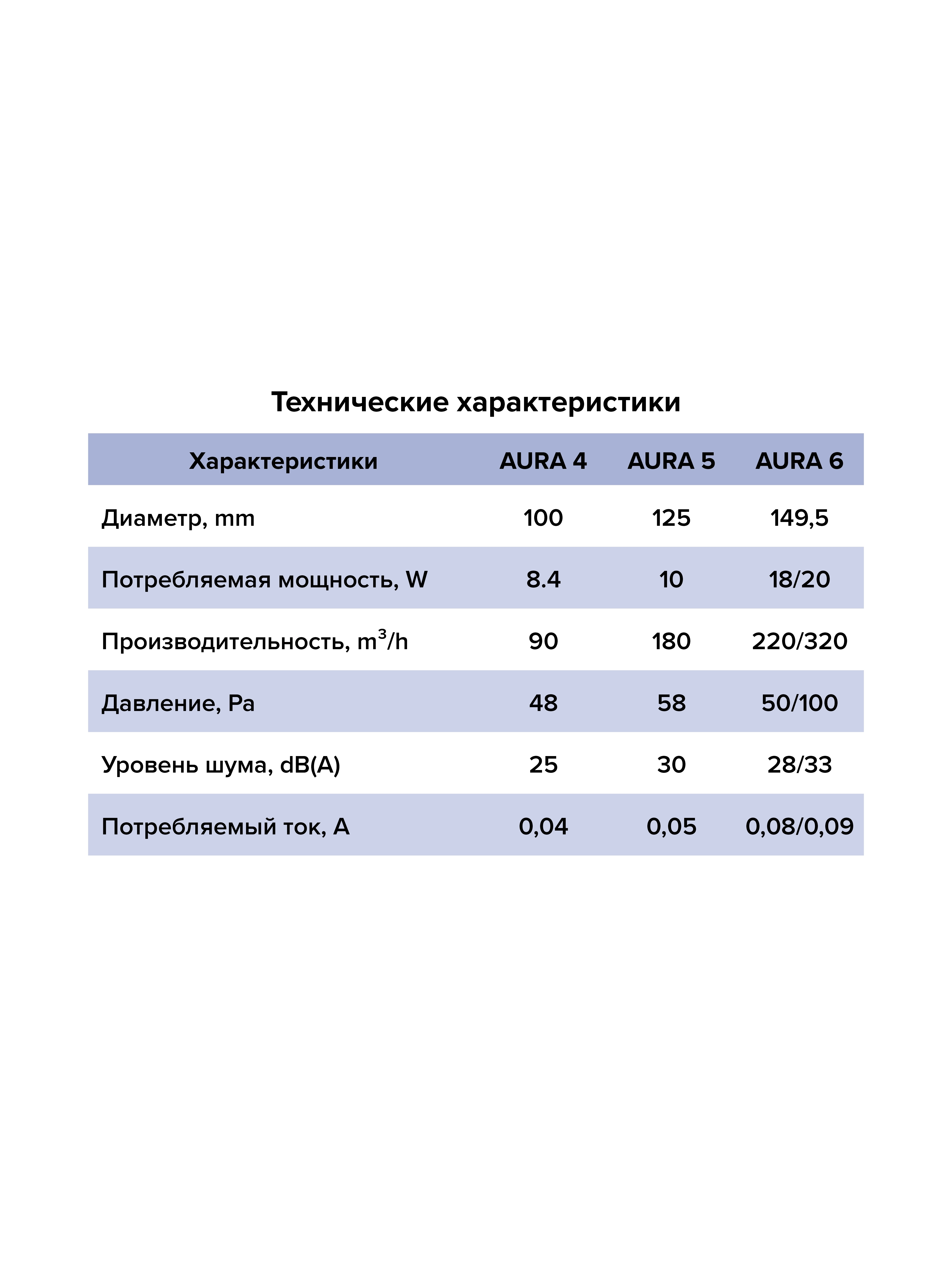

Performance, M3 / H180
Noise level, DB (A)30
Power consumption, w10
Pressure, PA58
Voltage, V.220
LocationWall
Working mechanismAxial
Principle of ventilationExhaust
ControlMechanical
Country of originRussia
Gross weight, kg0.7
Net weight, kg0.6
Bezel thickness24
Flange depth78
Check valve depth when closed8
Warranty5 years
CB Test certificate GB 8425 Z Built_In_Partition_Axial fan
