Exhaust fans for wall and ceiling application.
For mounting into ventilation shafts or junction with air ducts.
100, 125 and 150 mm flange diameter.
Low noise ball-bearing motor with an extended service life (up to 40 000 hours of continuous operation).
Reduced power consumption.
Fits for ceiling mounting (back-draught shutter must be removed).
Two-speed fan (AURA 6)
The best performance characteristics among analogues wall and ceiling applied fans by ERA Group (AURA 6)
IP24 Ingress protection rating for electrical equipment.
ArticleAURA 5C Gray metal
Trade markDICITI
MaterialABS plastic
ColorGray
Color (decorative)Gray metal
Protection classIP 24
Quantity in transport package16 pieces

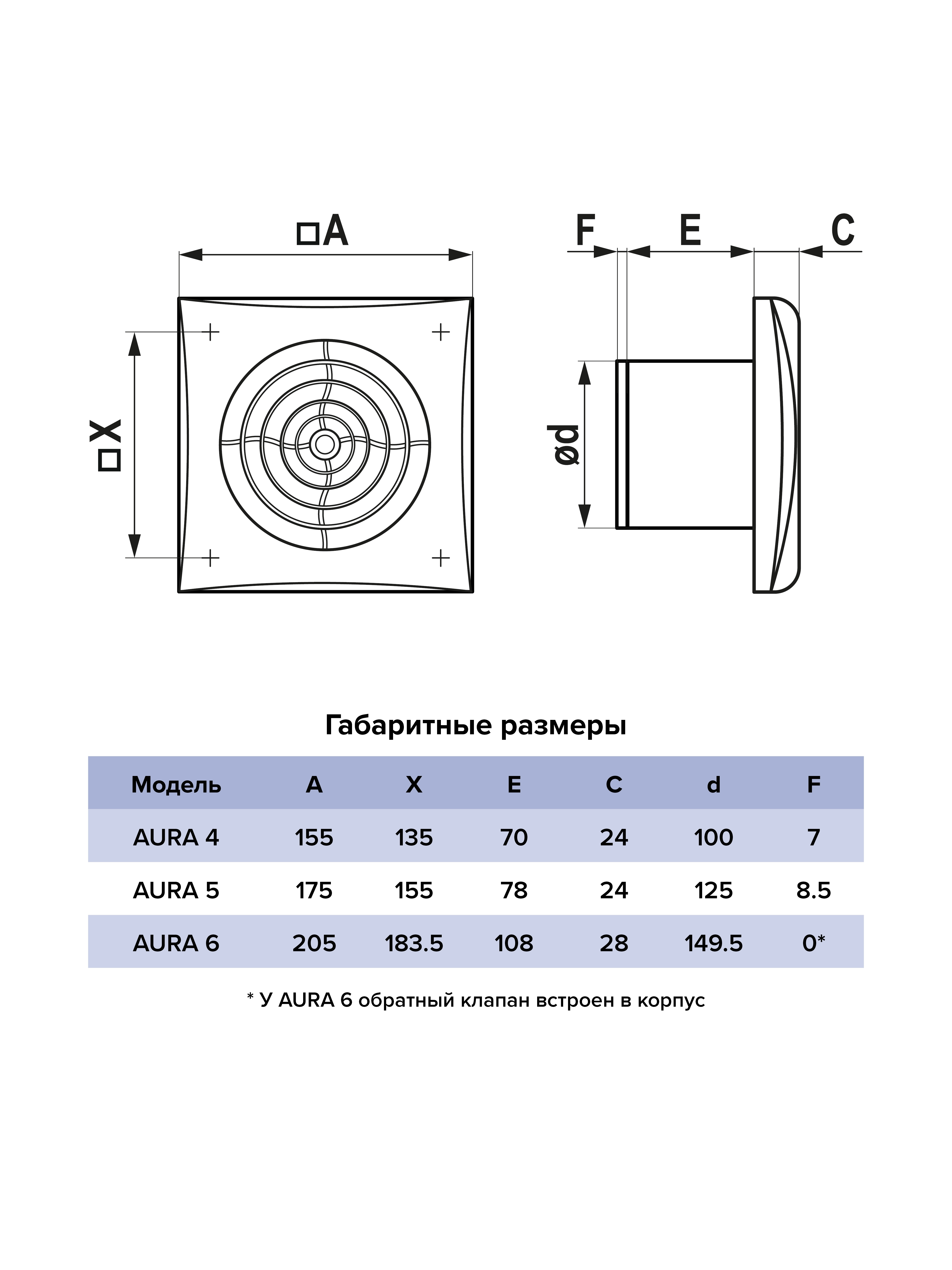

Height, mm175
Width, mm175
General depth, mm110.5
Altitude mounting, mm155
Mounting width, mm155
Installation diameter, mm125
Diameter external, mm125

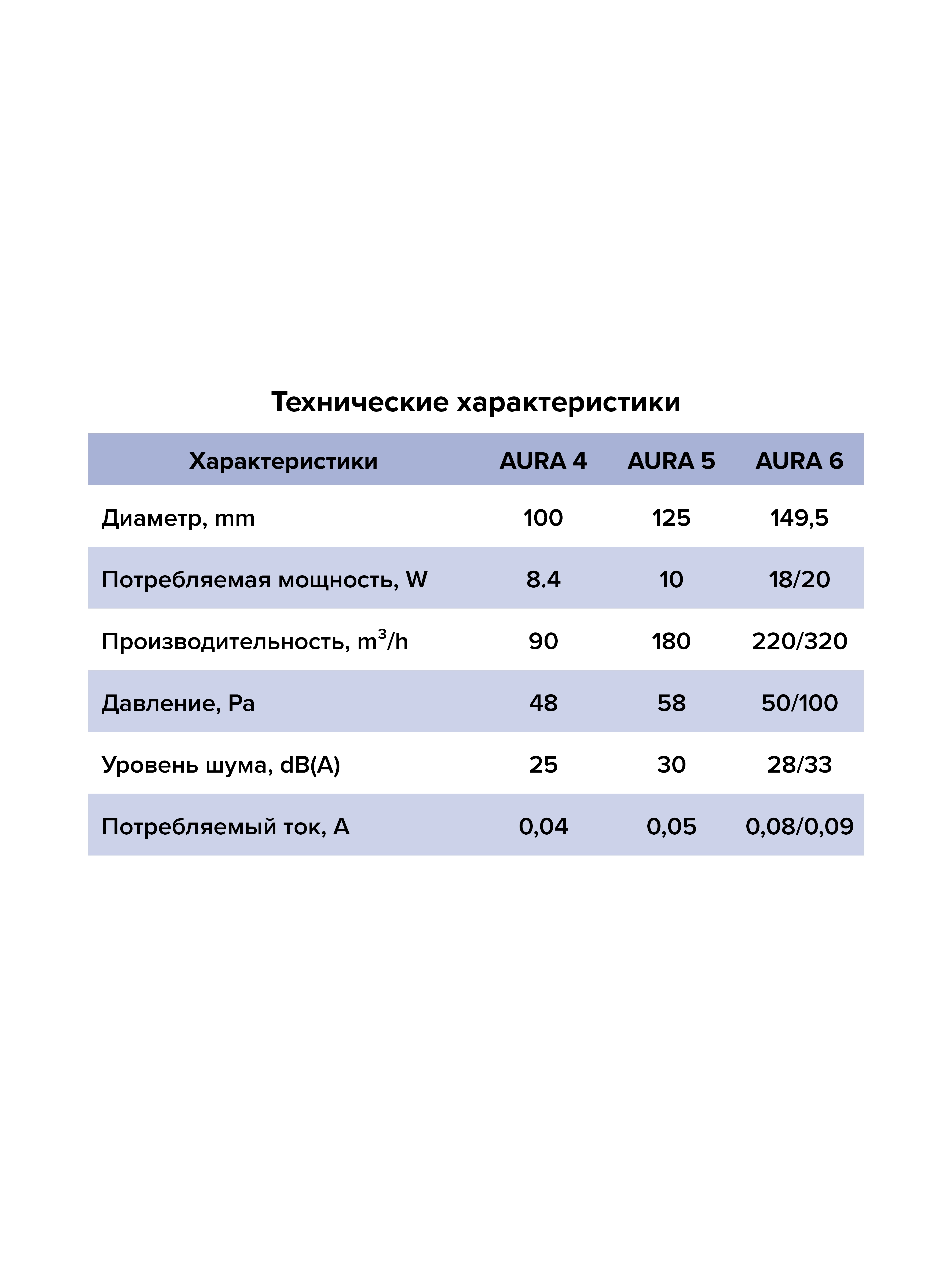

Performance, M3 / H180
Noise level, DB (A)30
Power consumption, w10
Pressure, PA58
Voltage, V.220
LocationWall
Working mechanismAxial
Principle of ventilationExhaust
ControlMechanical
Country of originRussia
Gross weight, kg0.7
Net weight, kg0.6
Bezel thickness24
Flange depth78
Check valve depth when closed8
Warranty5 years
CB Test certificate GB 8425 Z Built_In_Partition_Axial fan
