Article: MARS GDF 355
The MARS GDF 355 duct centrifugal fan is designed for installation at any angle at any point in the ventilation systems of industrial, public, and residential buildings. Centrifugal fans are used in systems with an extensive network of air ducts where high pressure is required.
High degree of protection and performance:
The motor's IP54 protection rating ensures reliable operation in dusty conditions and with water splashes from any direction.

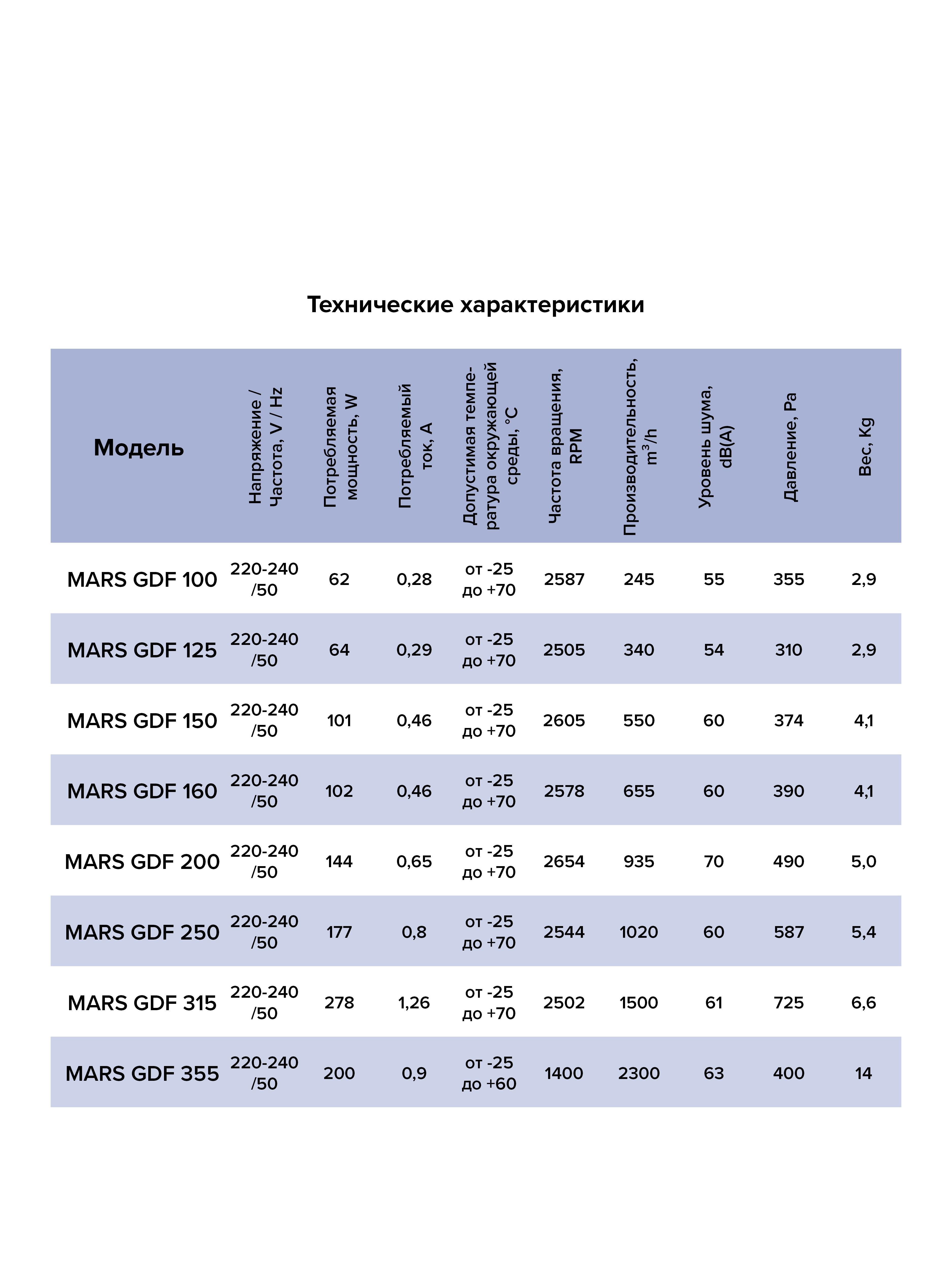

A pressure of 400 Pa and an air flow rate of 2300 m³/h guarantee the rapid removal of large volumes of contaminated air.
Reliability and long service life:
An optimal rotational speed of 1400 rpm minimizes vibration and wear, ensuring motor durability.
Ease of installation and connection:
A terminal box with a hinged lid reliably protects the contacts from moisture, dust, and corrosion while providing quick access for wiring.
