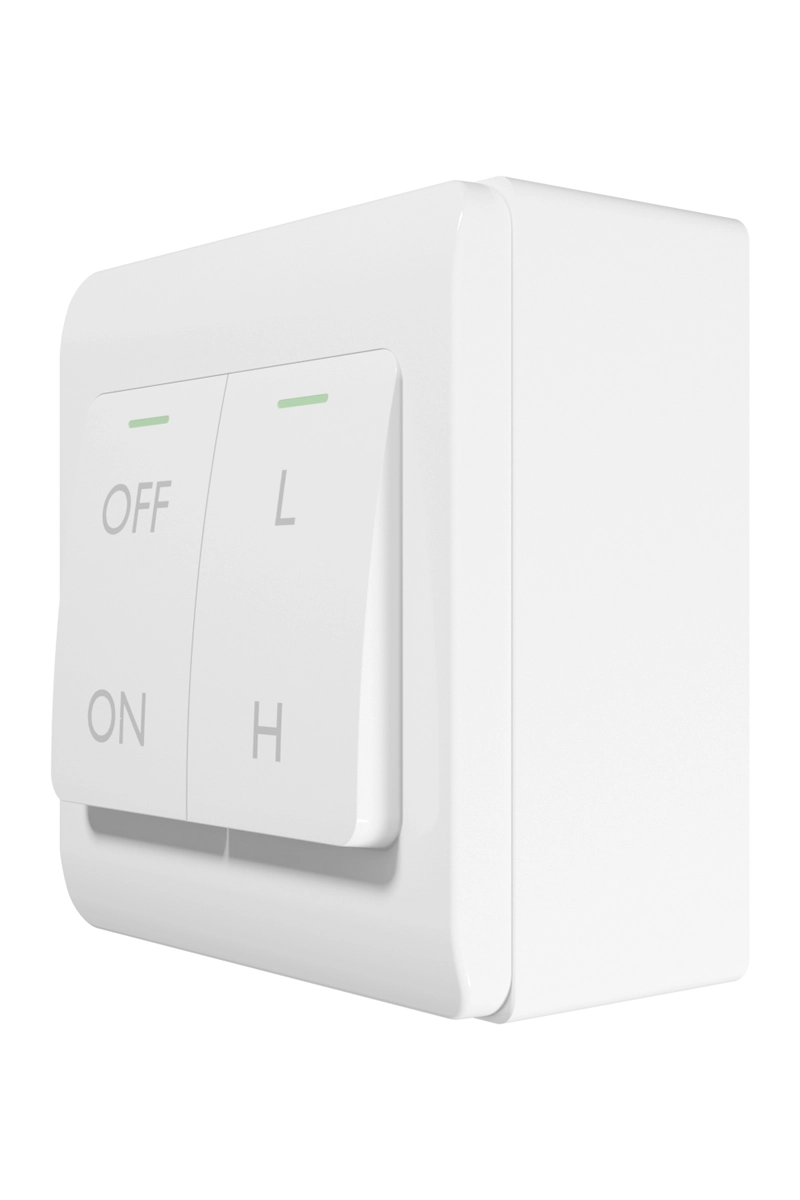

Universal speed switch PC-U-10A ERA

Article: PC-U-10A

Design features

Plastic

Designed for switching speeds as well as turning a fan with a two-speed motor on and off. Suitable for commercial fans TYPHOON (all models), PACIFIC (all models); SPEED SWITCH for domestic fans AURA 6C-03, SILENT 6C-03.

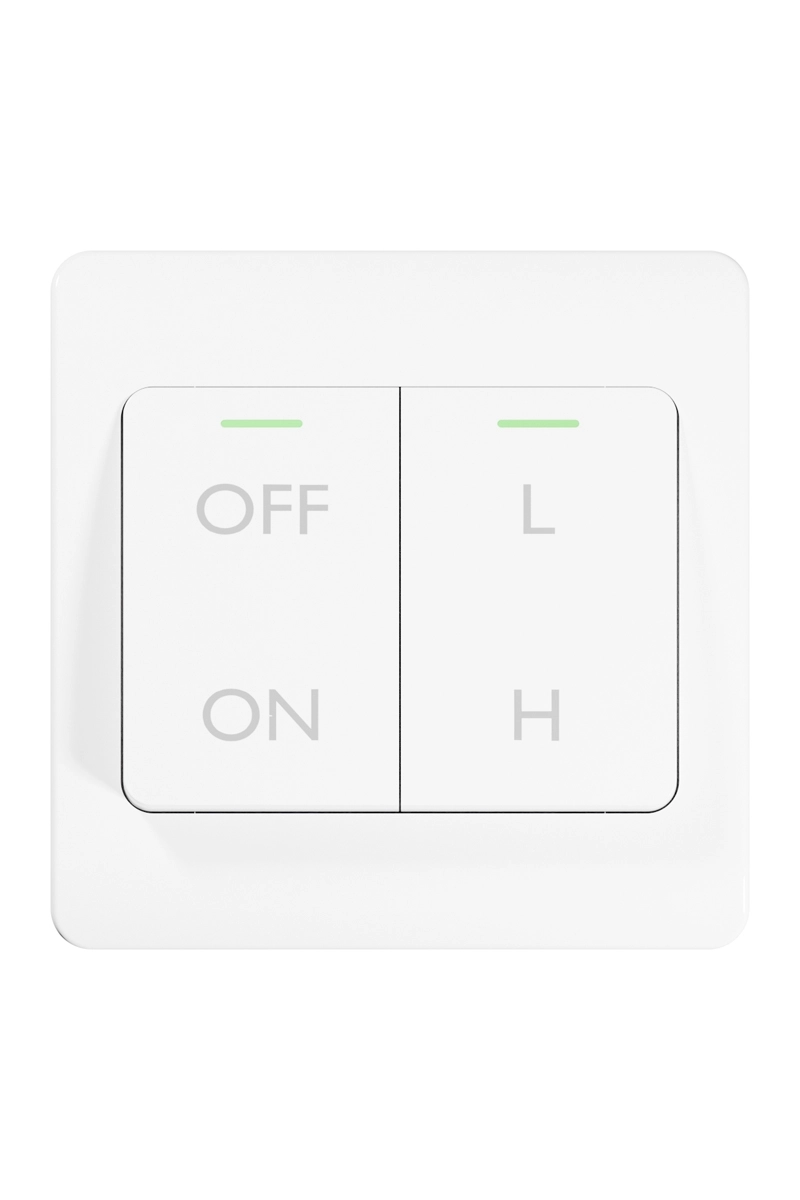

The fan motor is turned on/off using the ON/OF keys, speed switching is L/H, where L is the minimum speed, H is the maximum fan speed.

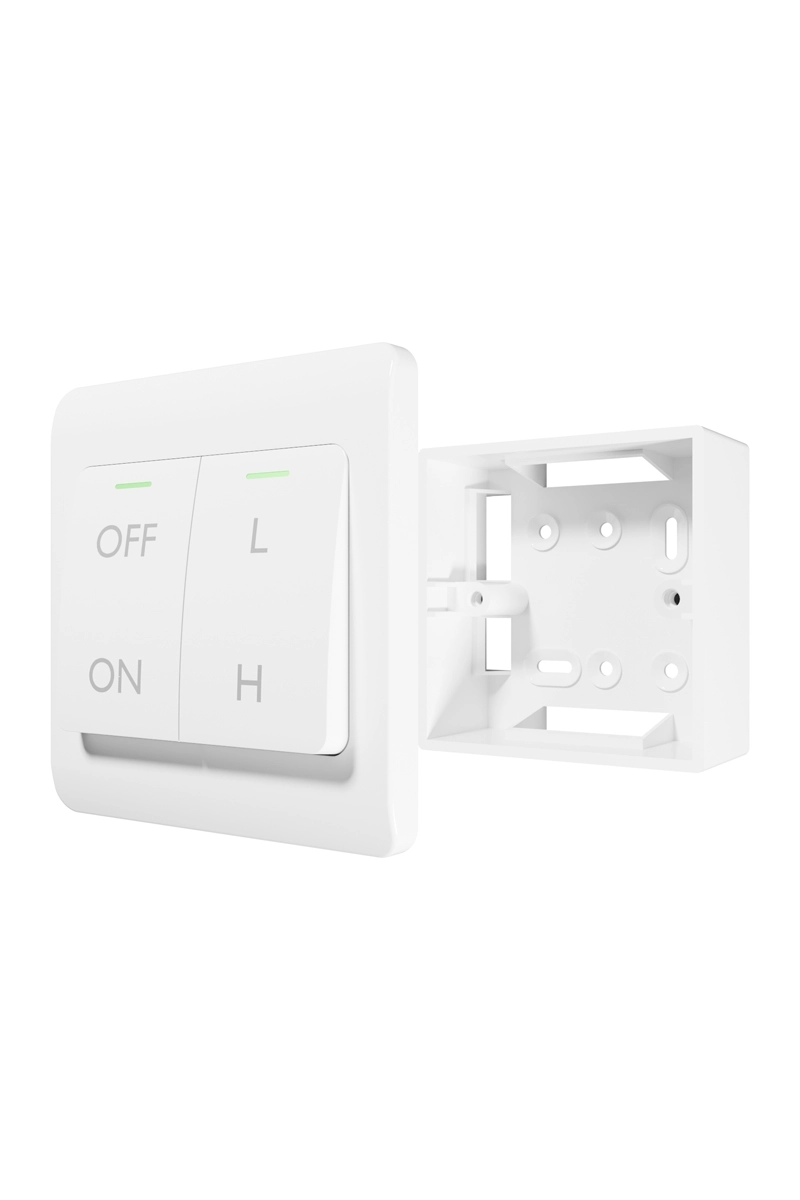

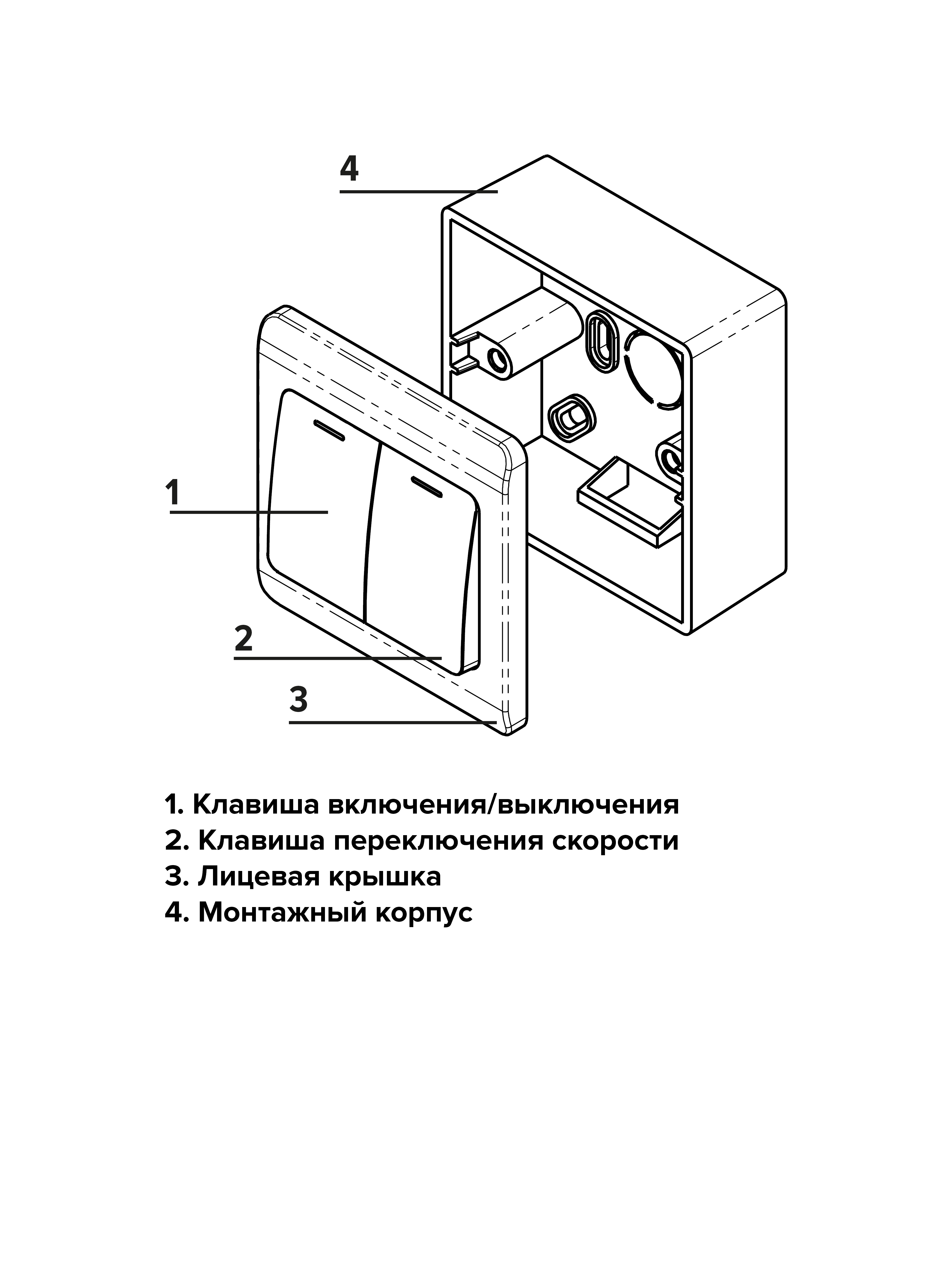

The switch consists of a frame, two buttons with mechanical contacts, and a mounting housing.

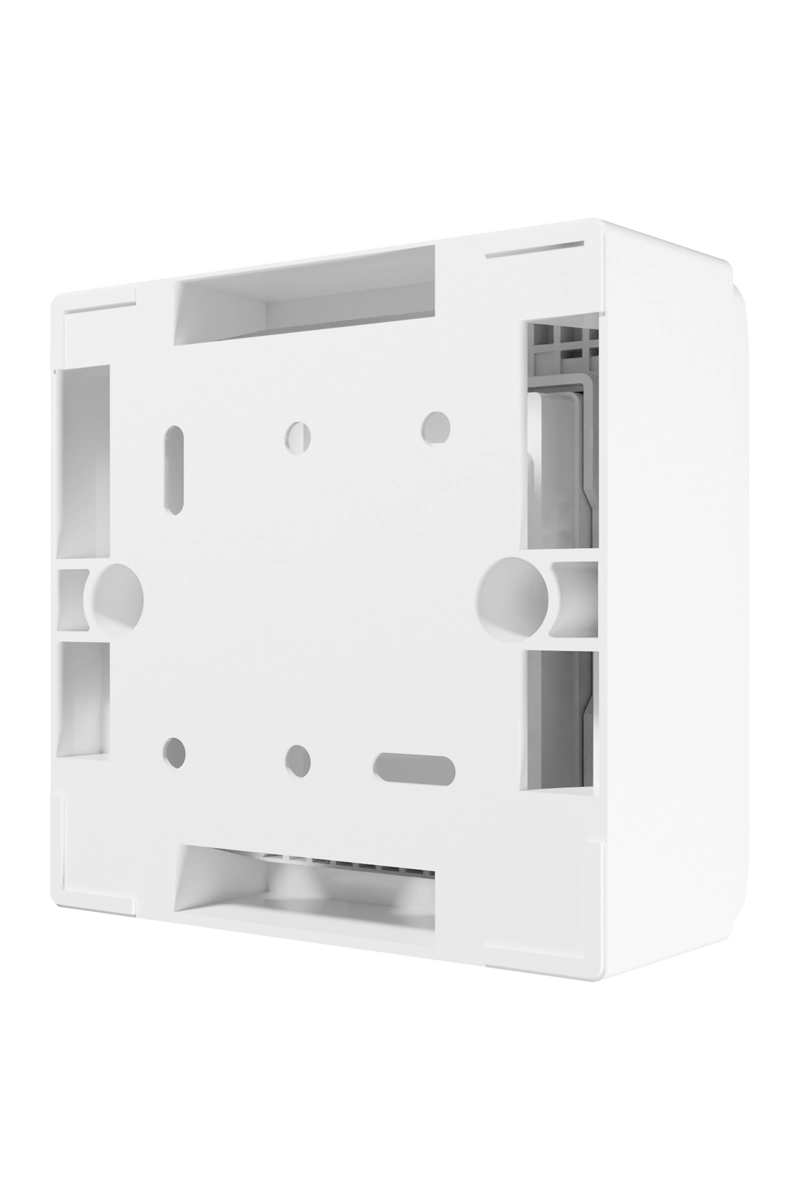

There are two installation options for the
switch — flush-mounted and surface-mounted. In the flush-mounted option, the
housing is installed inside the wall; in the surface-mounted option, the
housing is attached to the wall surface. The connected wires are secured using
screw terminals on the device housing.

Article PC-U-10A
Trade mark ERA
Material Plastic
Color White
Quantity in transport package 1 pcs

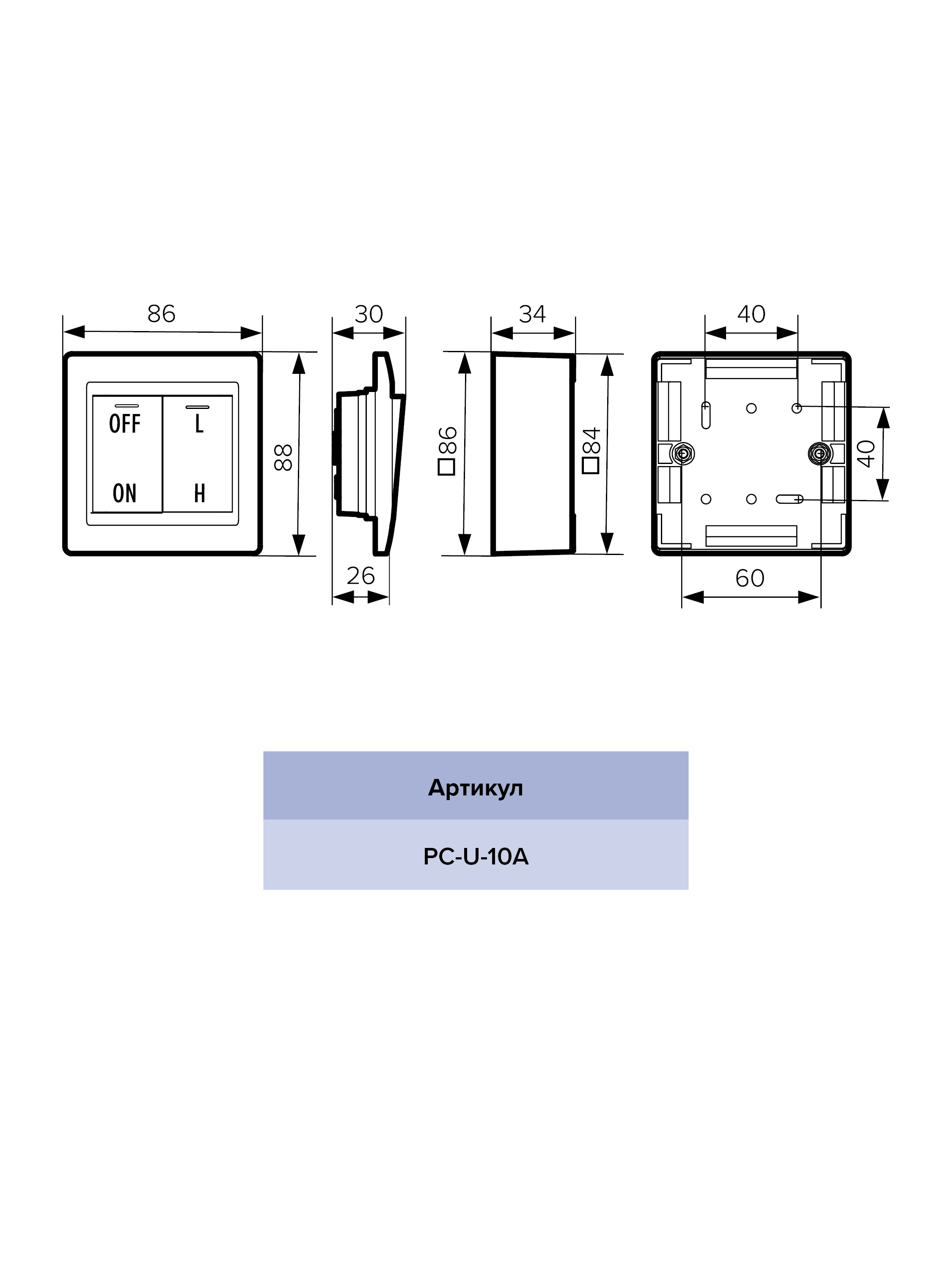

Height, mm 88
Width, mm 86
General depth, mm 34
Voltage, V. 220
Country of origin China
Gross weight, kg 0.125
Net weight, kg 0.085
Warranty 1 year
