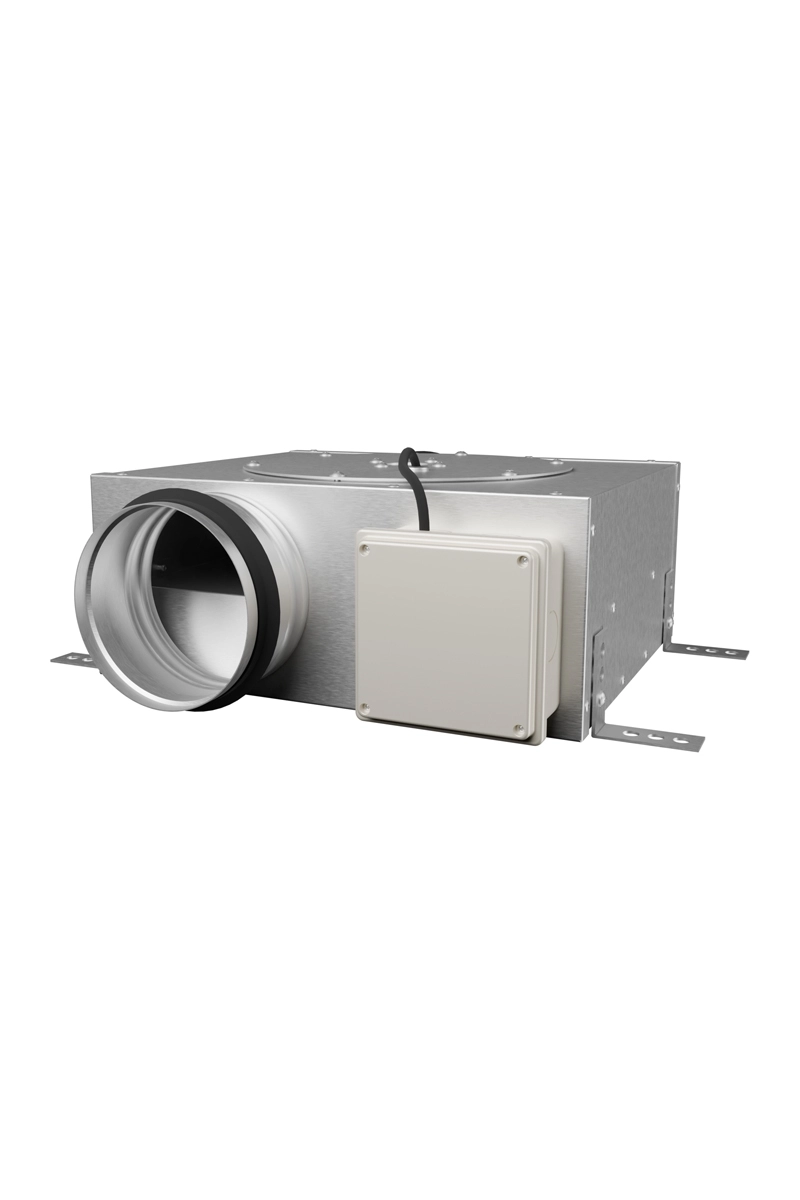

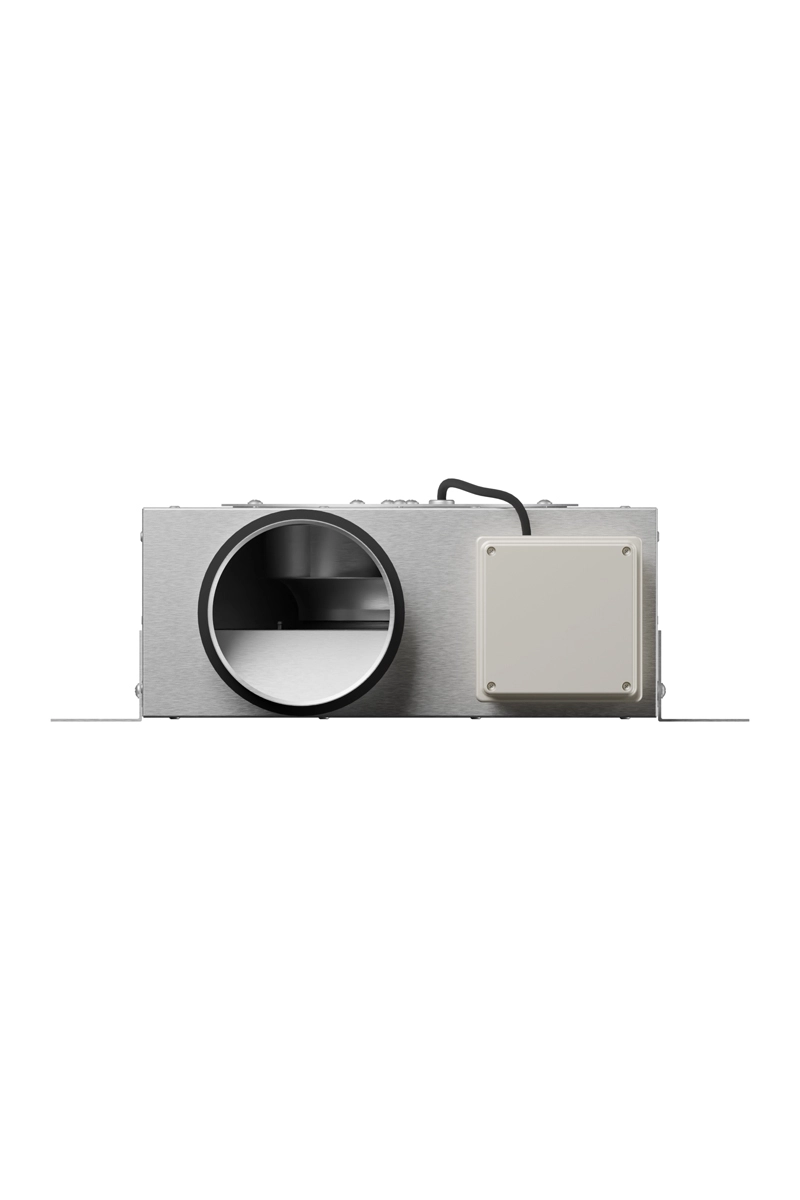

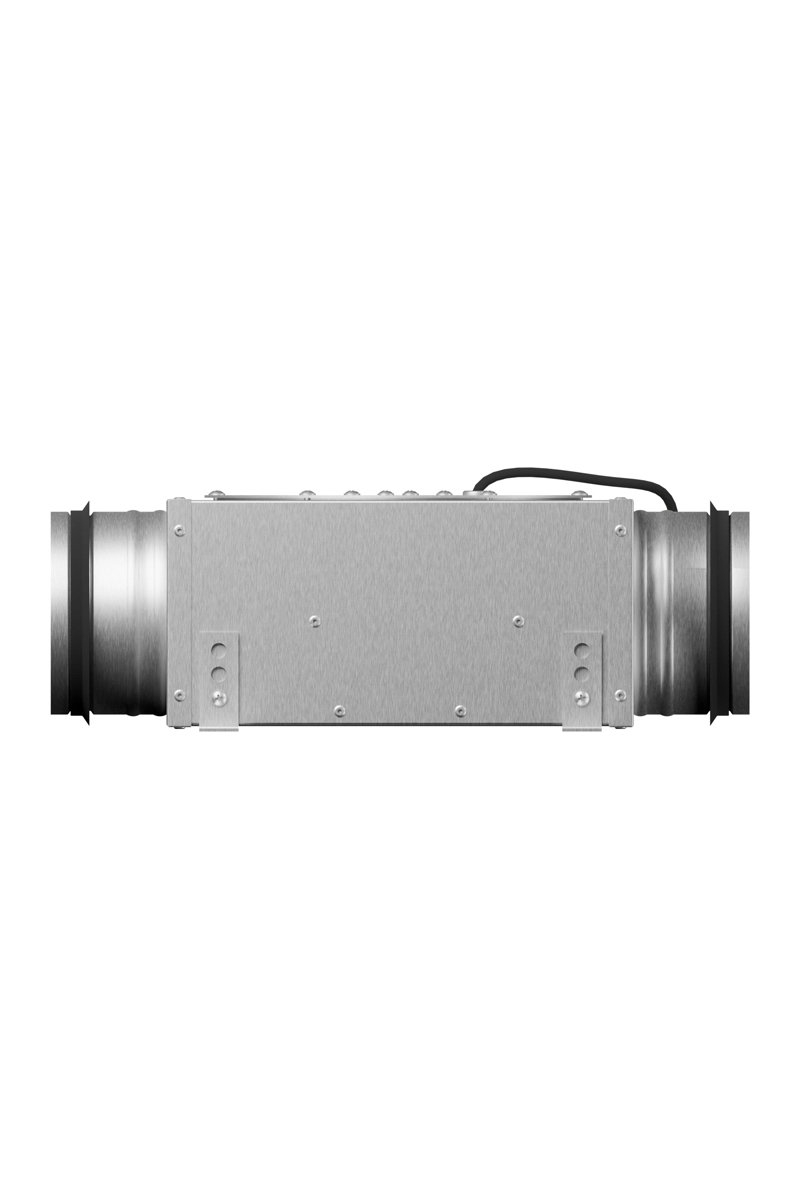

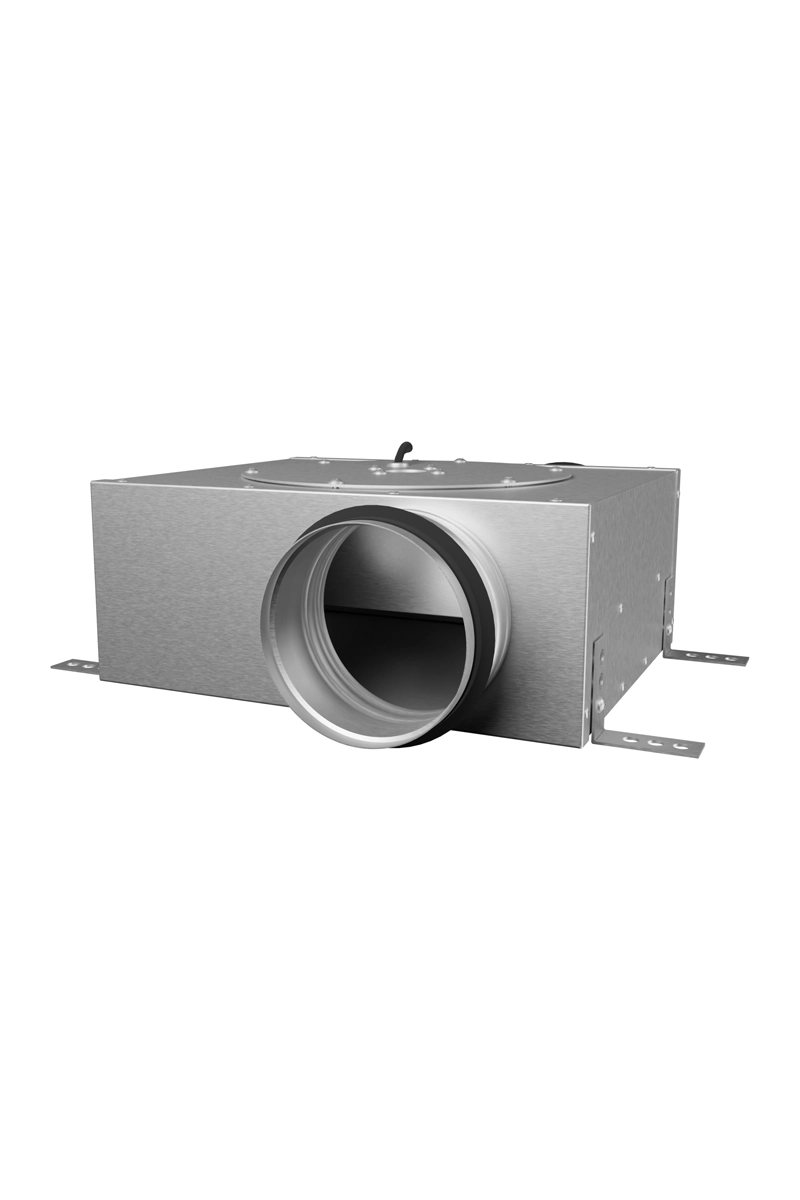

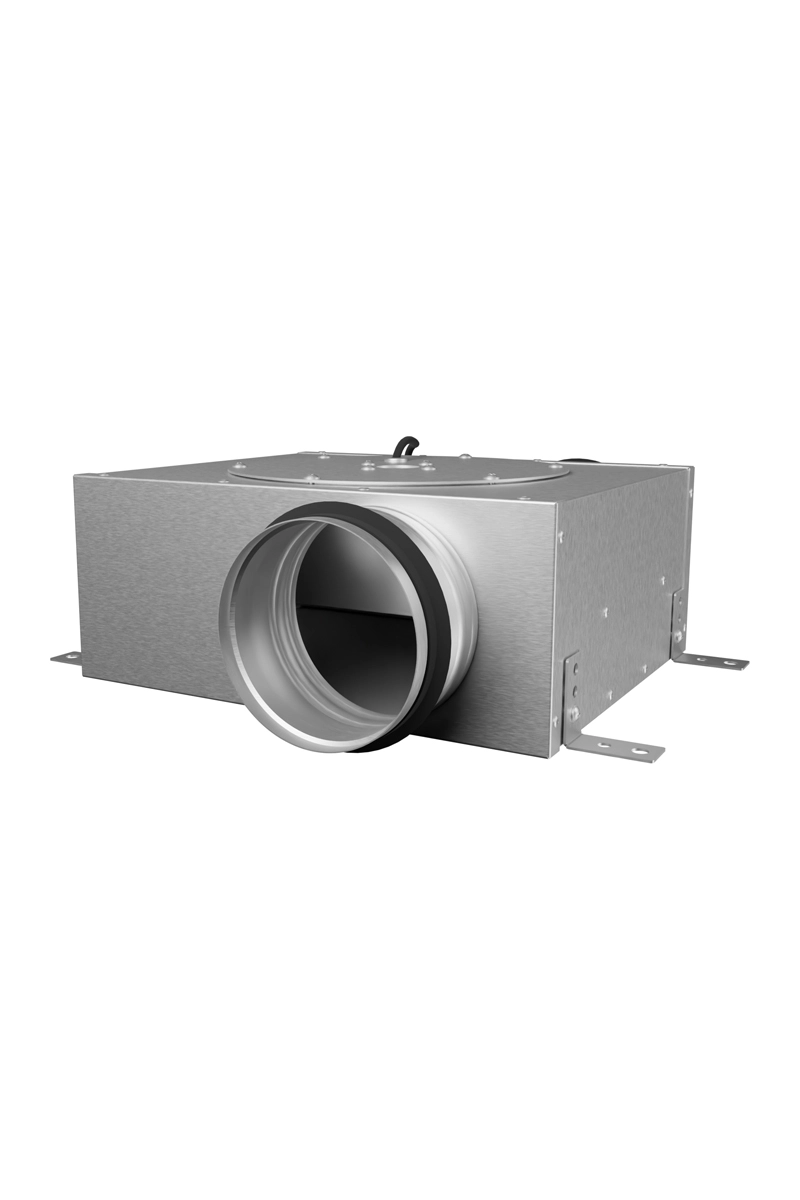

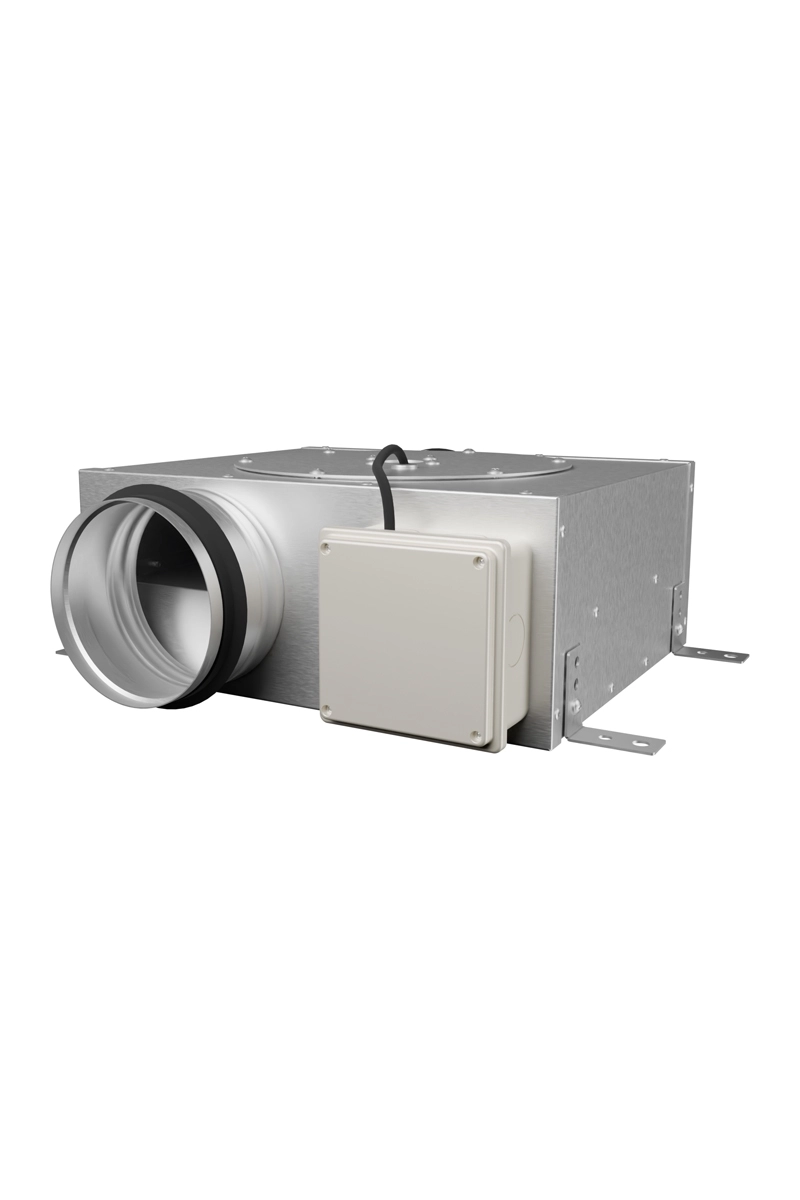

STELS Centrifugal duct fan D125 ERA PRO

STELS duct fan in a compact galvanized steel casing is designed to organize air exchange in supply and exhaust ventilation systems. It has the lowest mounting height among commercial fans manufactured by ERA Group.

Ideal for rooms where installation space is scarce. The fan does not lose any technical parameters and maintains high performance. STELS is mounted in the ventilation duct in any position.
The fan is equipped with a single-phase motor on ball bearings with external rotor, which is equipped with an impeller with backward curved blades.
The motor has thermal protection with automatic restart.
The connection is made in a sealed terminal box equipped with diaphragm seals.
Rubber seals on the flanges simplify installation and provide a reliable seal without the need for additional materials.
Lifespan: 5 years
Operating temperature: -25 to +60 °C

Ingress protection: IPX4
