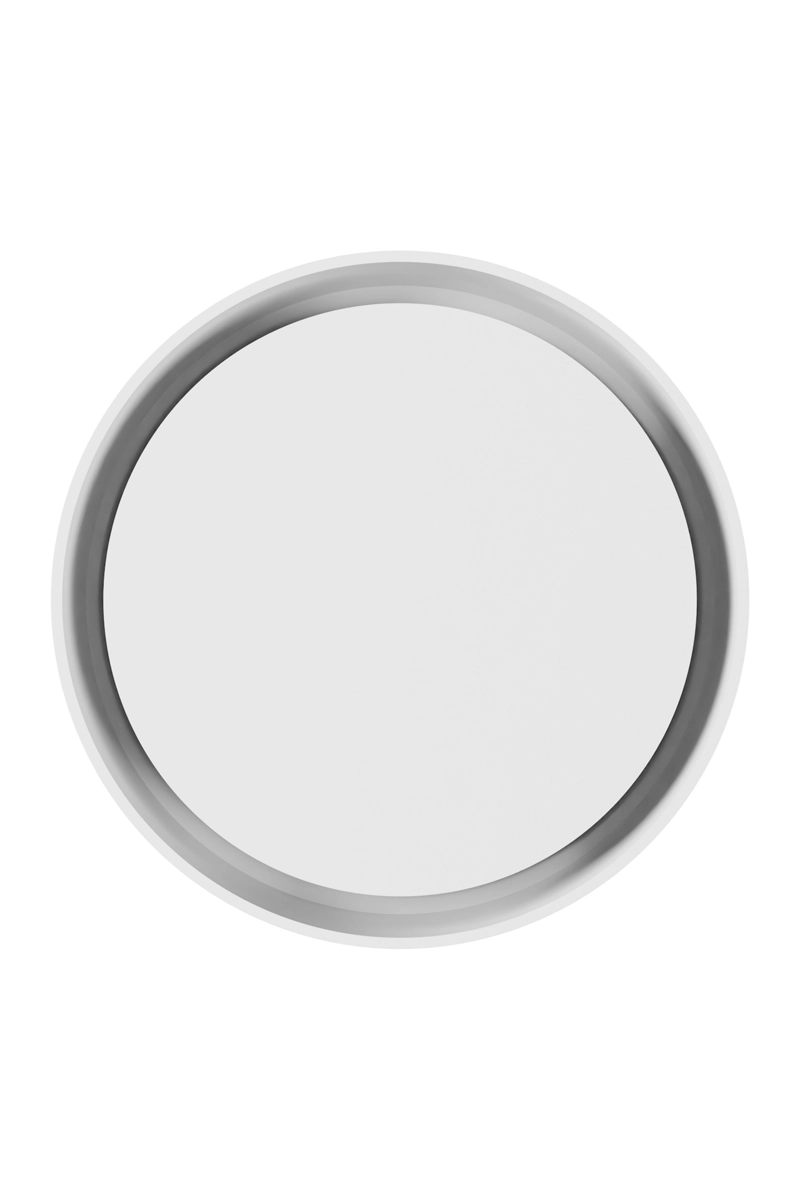

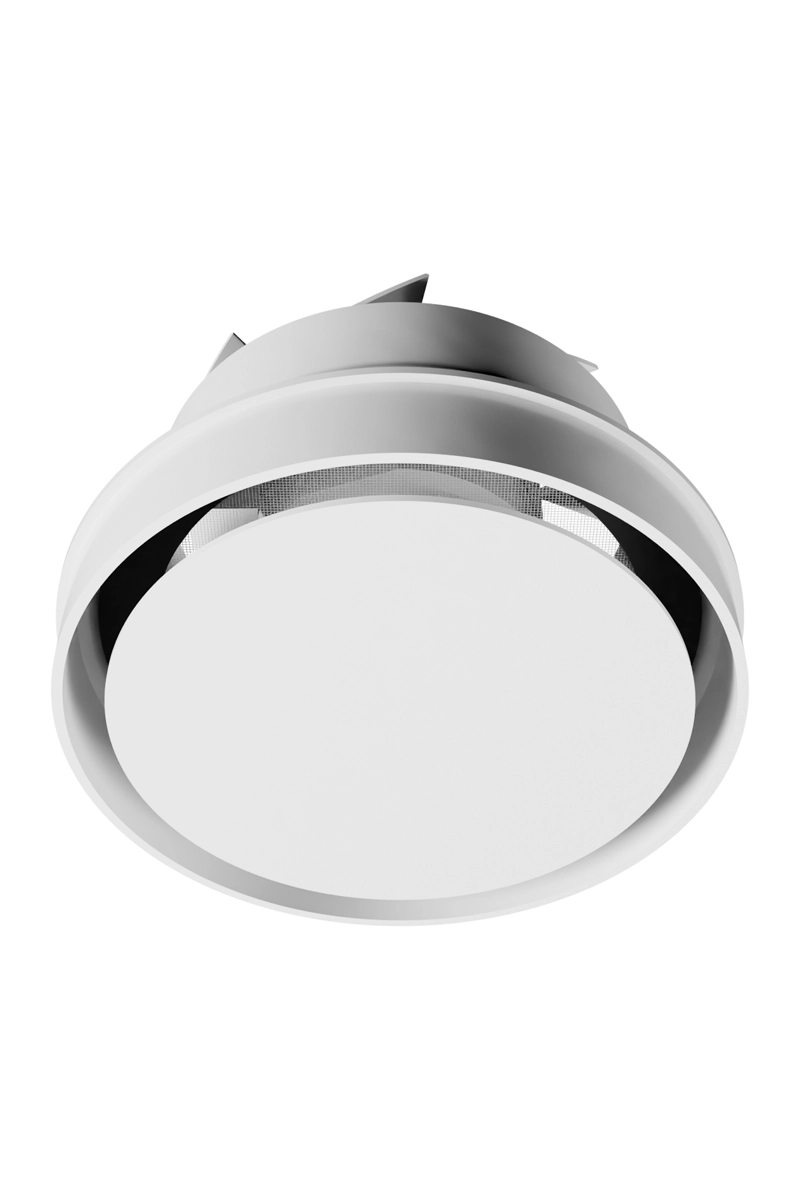

Domestic fan SYMPHONY 4S BB ERA

Article: SYMPHONY 4S BB

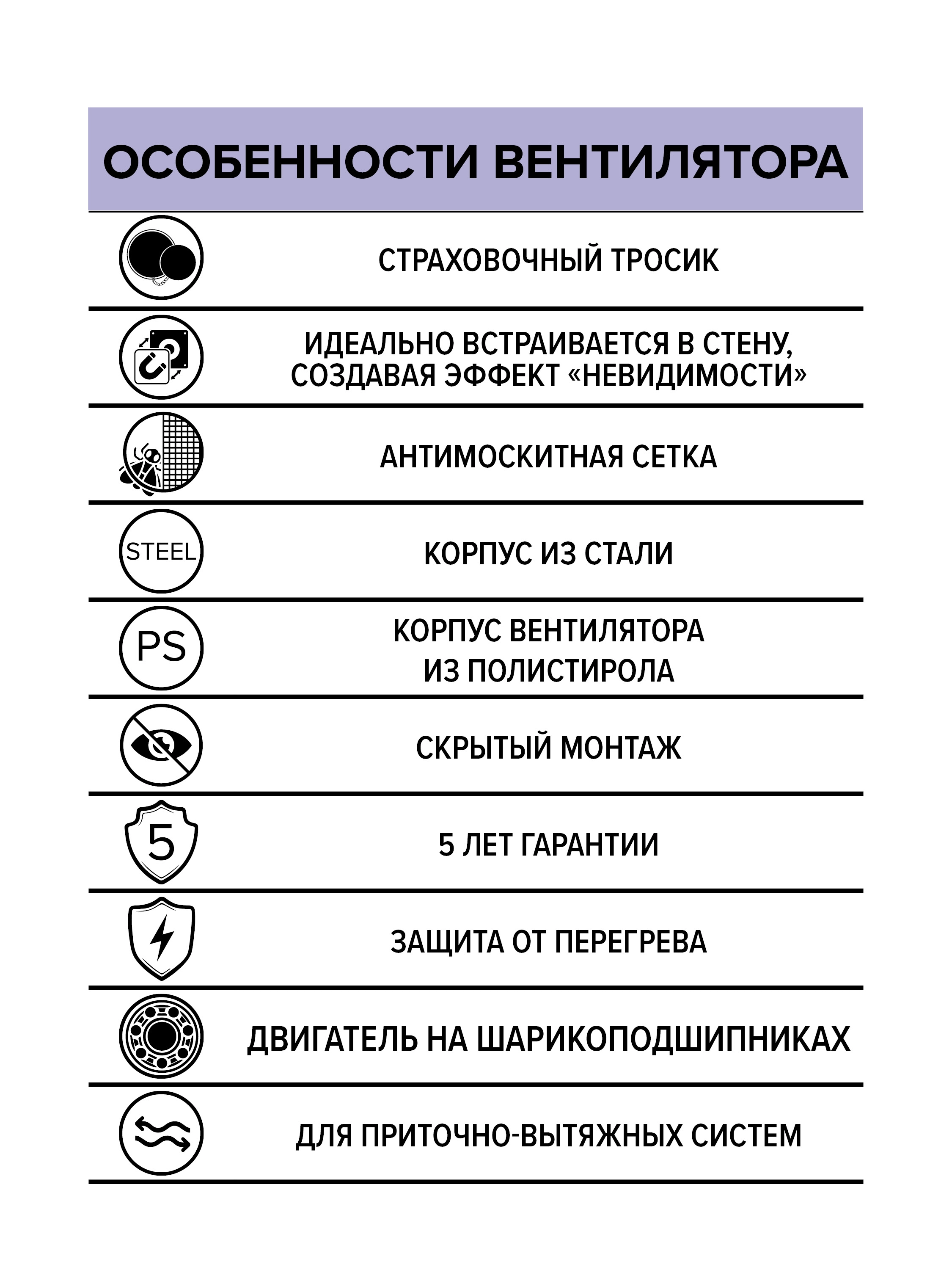

Design features

Magnetic front panel

Protection against jets of water and small particles

Ball-bearing motor

Polystyrene

Steel

Insect net

Cutout overheating protection

5-year warranty

Concealed mounting

Safety rope

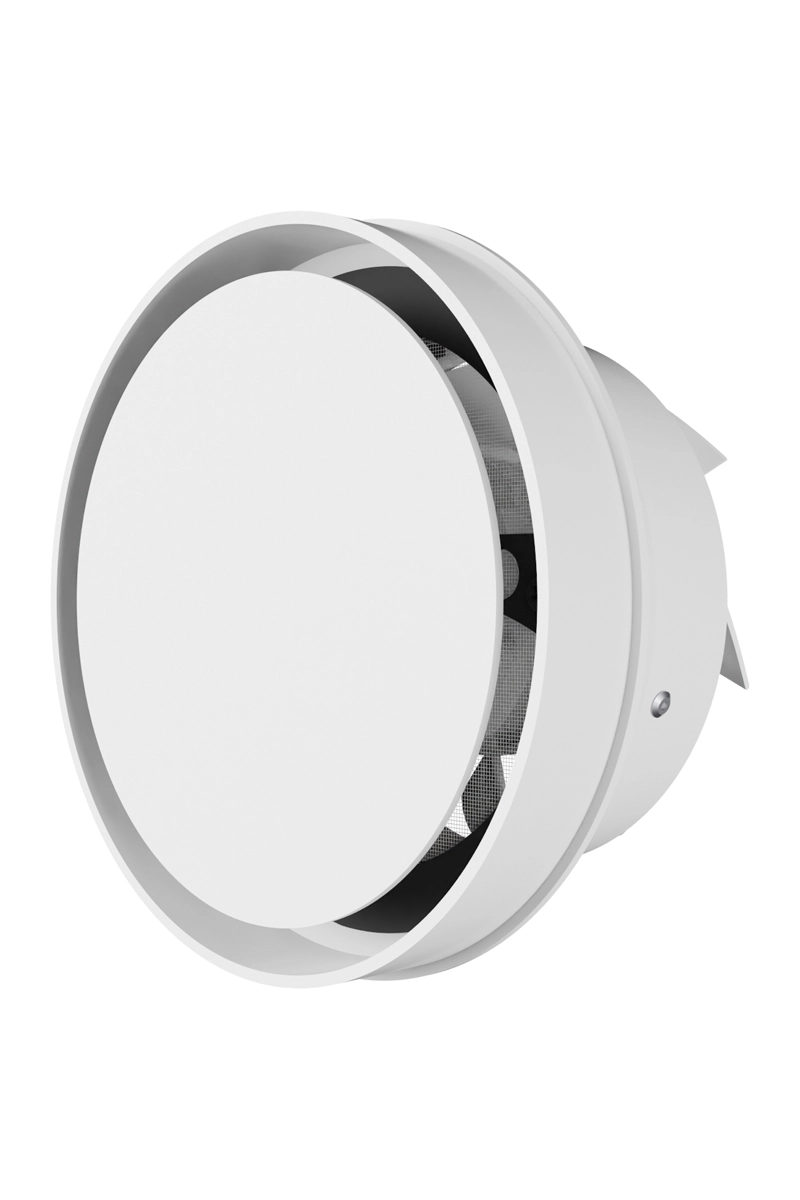

The SYMPHONY fan – invisible comfort for your home and office. Designed for efficient ventilation in bathrooms, kitchens, toilets, and offices. It is completely hidden in a suspended ceiling, preserving the aesthetics of your interior.

Advantages:

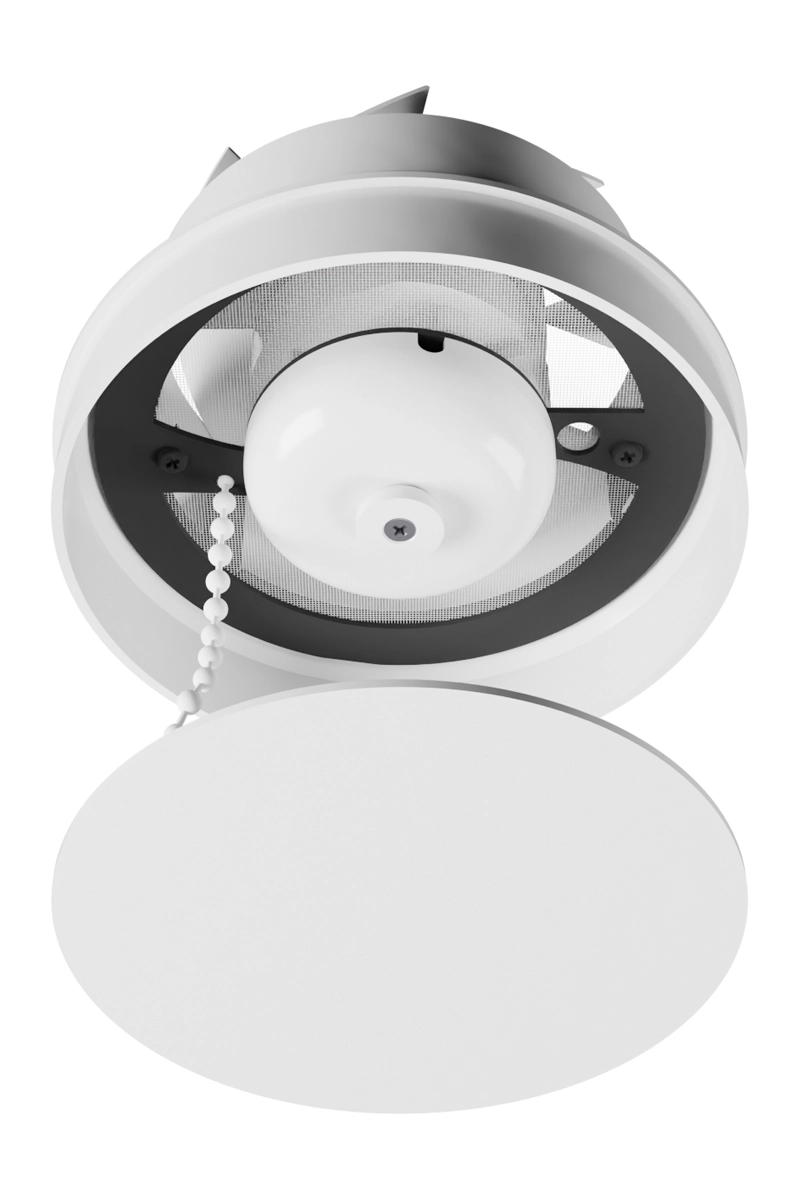

Secure mounting: The front panel is held firmly in place by a magnet and a safety cable. Even if accidentally bumped during maintenance or installation, the panel won’t fall off.
Easy maintenance: The removable front panel provides quick access to the ventilation duct for servicing.
No insects or dust: The built-in anti-mosquito mesh prevents insects from entering the room through the vent.
Simple installation: The fan can be easily installed even in shallow ventilation shafts.
Invisible comfort: SYMPHONY integrates seamlessly into suspended ceilings, remaining completely hidden.
5-minute repairs: No need to dismantle the ceiling to replace SYMPHONY components. Even motor or grille replacement can be done effortlessly on your own.

Functionality:

· Adjustable airflow: The metal damper allows you to regulate air volume or completely block the airflow.

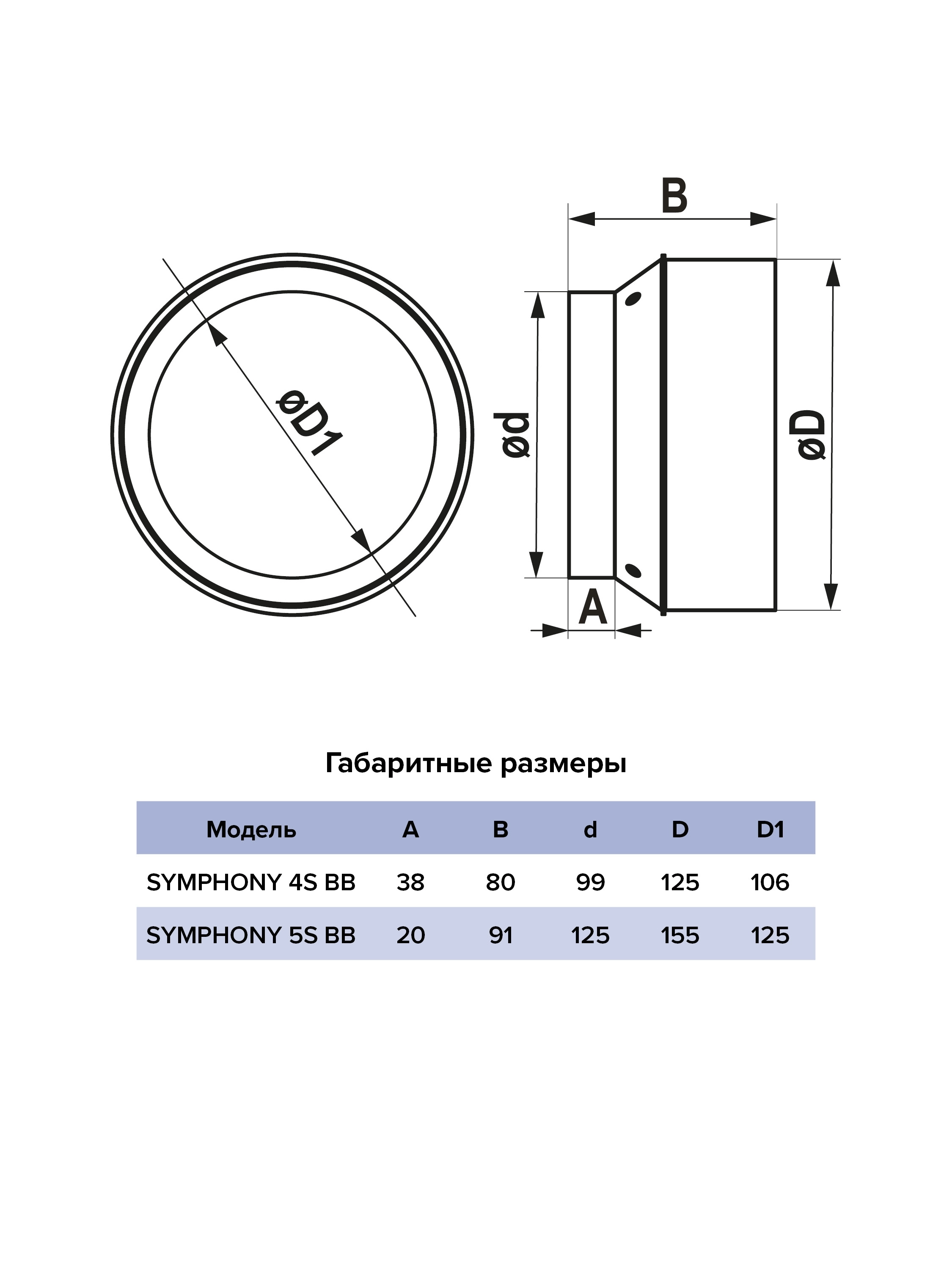

· Easy installation: The 100 mm flange diameter simplifies connection with air ducts of the same size.

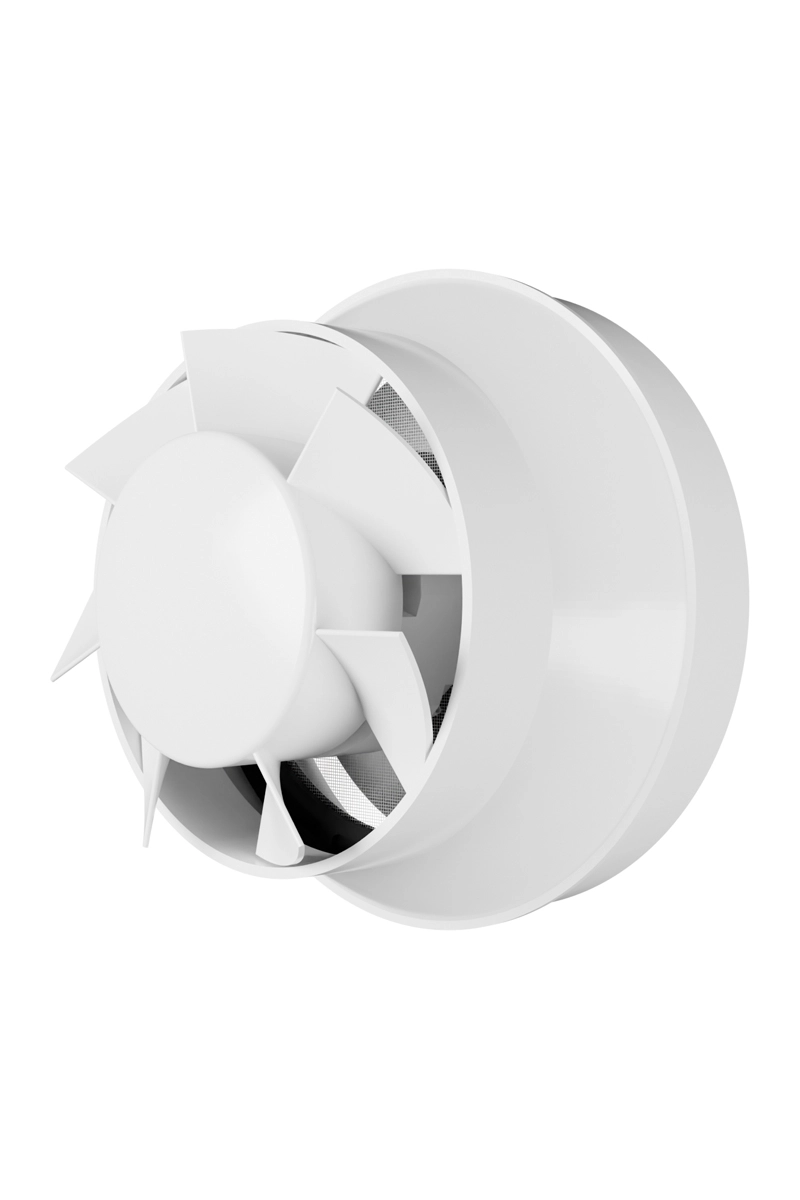

• The SYMPHONY 4S BB features a ball-bearing mounted motor that enables installation in both walls and ceilings. With built-in overheating protection, the fan automatically shuts off when the motor winding temperature exceeds +130°C (+266°F). This maintenance-free motor guarantees up to 40,000 hours of continuous operation.

Materials and Design:

· Grille material: 1.5 mm thick galvanized steel. The fan housing is constructed from high-strength ABS plastic.

· Aesthetic finish: The decorative grille features a white powder-coated finish with a moiré silk texture.

You get a durable product whose visible components seamlessly blend with white matte stretch ceiling surfaces. This solution maintains your ceiling's design integrity while keeping ventilation completely discreet.
