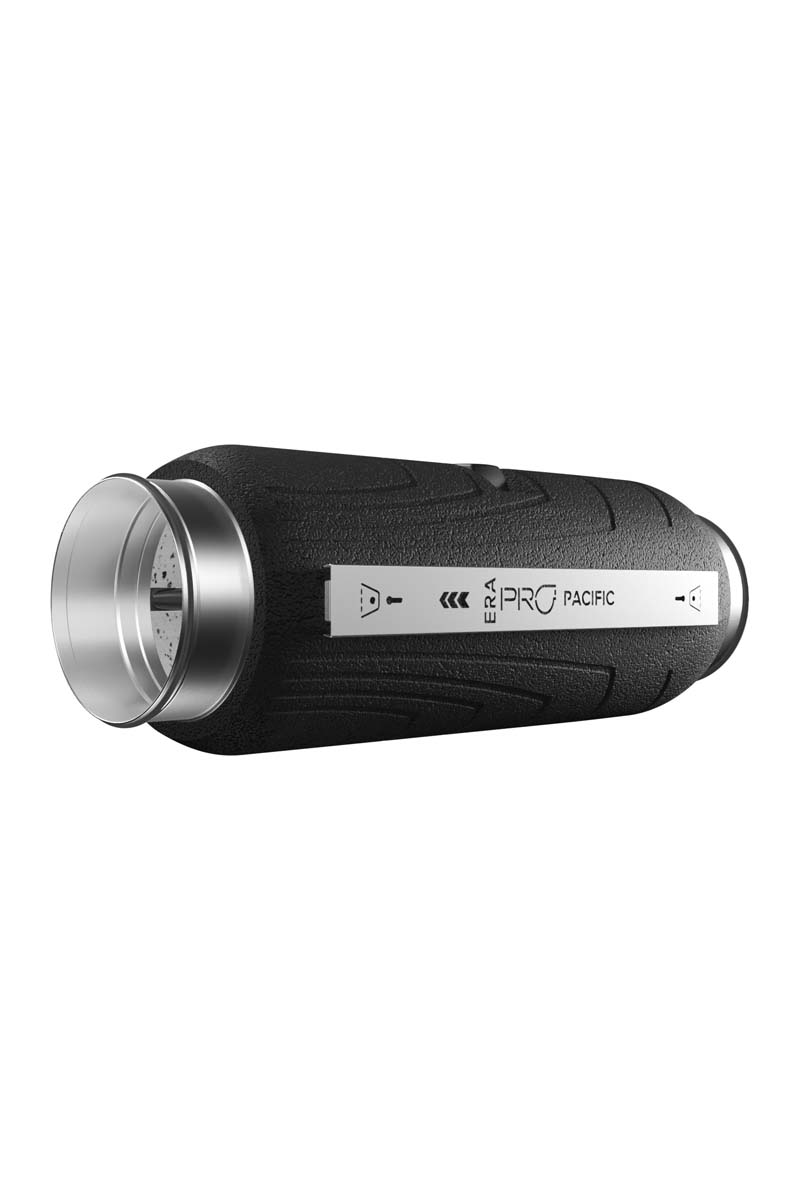

Duct fan PACIFIC 250 2SP ERA PRO

PACIFIC 250 2SP

The PACIFIC mixed duct fan in a special noise-insulated casing belongs to the quiet fans (noise level from 33 dB(A))* and is designed for premises with high requirements for low noise level. It is used in exhaust ventilation systems in industrial, public and residential buildings when there is a lack of natural draught, as well as for fresh air supply.

Areas of Application:

• residential real estate: apartments, private houses;
• commercial real estate: hotels, office spaces, restaurant and café halls, cinemas, retail spaces, staff lounges;
• public buildings: hospitals, schools, universities, sports complexes.

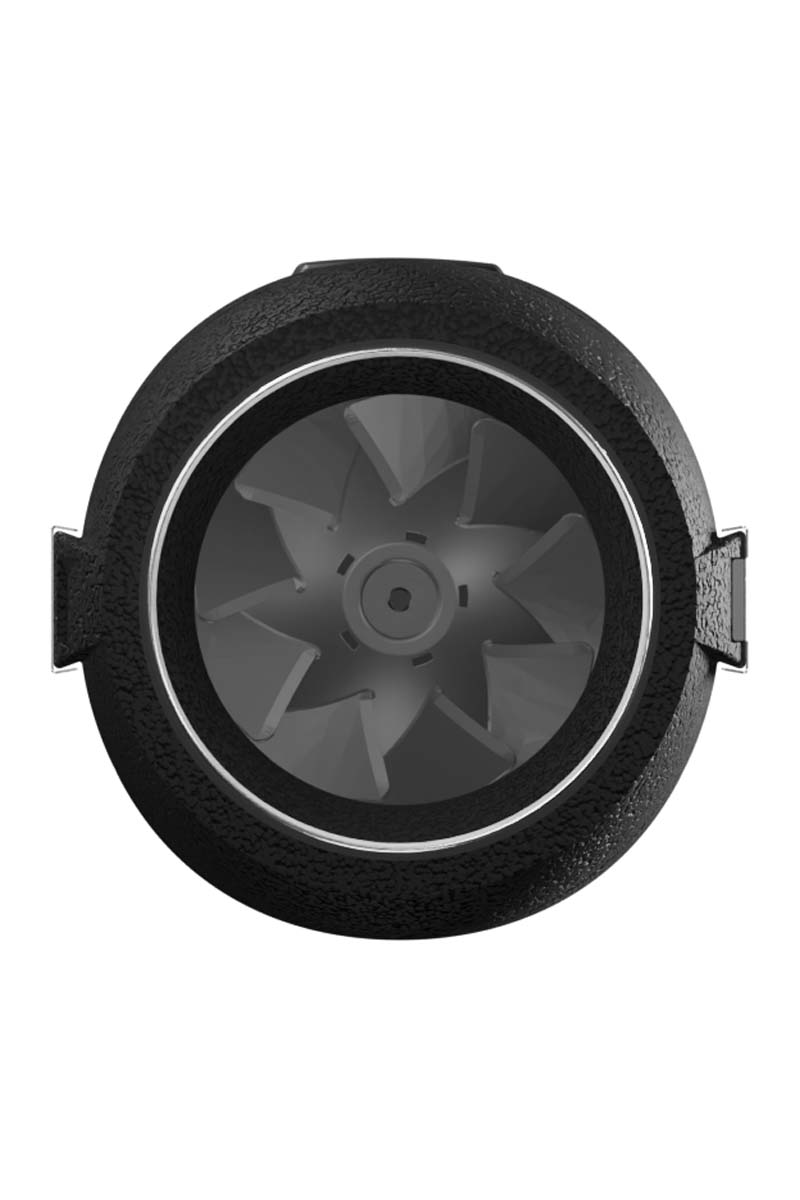

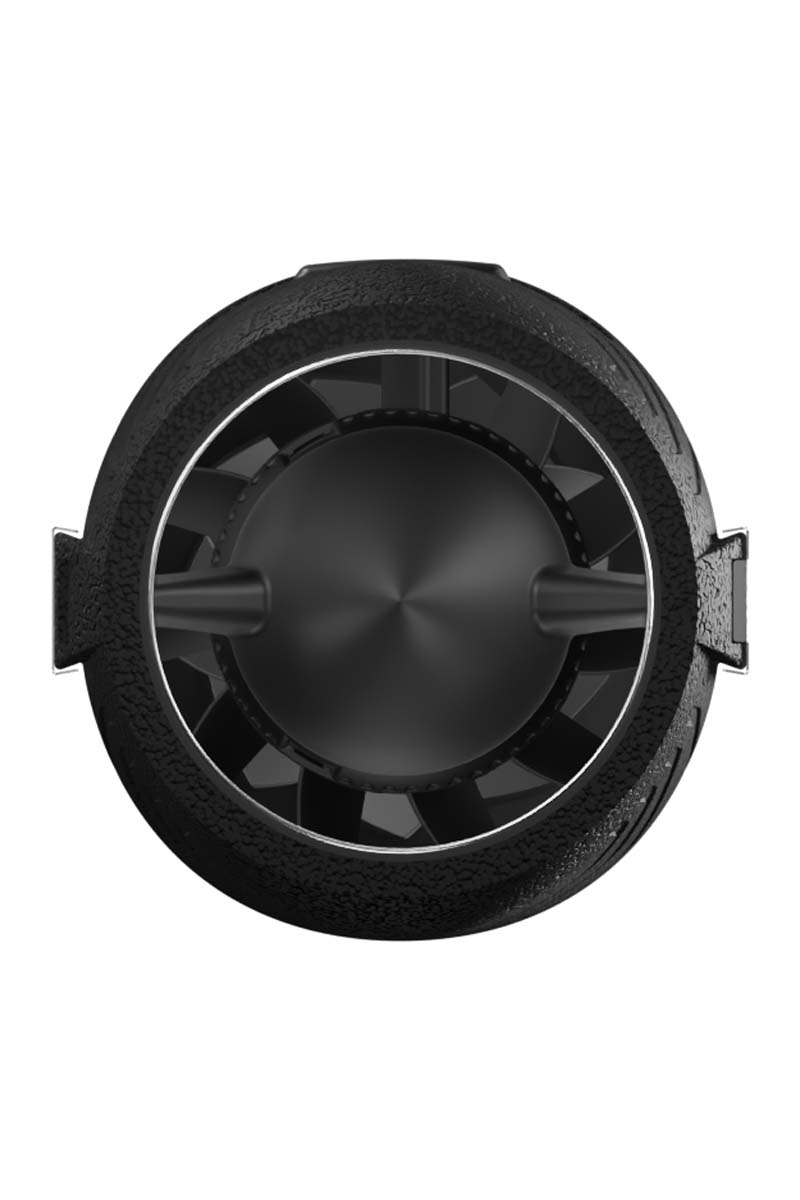

The PACIFIC with its mixed impeller and two-speed single-phase ball bearing motor combines the advantages of centrifugal (high pressure) and axial (high airflow) fans.

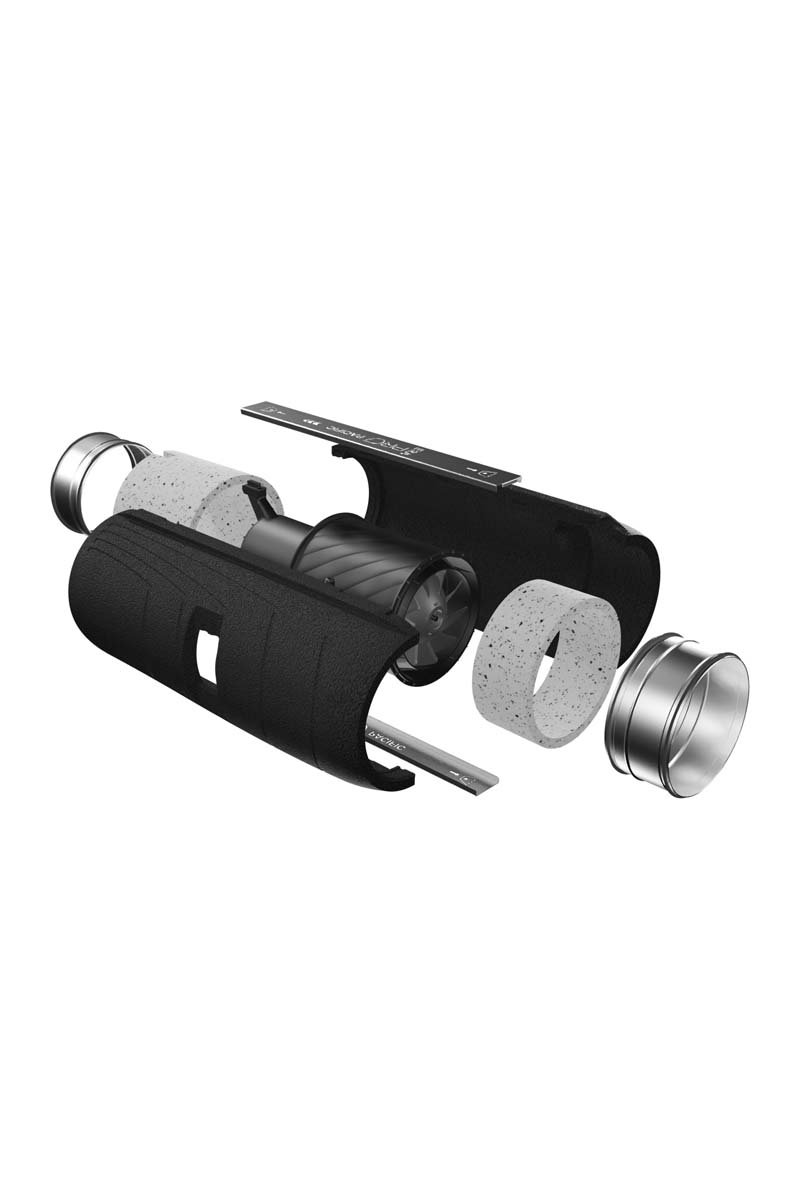

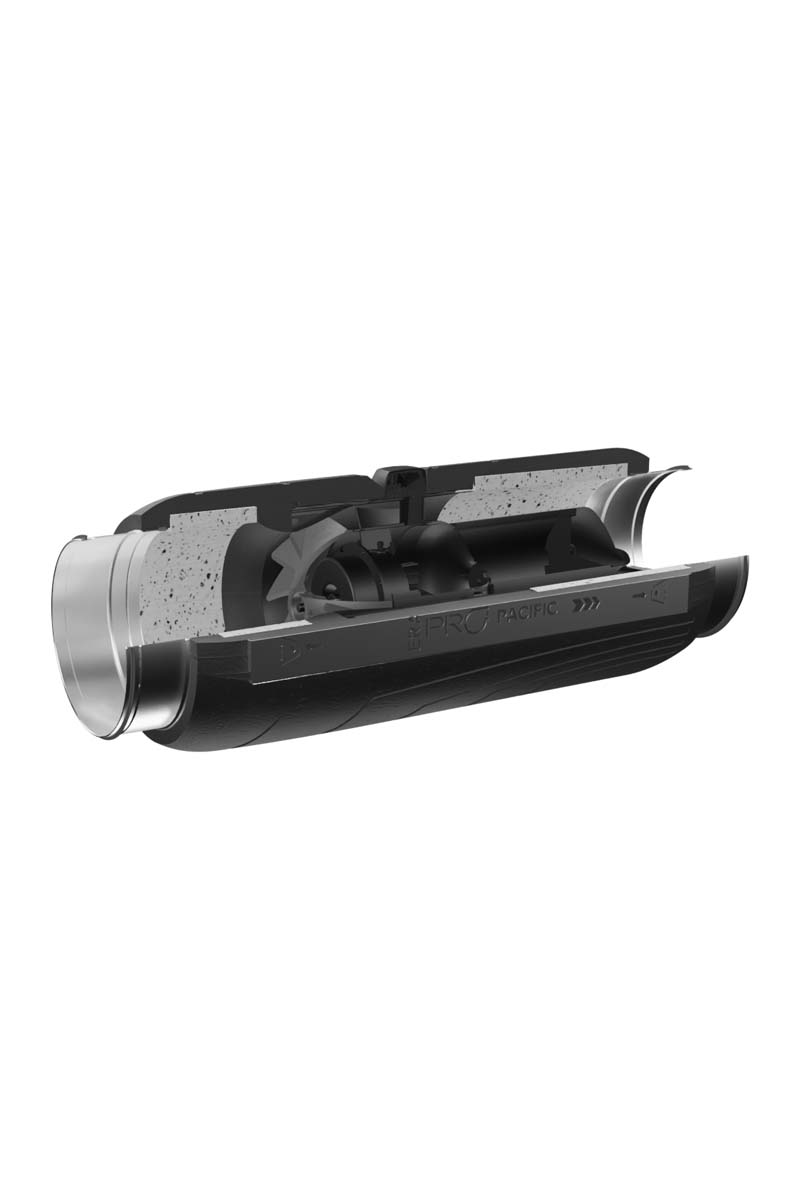

Lightweight and durable polypropylene foam housing with noise-absorbing inserts eliminates vibrations transmitted from the fan to the ducts, reducing fan noise.

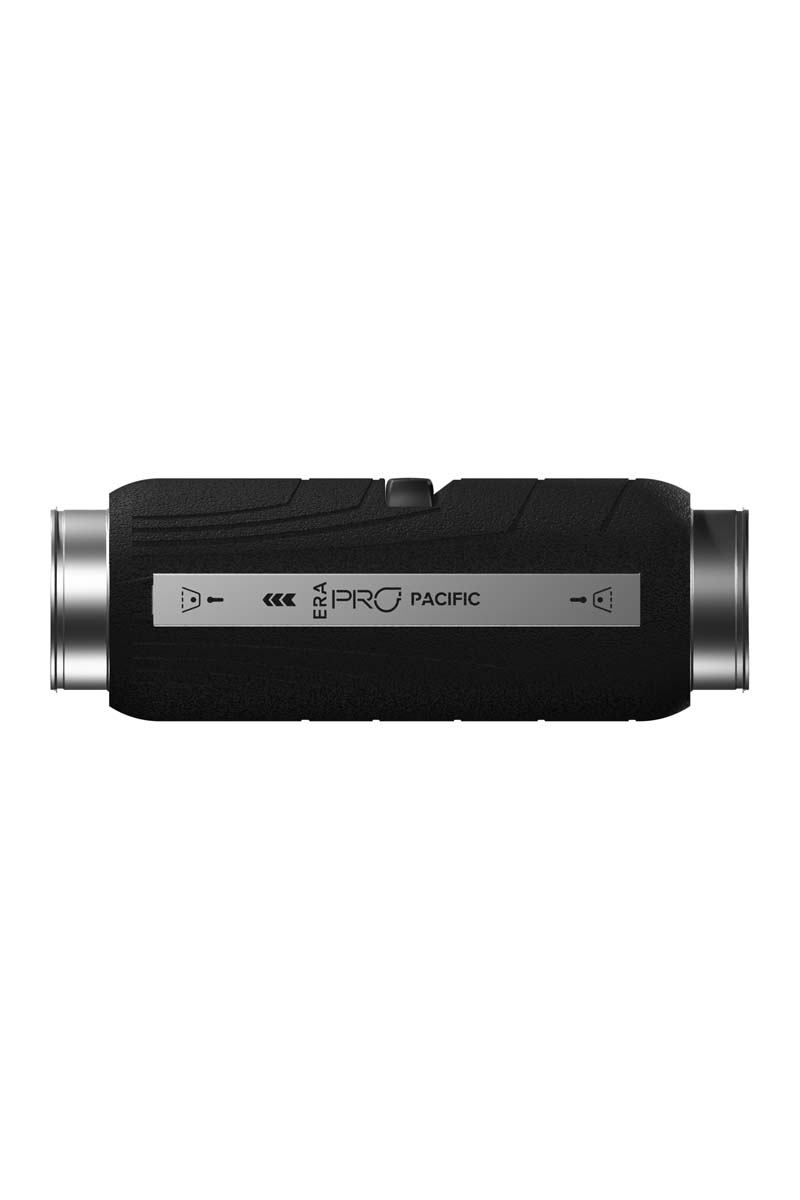

Mounting is carried out without additional brackets thanks to the metal rail. Installation is possible on both horizontal and vertical planes.

Stamped galvanized steel flanges with rubber seals simplify installation into the duct system.

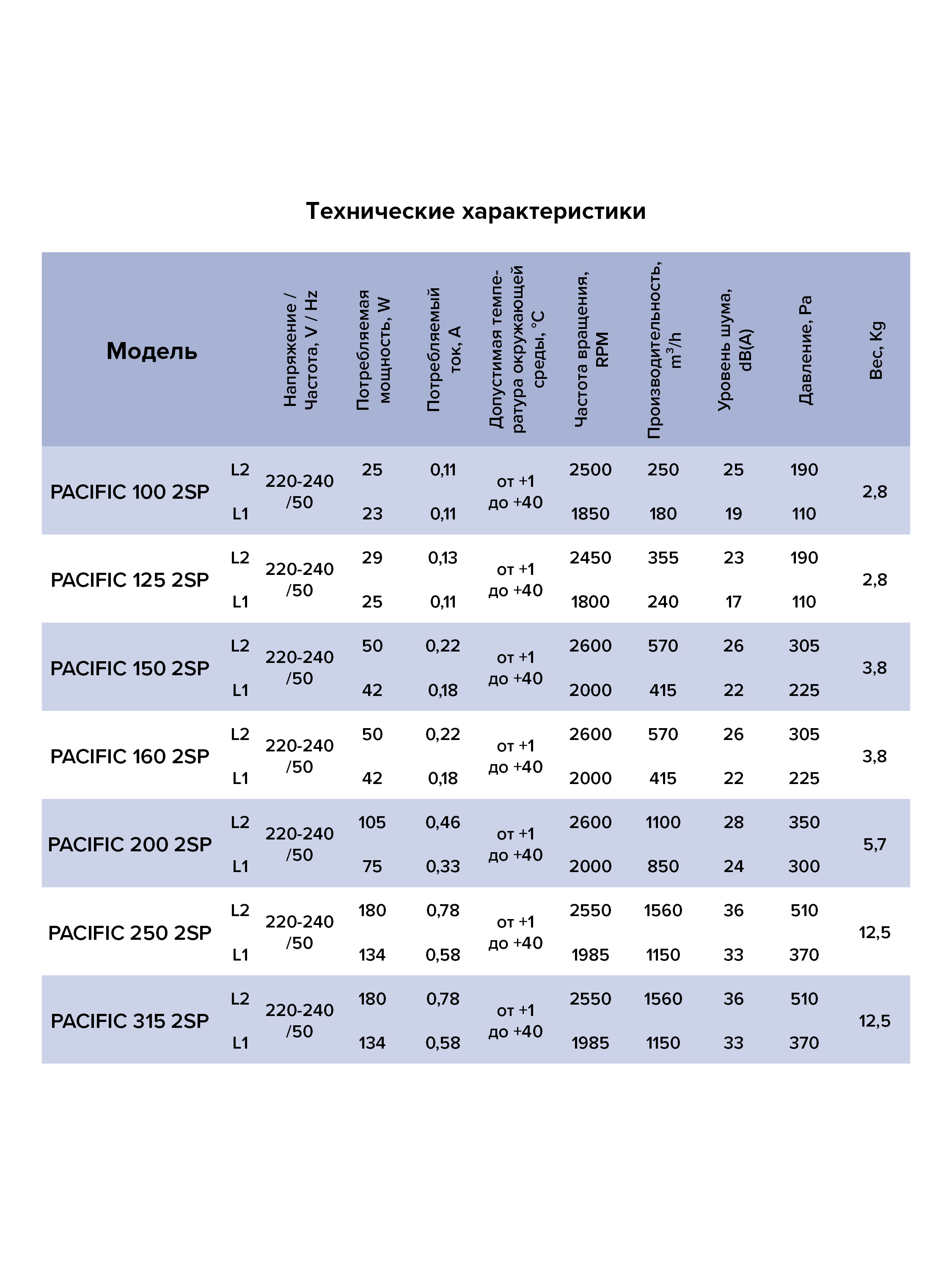

• Performance: from 1150 to 1560 m³/h;
• Operating temperature: from +1 to +40 °С;
• Ingress protection rating: IPX4.

* among commercial fans manufactured by ERA Group
