EXCELLENT 4C BB Matt black Domestic fan

Article: excellent 4c bb matt black

Design features
Suitable for painting, wallpapering or light decorative plastering
Magnetic front panel
Ball-bearing motor
ABS-plastic
Steel
Back-draught shutter with transparent polyether wings
Cutout overheating protection
5-year warranty
Ingress protection rating for electrical equipment
Concealed mounting

The EXCELLENT fan series combines flawless quality, elegant design, and ultimate comfort for your home.
Key features of the EXCELLENT 4:
• Fan capacity: 95 m³/h – ensures efficient air exchange in the room.

Key features of the series:
• Durability & longevity: Steel grille combined with an ABS plastic fan housing that resists yellowing and lasts the entire product lifecycle.
• Reliable motor: Features self-lubricating sleeve bearings for extended operation.
• Overheat protection: Equipped with a one-time thermal fuse (TermoFuse®) that triggers at +130°C winding temperature.
• Dust & moisture resistance: Standard IP24 rating for household ventilation units.
• Quality assurance: Backed by a 5-year warranty.

Precision Installation & Effortless Maintenance:

Hidden Installation:
The fan is installed during rough-in construction, becoming virtually invisible after finishing. Minimalist design: only a slim 15mm frame remains visible post-installation.

Seamless Integration:
With its ultra-slim depth and compact decorative panel, the fan blends flawlessly into walls while delivering full-system performance in a discreet package.

Tool-Free Servicing:
The smart design enables fan replacement in just a few simple steps when needed.

Precision Adjustability:
• Four individually adjustable magnetic mounts allow millimeter-perfect cover height tuning
• Magnetic alignment feet ensure perfect centering with uniform perimeter gaps

  • Article excellent 4c bb matt black
  • Trade mark ERA
  • Material ABS plastic, Steel
  • Color Black
  • Color (decorative) Black
  • Protection class IP24
  • Quantity in transport package 4 pcs

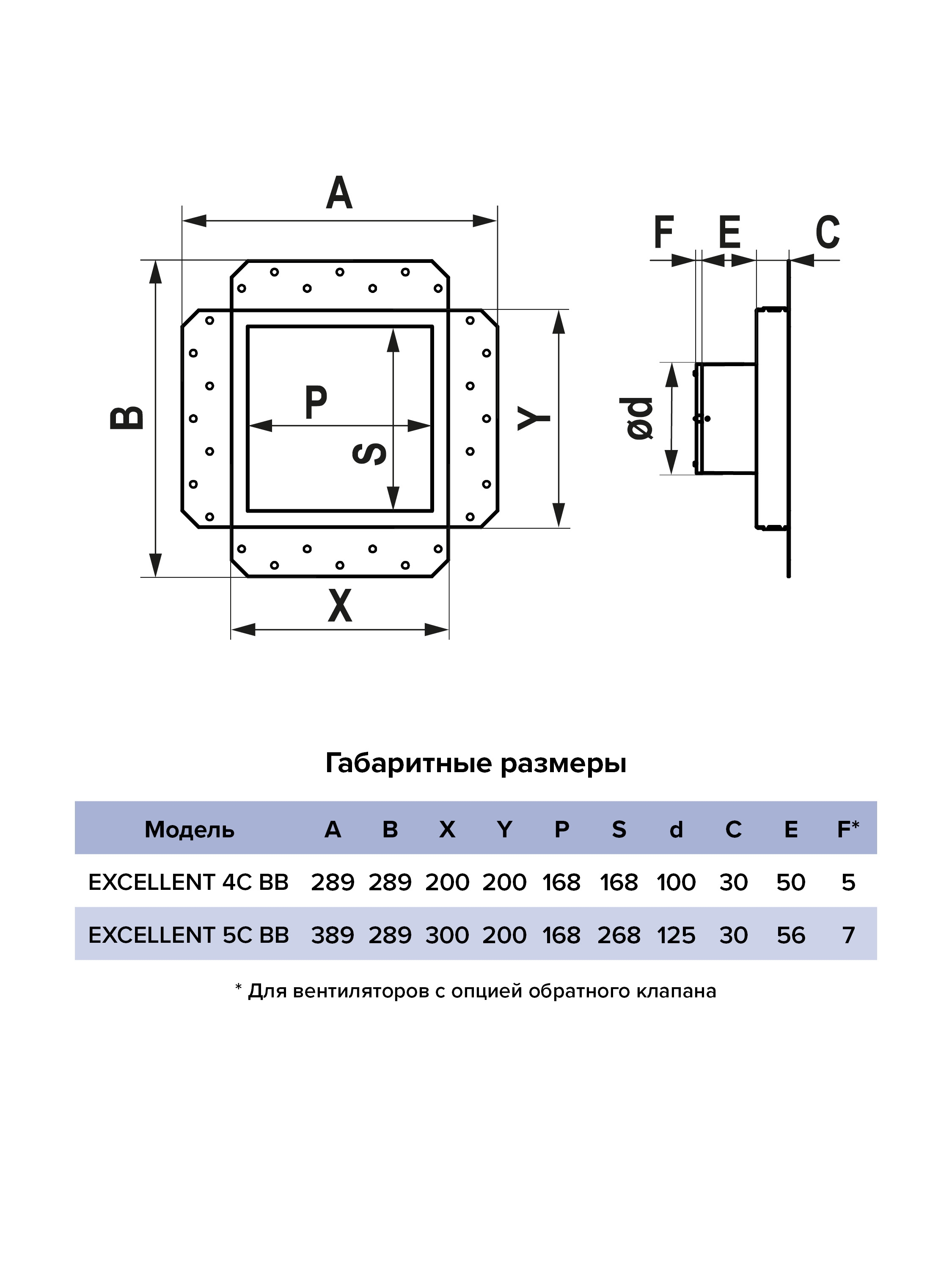

  • Height, mm 289
  • Width, mm 289
  • General depth, mm 85
  • Altitude mounting, mm 200
  • Mounting width, mm 200
  • Installation diameter, mm 100
  • Diameter external, mm 100

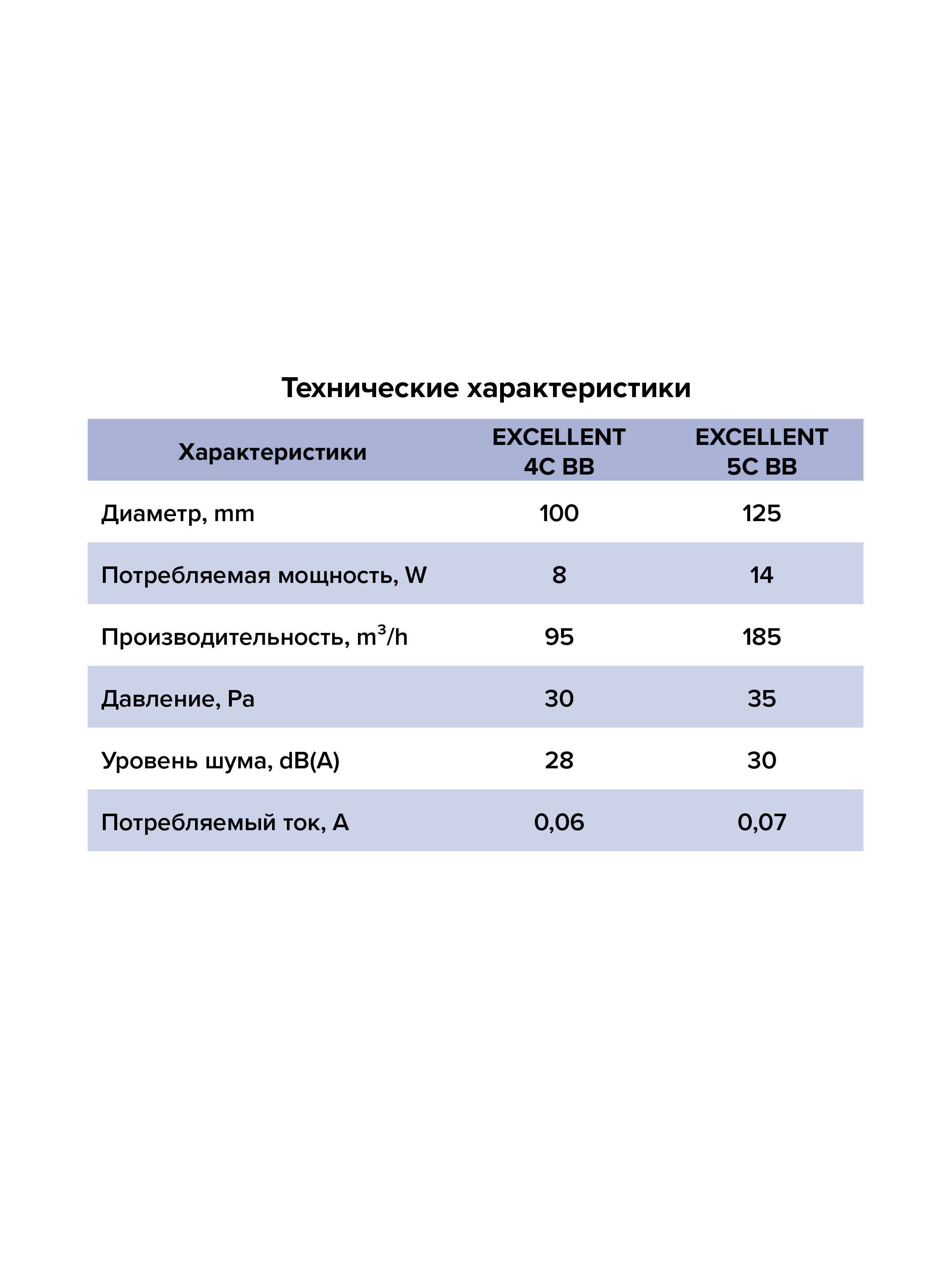

  • Performance, M3 / H 95
  • Noise level, DB (A) 28
  • Power consumption, w 8
  • Pressure, PA 30
  • Voltage, V. 220
  • Location Wall
  • Working mechanism Axial
  • Principle of ventilation Exhaust
  • Control Mechanical
  • Country of origin Russia
  • Gross weight, kg 1.012
  • Net weight, kg 0.92
  • Bezel thickness 30
  • Check valve depth when closed 5
  • Blade material ABS plastic
  • Warranty 5 years
