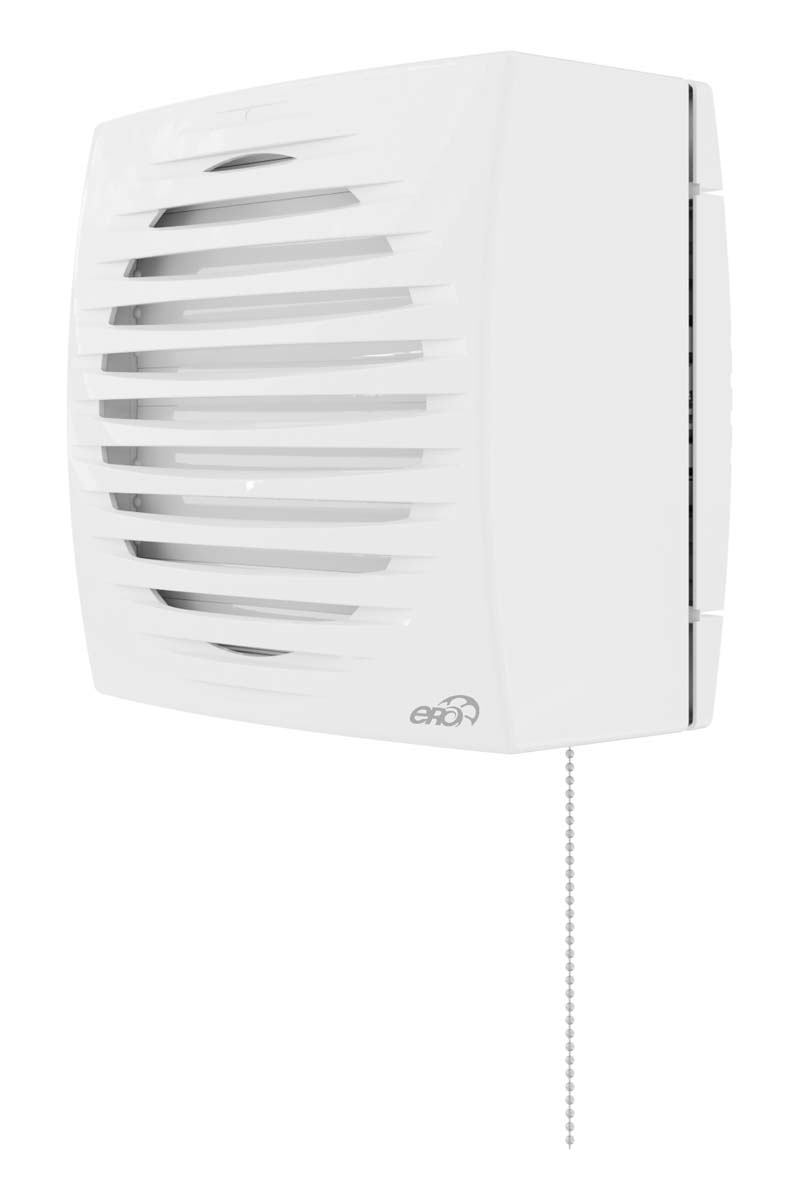

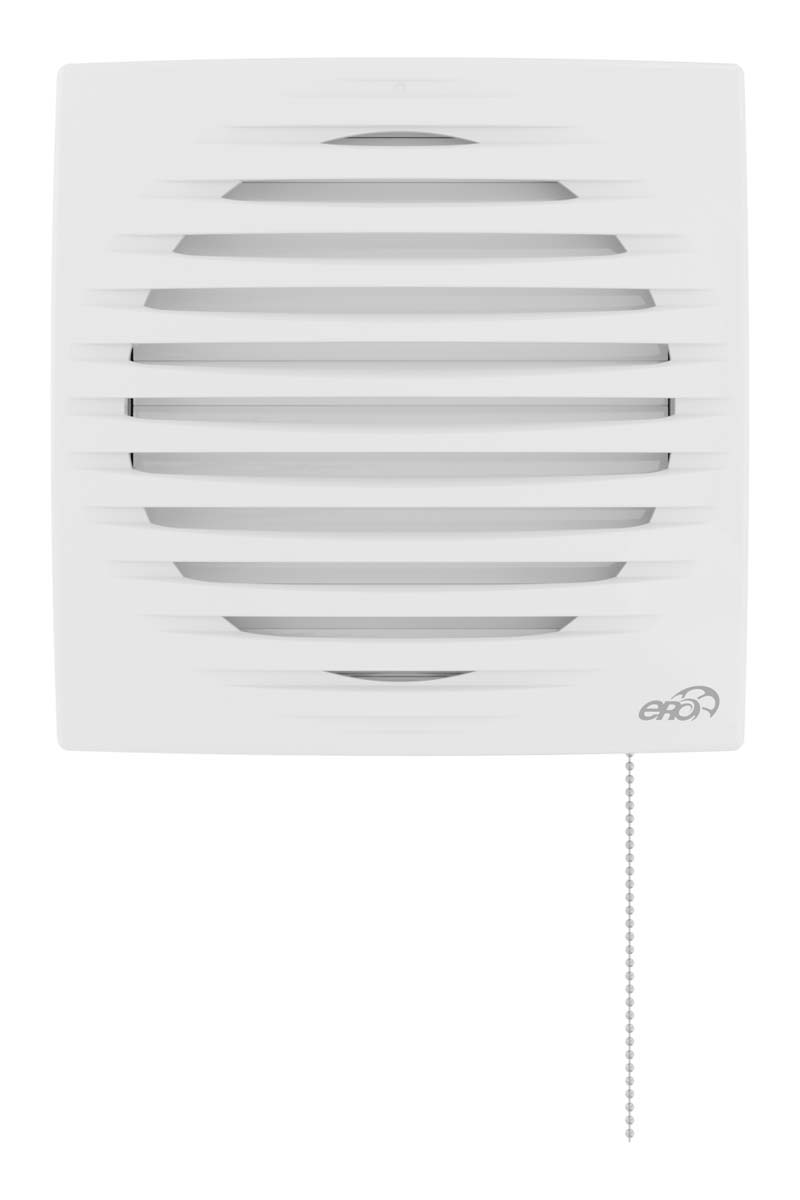

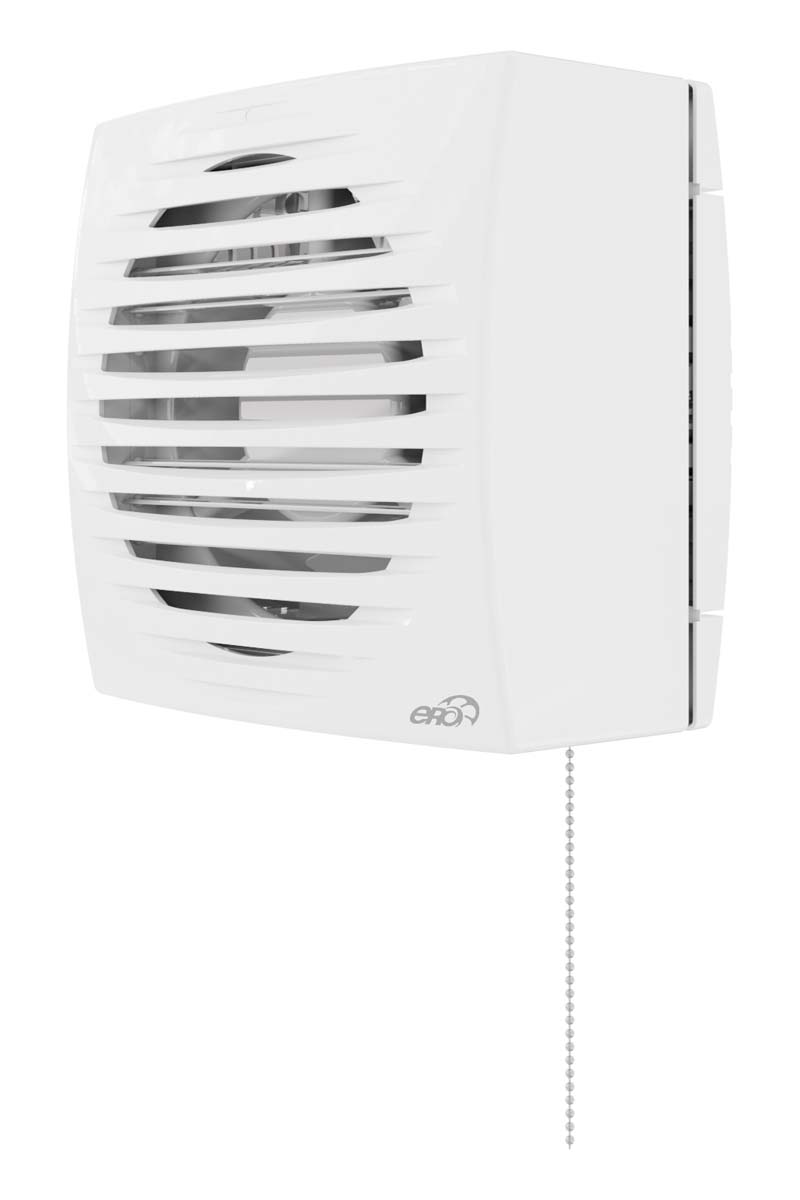

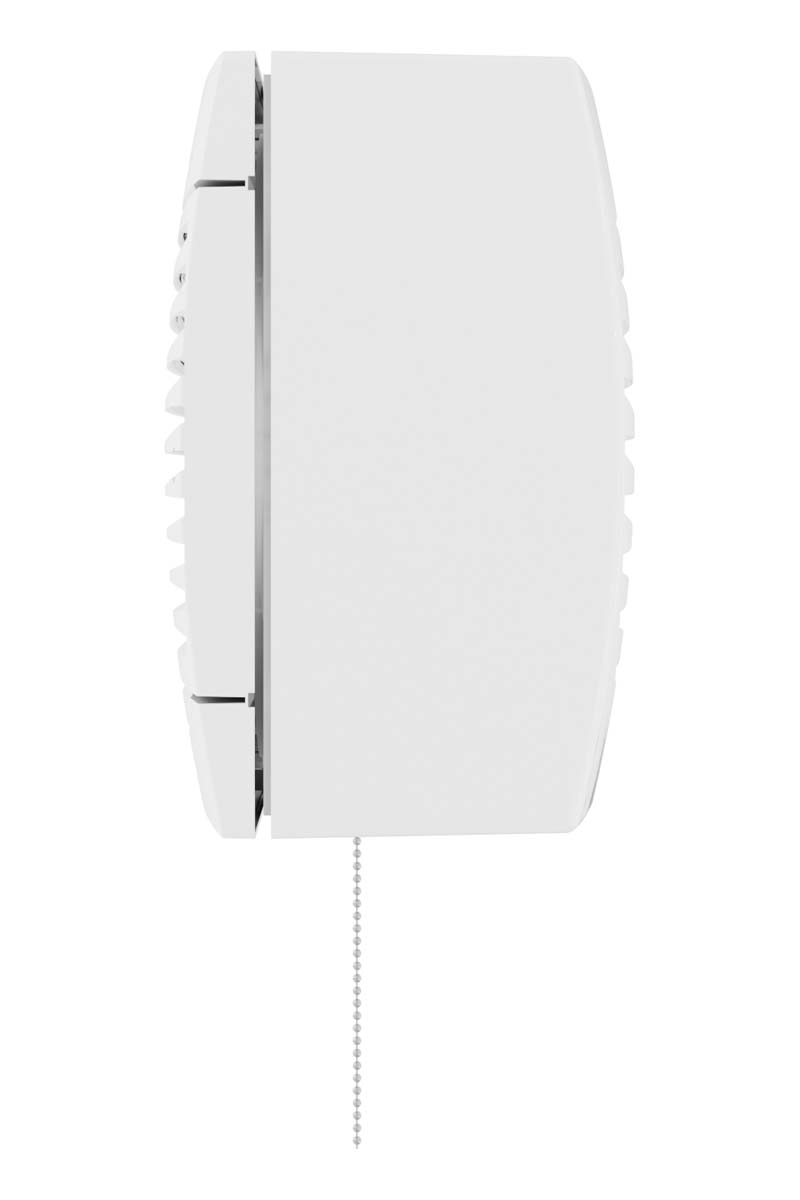

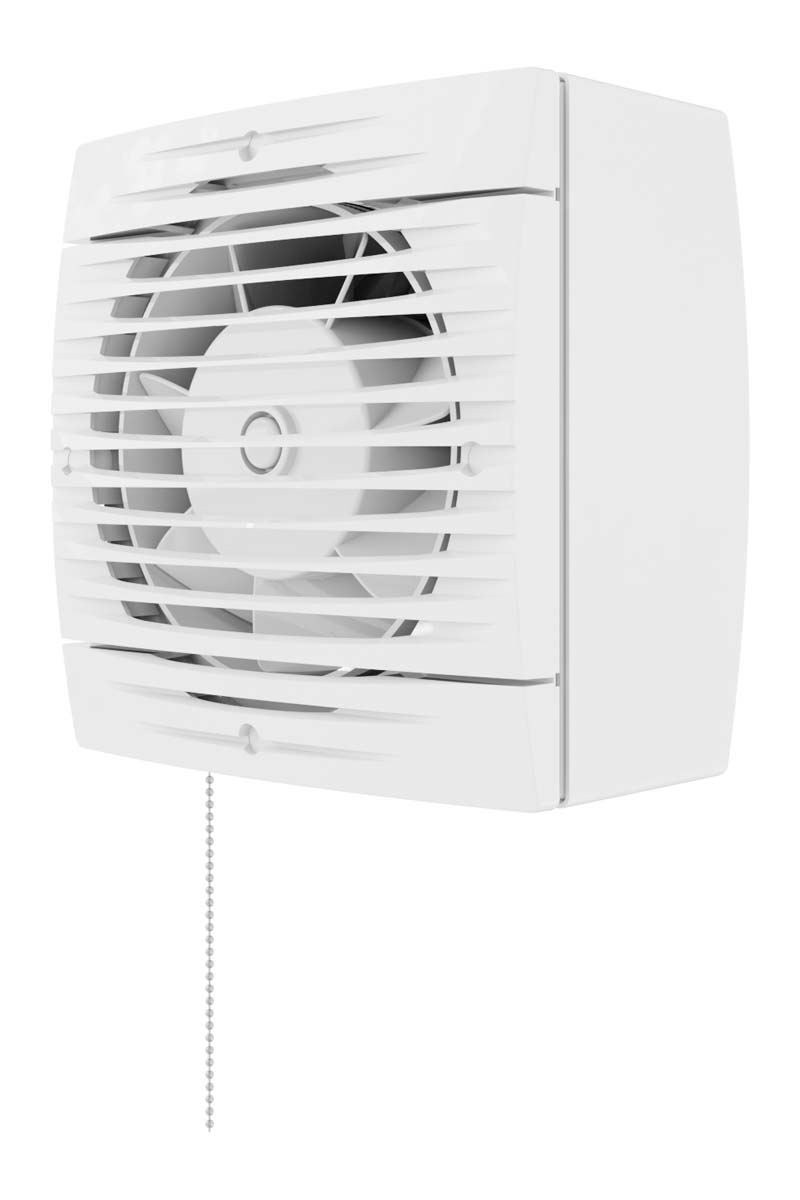

ERA WF D150 Window Fan, Ball Bearing, Auto Louvers, Draft Reversing Switch, 2 Speeds

Article: WF 150A BB-04

Design features
Ball-bearing motor
Indoor installation
Automatic shutters
ABS-plastic
Pull-cord switch
2 speeds
Cutout overheating protection
2-year warranty
Protection against water sprayed from all directions
For exhaust ventilation only

WF 150A-04 BB

The WF axial fan is designed for forced ventilation in indoor spaces. The model is intended for window mounting. It can be installed in rigid partitions with a thickness of 4–32 mm, walls, window frames with single glazing of 4 mm, or multi-layer glazing up to 32 mm thick.

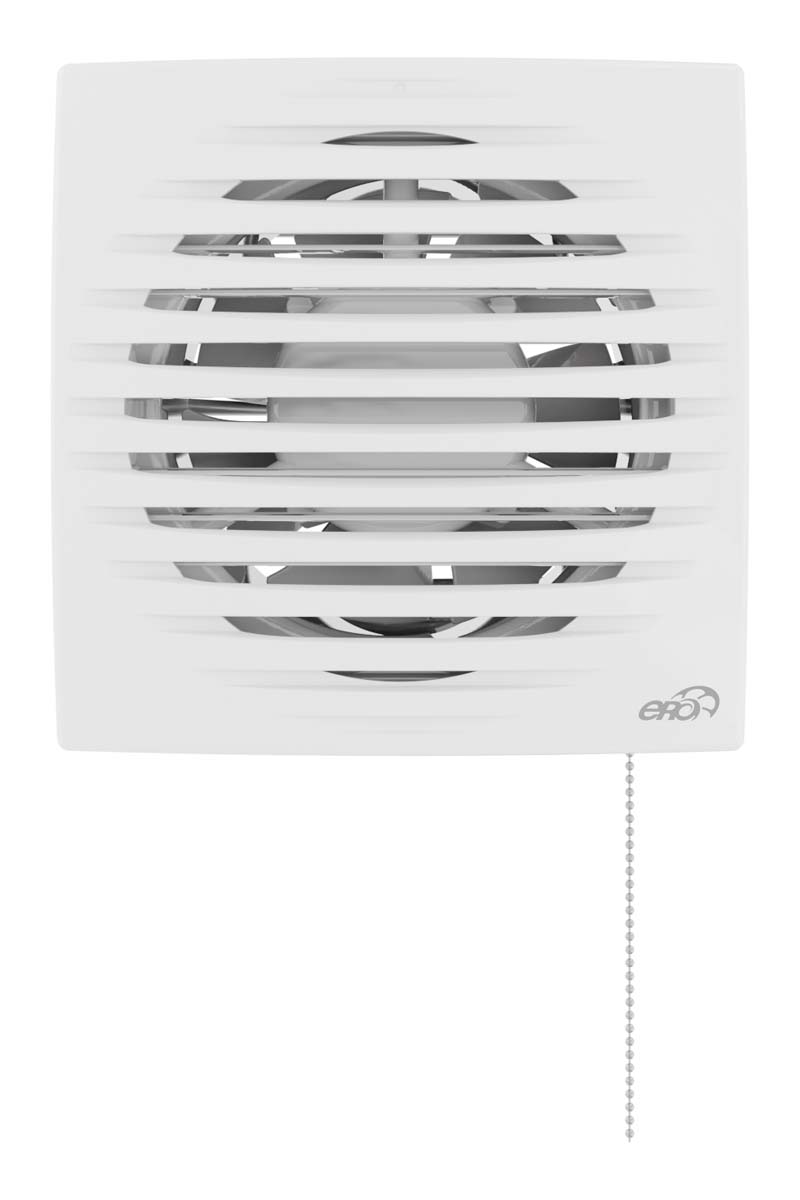

The fan housing is made of ABS-plastic. The unit is equipped with automatic louvers that open a few seconds after being switched on. When switched off, the louvers return to the closed position. Thanks to the ball-bearing motor, the fan maintains its capacity and service life regardless of its orientation when installed in the window structure.

The operating speed is switched using the built-in pull-cord switch.

  • Noise level — 33 dB(A)
  • Ingress protection rating — IPX4
  • Warranty period — two years.
  • Item code WF 150A BB-04
  • Trade mark ERA
  • Color White
  • Color (decorative) White
  • Protection class IPХ4

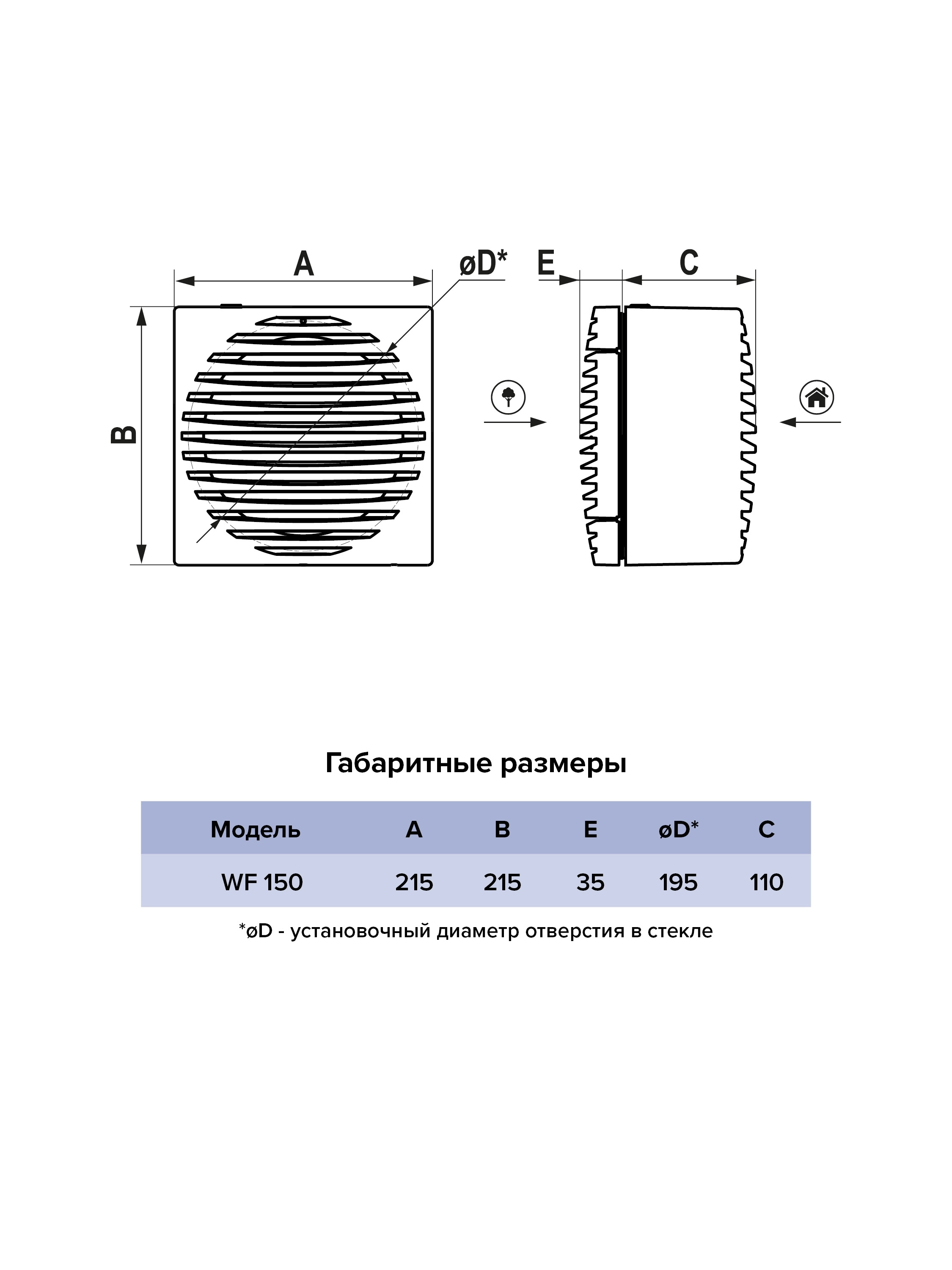

  • Height, mm 215
  • Width, mm 215
  • Altitude mounting, mm 260
  • Mounting width, mm 260
  • Installation diameter, mm 195

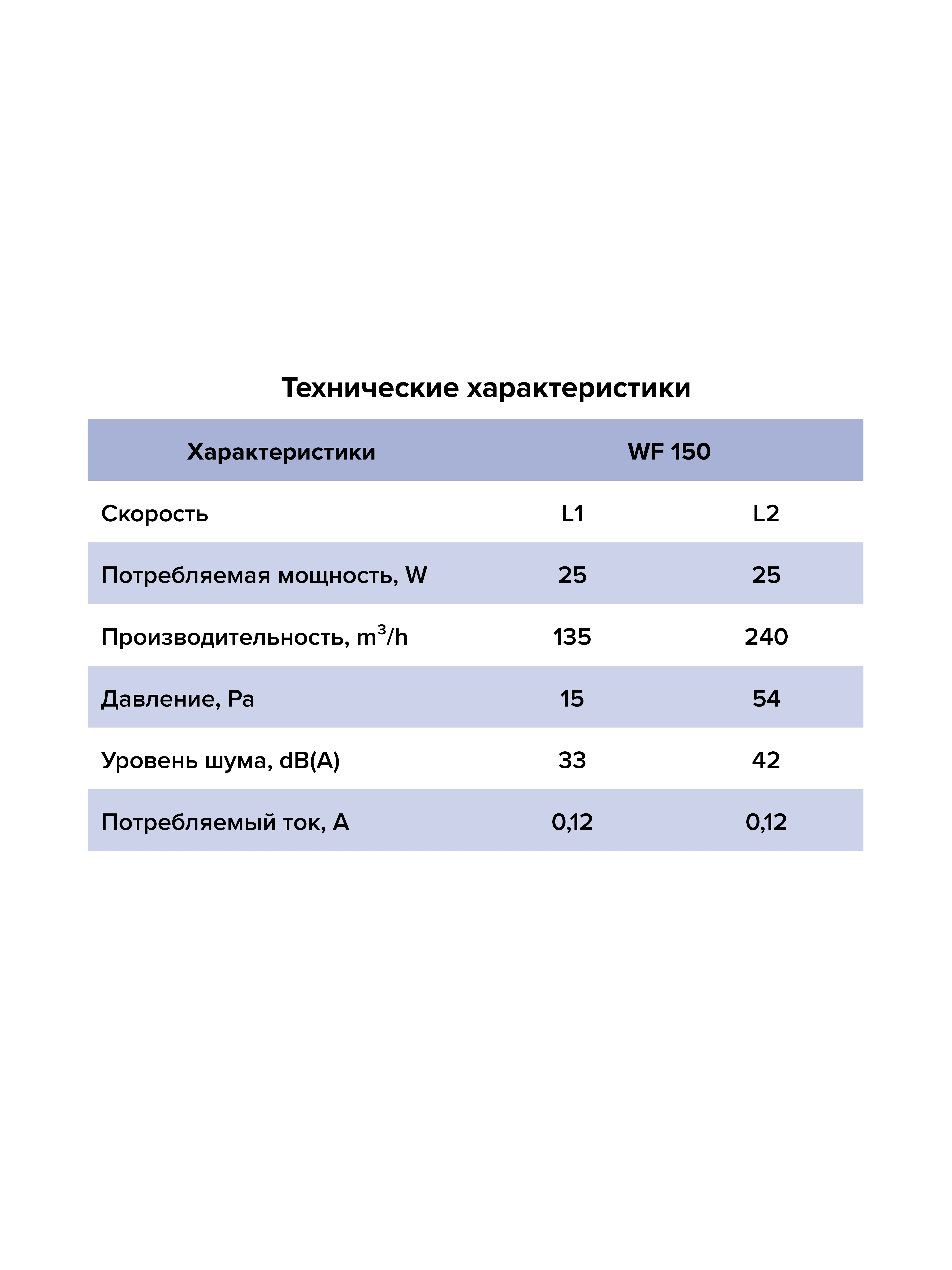

  • Производительность min, m3/h 135

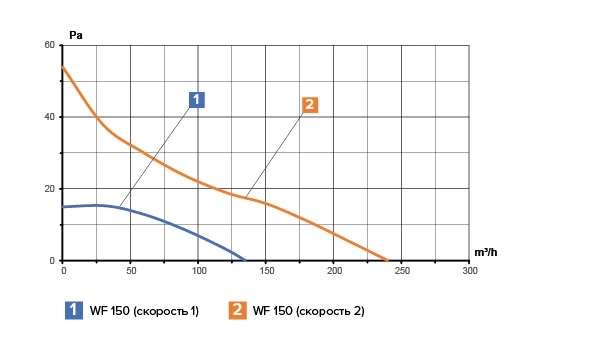

  • Performance max, m3/h 240
  • Power consumption, w 25
  • Pressure min, Pa 15
  • Pressure max, Pa 54
  • Voltage, V. 220
  • Location Window
  • Working mechanism Axial
  • Principle of ventilation Exhaust
  • Country of origin Russia
  • Gross weight, kg 1.8
  • Net weight, kg 1.6
  • Уровень шума min, dB(A) 33
  • Noise level max, dB(A) 42
  • Bezel thickness 110
  • Case material ABS plastic
  • Warranty 2 years

WF150A RU leaflet
