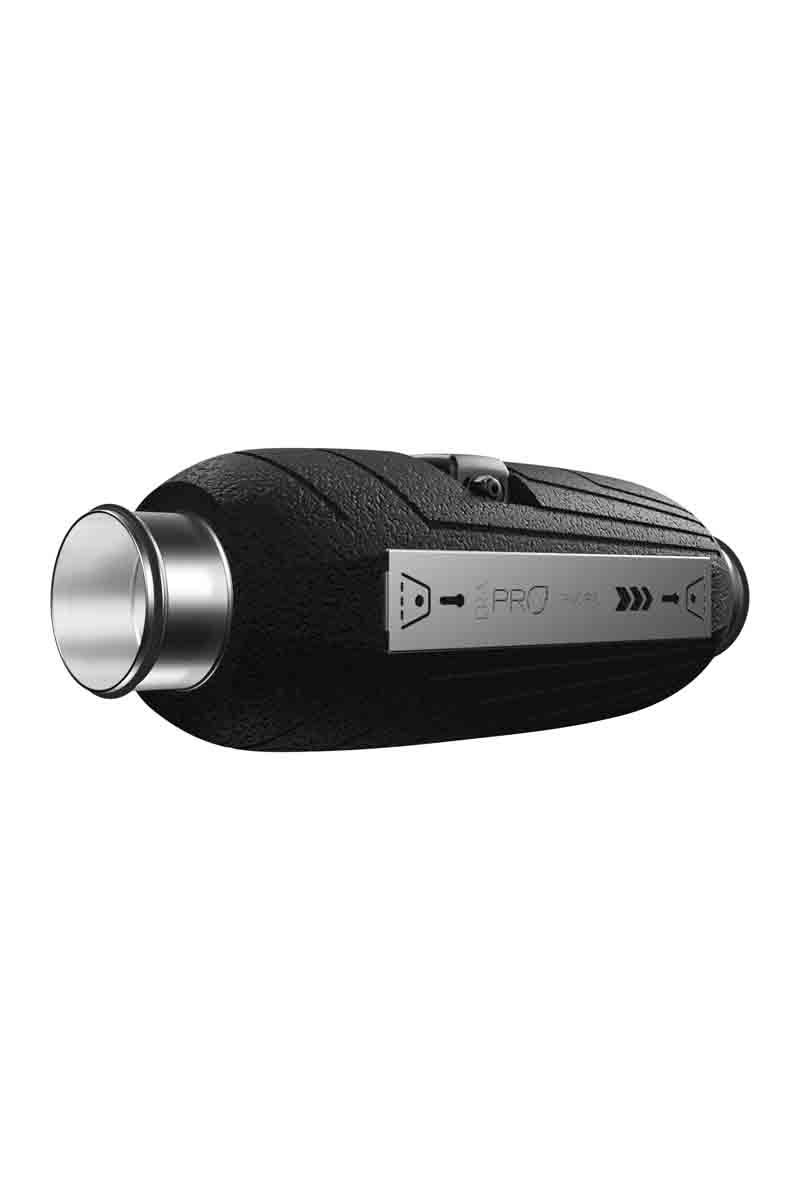

Duct fan PACIFIC 125 2SP ERA PRO

Article: PACIFIC 125 2SP

Design features
Ball-bearing motor
Speed-switch button
2 speeds
Self-resettable overheating protection with a restart
3-year warranty
Ingress protection rating for electrical equipment
Mounting without additional bracket
Polypropylene foam housing
Noise-isolated enclosure

The PACIFIC mixed duct fan in a special noise-insulated casing belongs to the quiet fans (noise level from 17 dB(A))* and is designed for premises with high requirements for low noise level. It is used in exhaust ventilation systems in industrial, public and residential buildings when there is a lack of natural draught, as well as for fresh air supply.
Areas of Application:

residential real estate: apartments, private houses.

commercial real estate: hotels, office spaces, restaurant and café halls, cinemas, retail spaces, staff lounges.

public buildings: hospitals, schools, universities, sports complexes.

The PACIFIC with its mixed impeller and two-speed single-phase ball bearing motor combines the advantages of centrifugal (high pressure) and axial (high airflow) fans.
Lightweight and durable polypropylene foam housing with noise-absorbing inserts eliminates vibrations transmitted from the fan to the ducts, reducing fan noise.

Mounting is carried out without additional brackets thanks to the metal rail. Installation is possible on both horizontal and vertical planes.

Stamped galvanized steel flanges with rubber seals simplify installation into the duct system.

Performance: from 240 to 335 m³/h

Operating temperature: from +1 to +40 °С

Ingress protection rating for electrical equipment is IPX4

* among commercial fans manufactured by ERA Group

  • Article PACIFIC 125 2SP
  • Trade mark ERA PRO
  • Material Полипропилен
  • Color Black
  • Color (decorative) Black
  • Protection class IP X4
  • Quantity in transport package 60 pcs
  • Height, mm 233
  • Width, mm 236
  • General depth, mm 690
  • Installation diameter, mm 123
  • Internal diameter, mm 123
  • Производительность min, m3/h 240
  • Performance max, m3/h 355
  • Power consumption, w 50
  • Pressure min, Pa 110
  • Pressure max, Pa 190
  • Voltage, V. 220
  • Location Channel
  • Working mechanism Axial
  • Control Mechanical
  • Country of origin Russia
  • Gross weight, kg 4.05
  • Net weight, kg 3.24
  • Уровень шума min, dB(A) 17
  • Noise level max, dB(A) 23
  • Warranty 3 years
Паспорт Pacific EN (2025) A4 ERA-PRO
