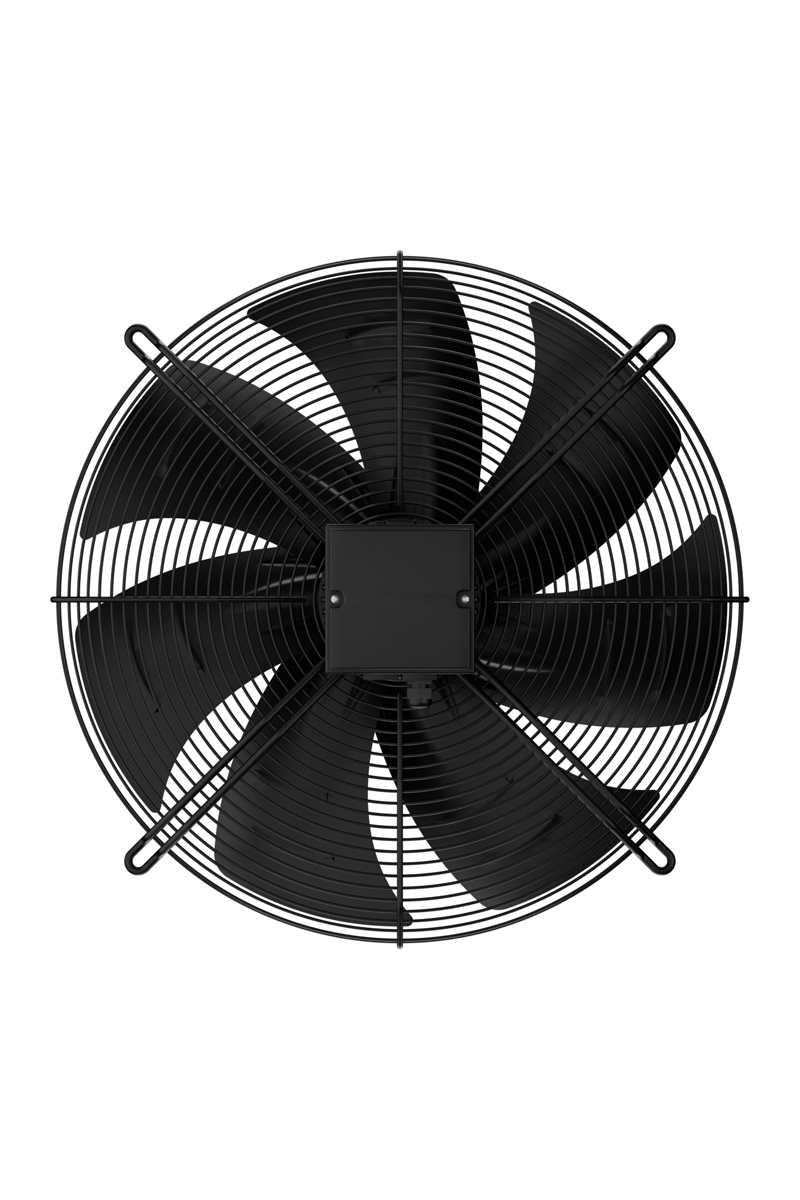

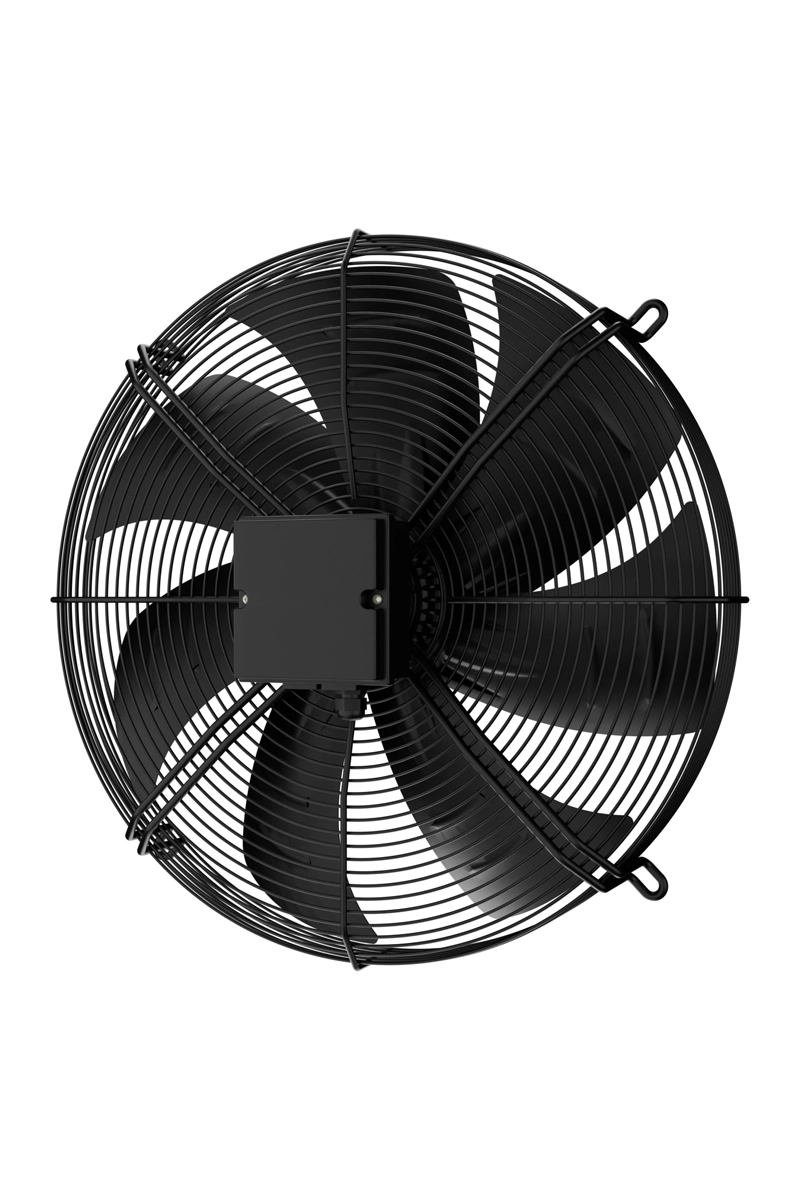

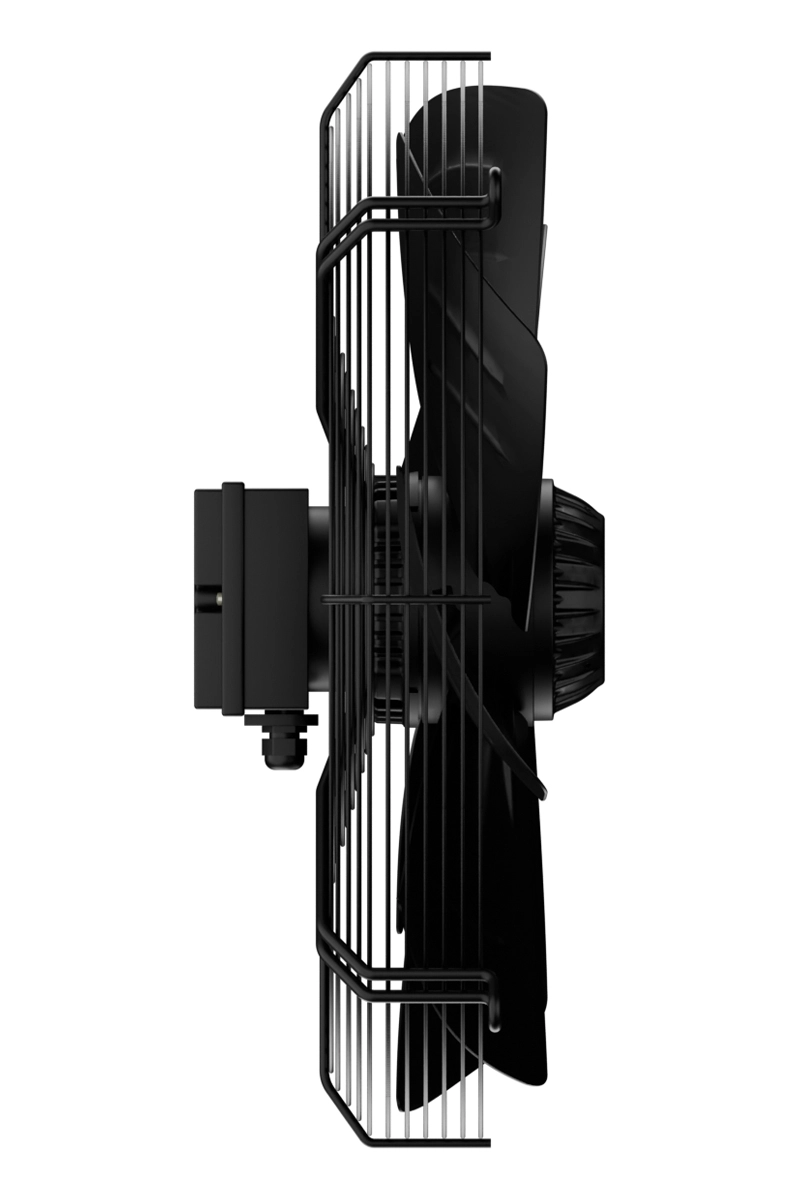

Axial surface-mounted fan STORM GR 710 6D ERA PRO

Article: STORM GR 710 6D

Design features
Ball-bearing motor
Steel
Cutout overheating protection
1-year warranty
Ingress protection rating for electrical equipment
Файл WORD
  • Article STORM GR 710 6D
  • Trade mark ERA PRO
  • Material Steel
  • Color Black
  • Color (decorative) Black
  • Protection class IP X4
  • Quantity in transport package 1 pieces

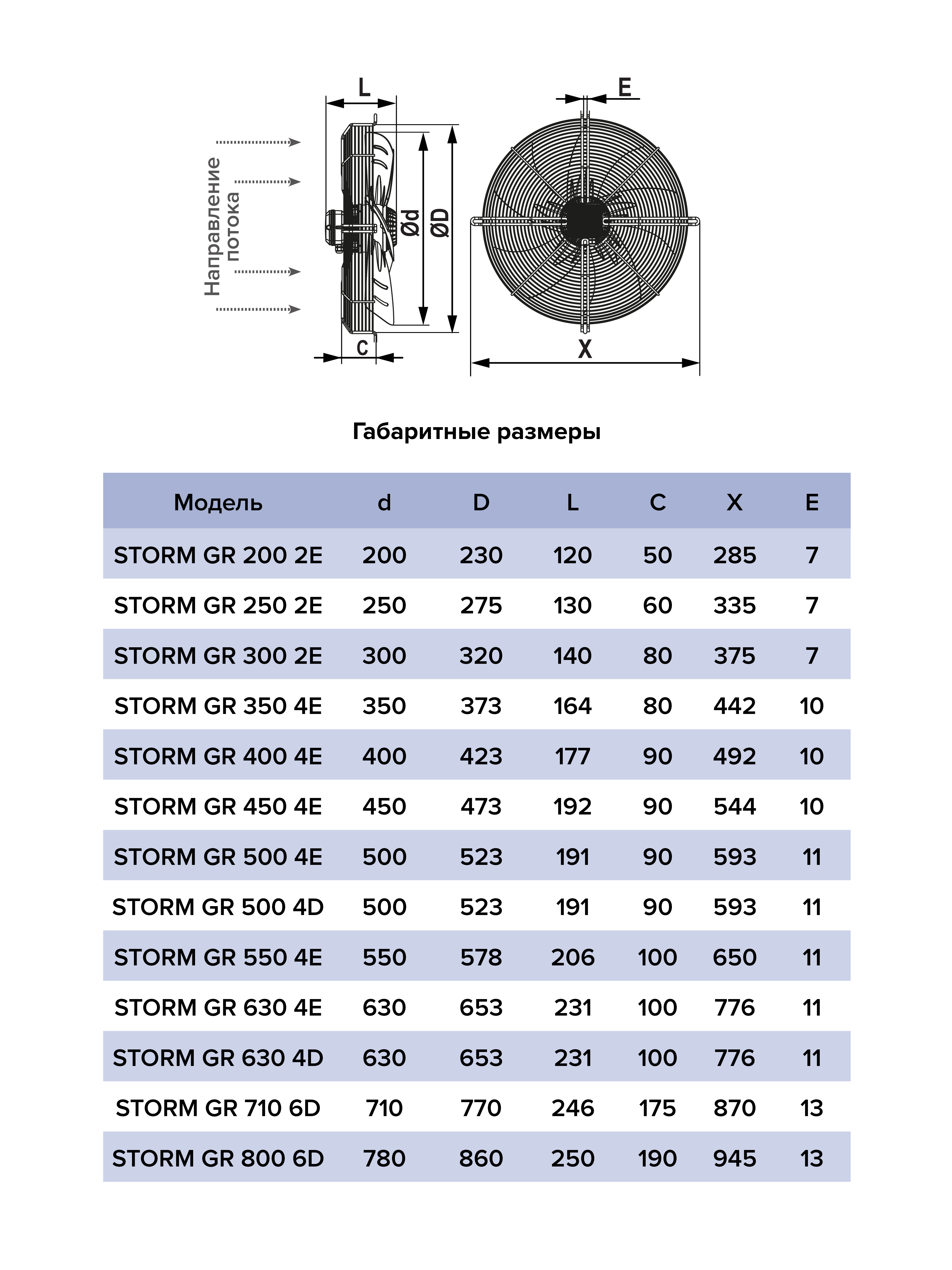

  • Height, mm 870
  • Width, mm 870
  • General depth, mm 246
  • Altitude mounting, mm 750
  • Mounting width, mm 750
  • Installation diameter, mm 710
  • Diameter external, mm 770

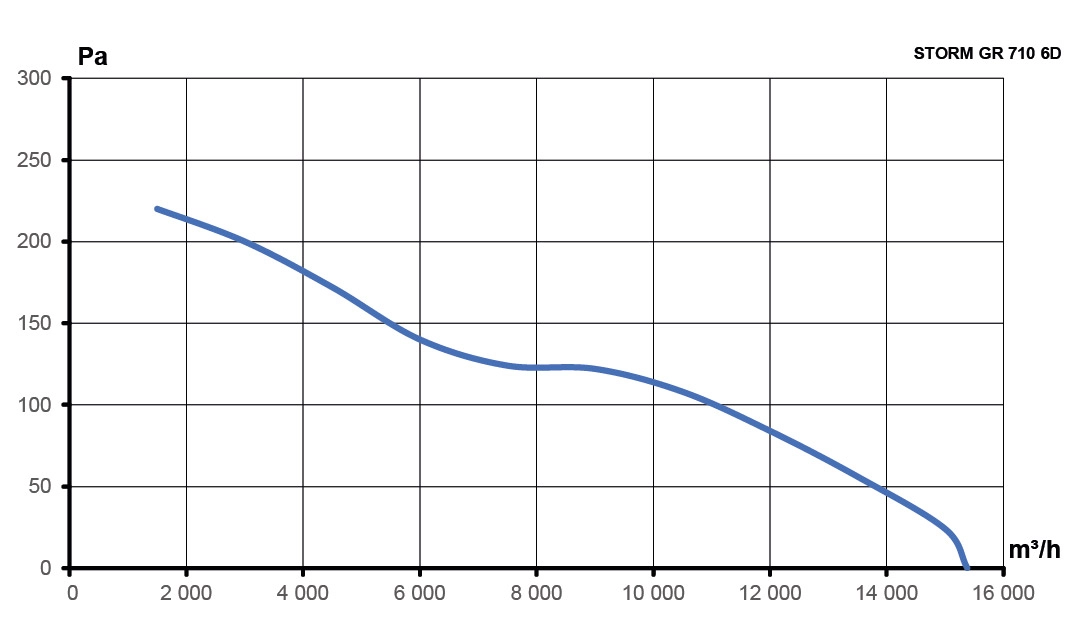

  • Performance, M3 / H 15380
  • Noise level, DB (A) 76
  • Power consumption, w 1100
  • Pressure, PA 228
  • Voltage, V. 380
  • Location Axial
  • Working mechanism Wall-ground
  • Principle of ventilation Supply and exhaust
  • Control Mechanical
  • Country of origin China
  • Gross weight, kg 24
  • Net weight, kg 22
  • Warranty 1 year
