Commercial fan TYPHOON 100 2SP ERA PRO

Article: TYPHOON 100 2SP

Design features
100 best goods of Russia
Ball-bearing motor
Speed-switch button
2 speeds
Mounting with screws
Self-resettable overheating protection with a restart
3-year warranty
Ingress protection rating for electrical equipment
Axial inline mixed-flow fans are designed for supply-exhaust ventilation systems of residential, public and industrial buildings. Fan’s body, a central part with the motor, impeller and implemented terminal box, is detachable and allows easy maintenance. It is fastened to the nozzle parts with hose clamps. Two-speed fans. The speed is controlled with cable switching inside the terminal box or with a traditional switch button (supplied with the device). Asymmetric design of the terminal box ensures easy mains cable connection. Two-speed single-phase ball-bearing motor with an extended service life. Cutout overheating protection and automatic reset. Horizontal and vertical installation. Fastening to the mounting surface is done with screws.

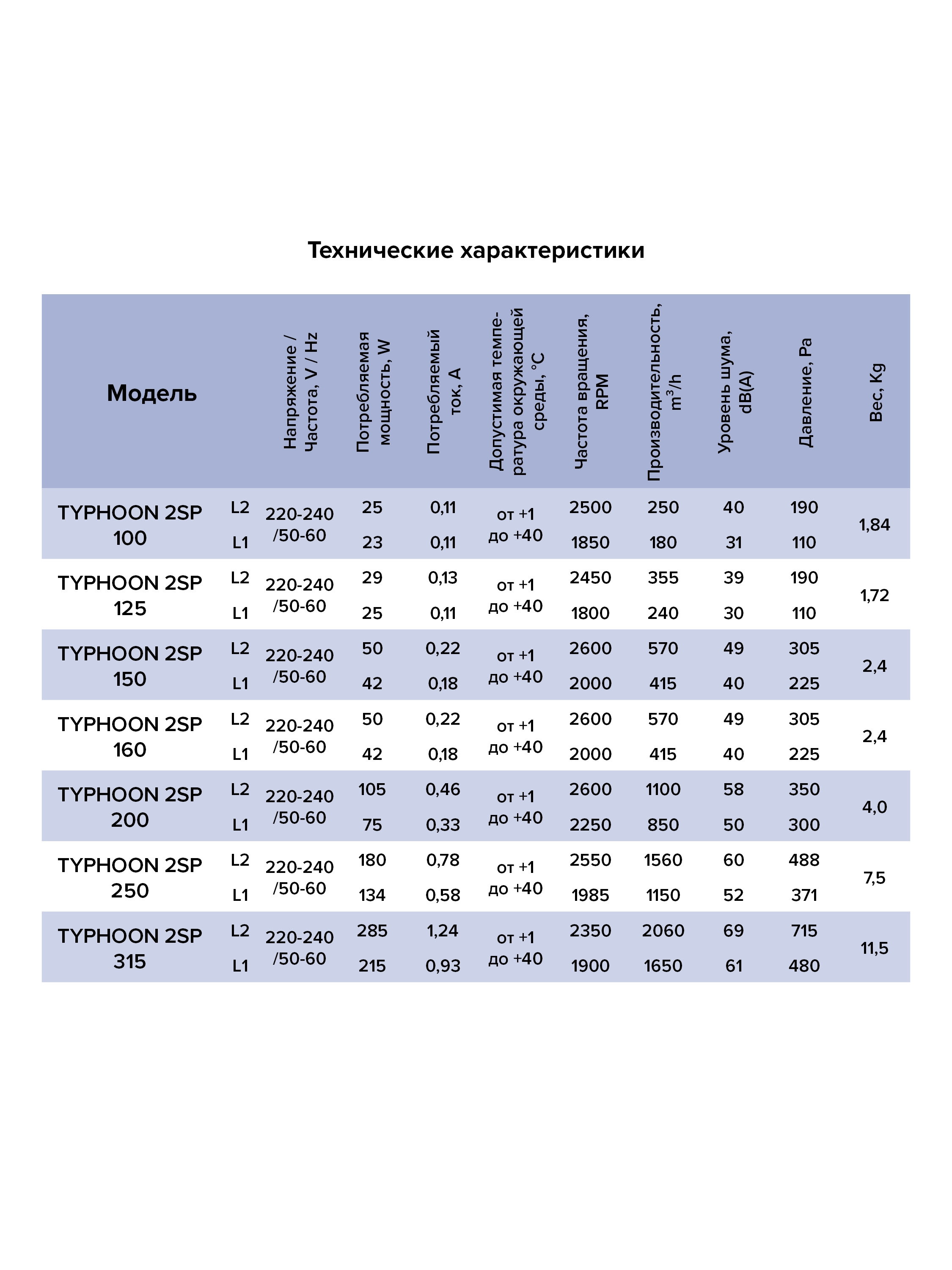

  • Article TYPHOON 100 2SP
  • Trade mark ERA PRO
  • Material Plastic
  • Color Gray
  • Quantity in transport package 6 pcs
  • Height, mm 216
  • Width, mm 173
  • General depth, mm 371
  • Installation diameter, mm 99
  • Diameter external, mm 99
  • Performance, M3 / H 180/250
  • Производительность min, m3/h 180
  • Performance max, m3/h 250
  • Noise level, DB (A) 31/40
  • Pressure min, Pa 110
  • Pressure max, Pa 190
  • Voltage, V. 230
  • Location Channel
  • Working mechanism Axial
  • Principle of ventilation Supply and exhaust
  • Control Mechanical
  • Country of origin Russia
  • Gross weight, kg 2.3
  • Net weight, kg 1.8
  • Power consumption min, W 23
  • Power consumption max, W 25
  • Warranty 3 years
CB Test Certificate
GULF Type certificate
Model range
TYPHOON 125 2SP
