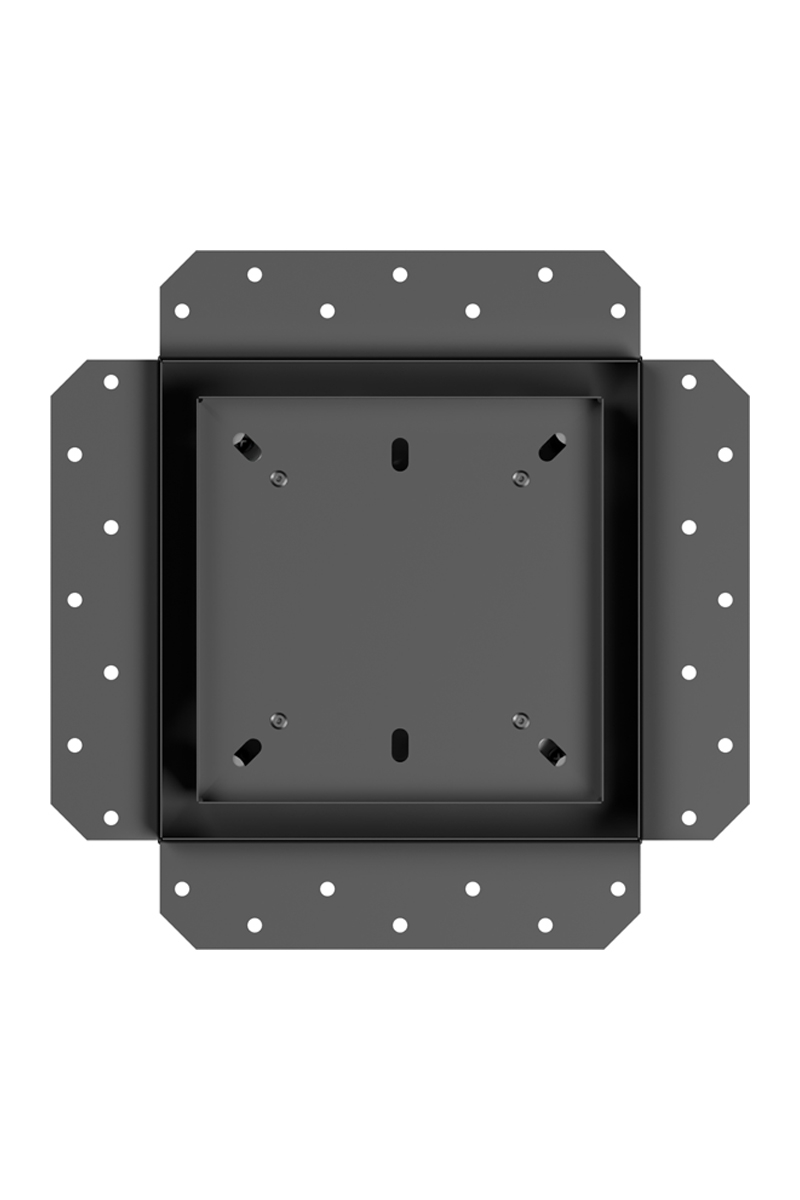

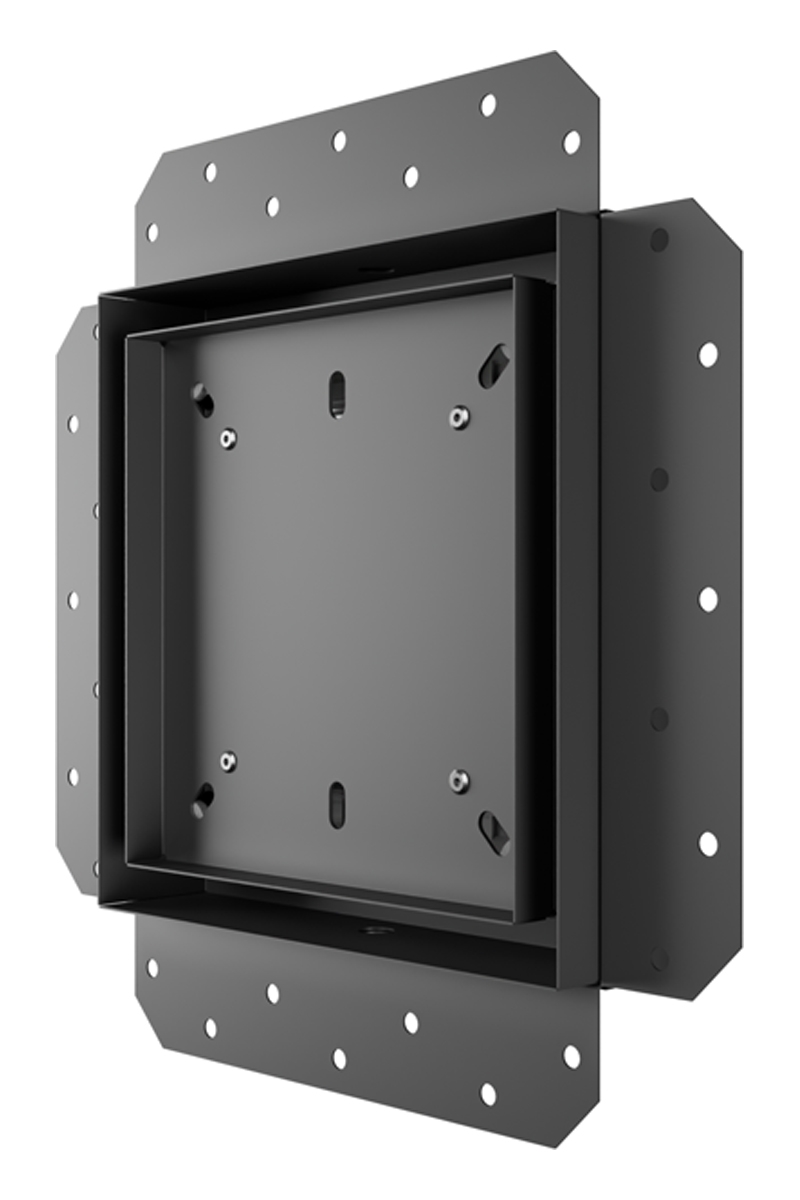

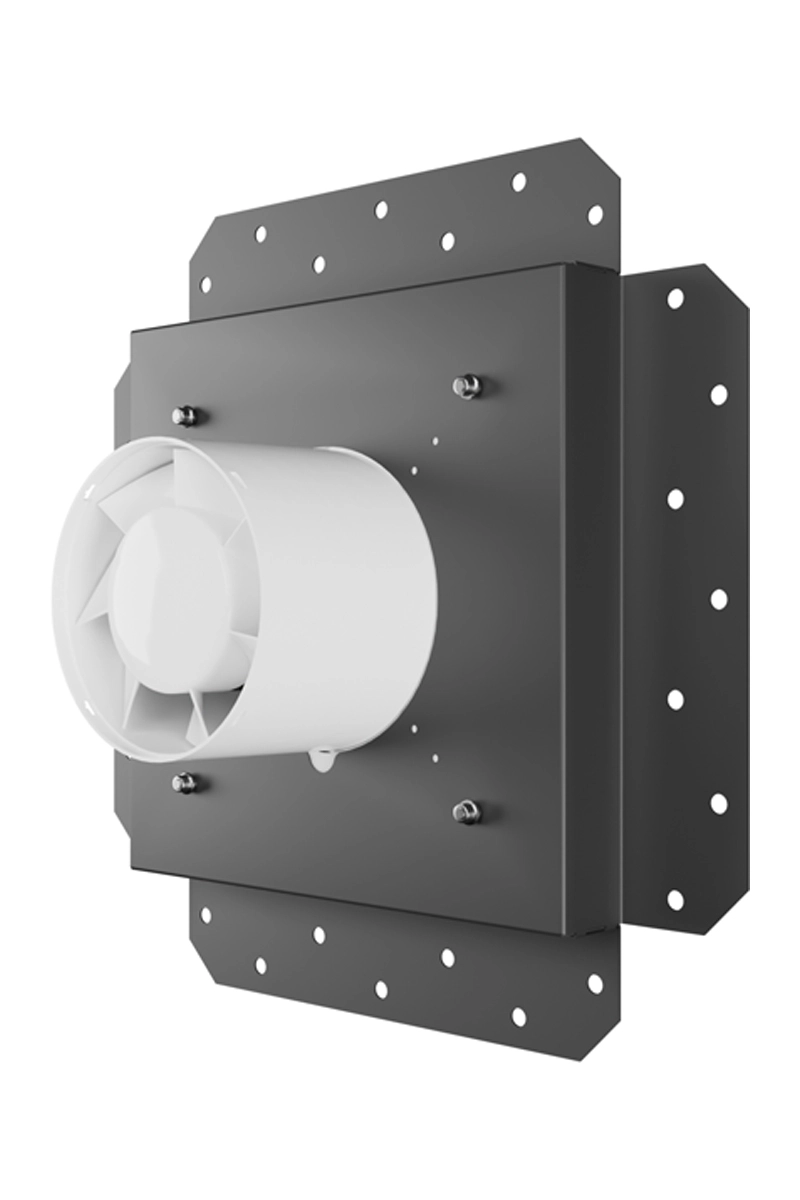

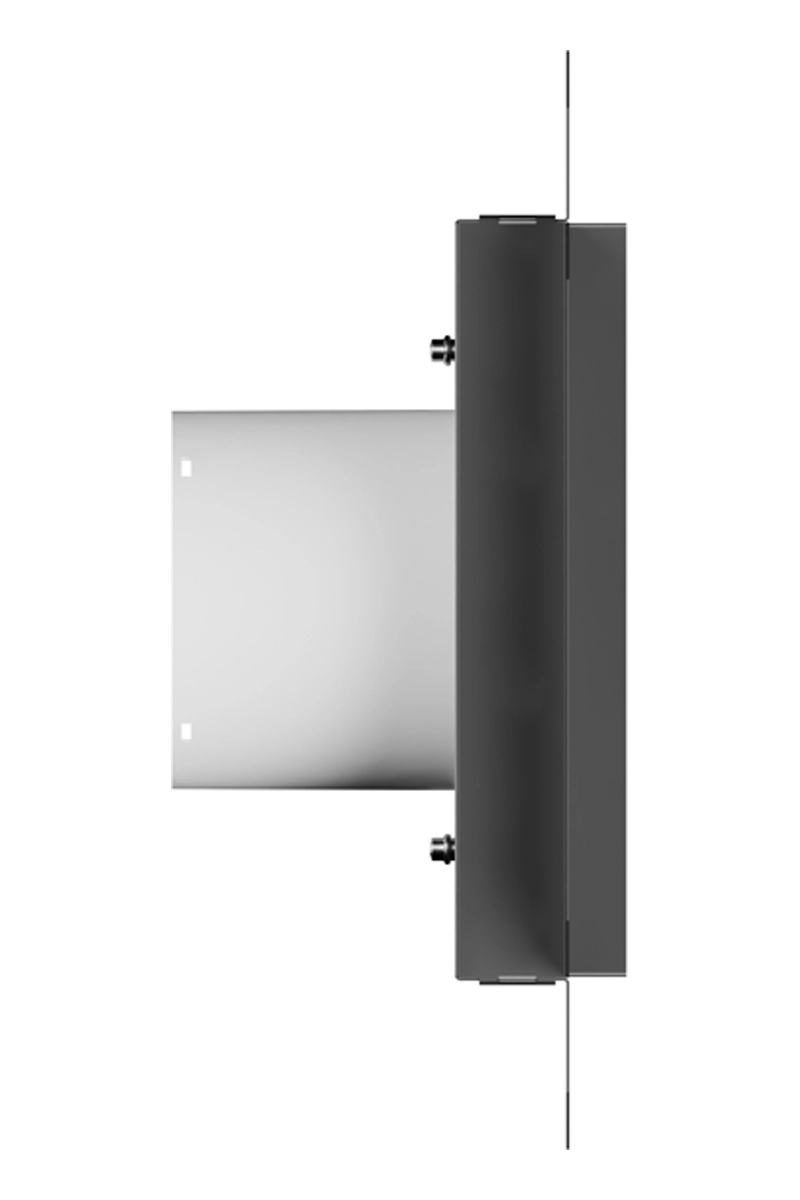

ERA EXCELLENT Ceramo D100 Black Axial Fan for Under-Tile Installation

The EXCELLENT Ceramo 4C BB Matt black fan is mounted into a wall under tiles, stone, or drywall. After finishing, only a 15-millimeter decorative gap remains on the surface, making the device completely hidden.

Magnetic adjustment for cladding thickness

Magnetic adjustment is provided for precise positioning of the panel. This function allows the decorative panel to be adjusted for material thicknesses from 0 to 6 millimeters, which enables the panel to be positioned perfectly level even when the base surface is uneven.

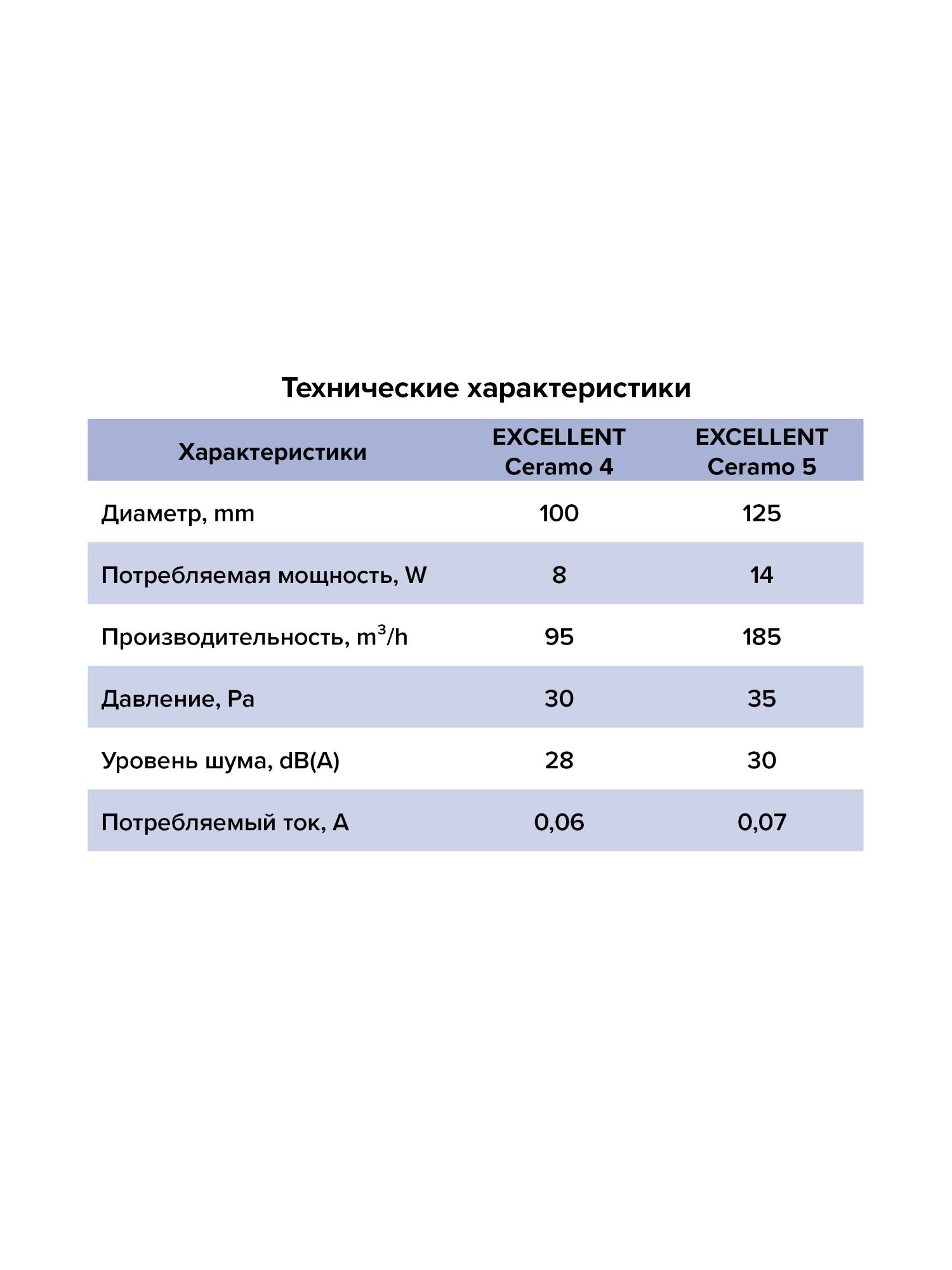

Technical requirements and operation

• Ingress protection rating: IP45;
• Noise level: 28 dB or higher;
• Capacity: 95 m³/h.

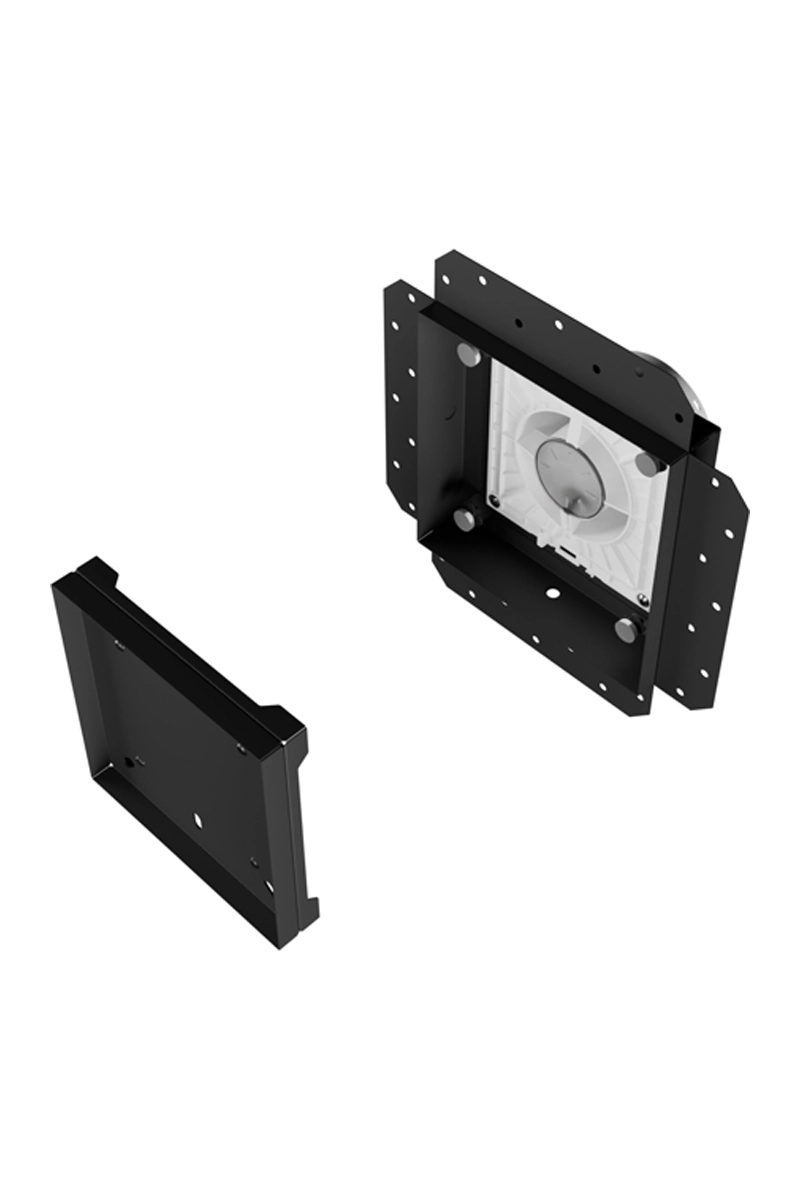

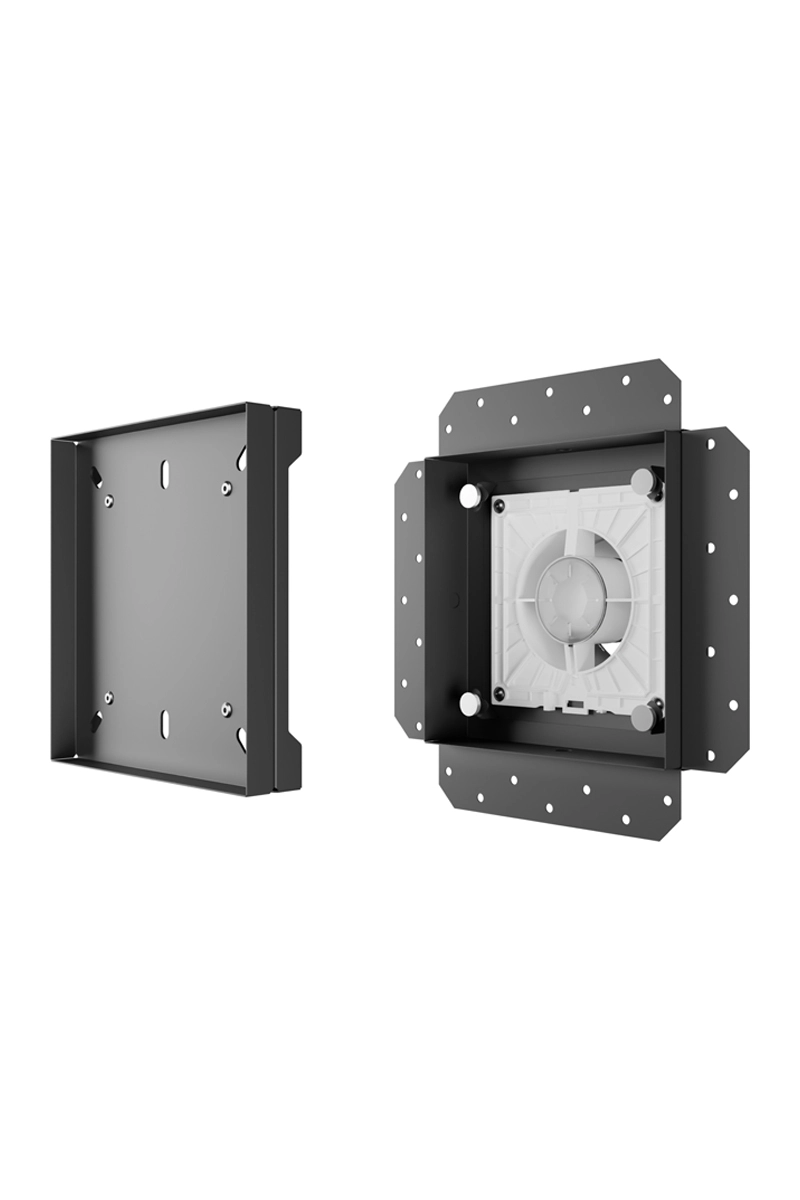

The decorative panel can be removed by hand for fan cleaning.

Installation materials and package contents

The delivery set includes the fan itself, a panel for finishing, adjustable magnetic fasteners, mounting elements, and an installation manual.
